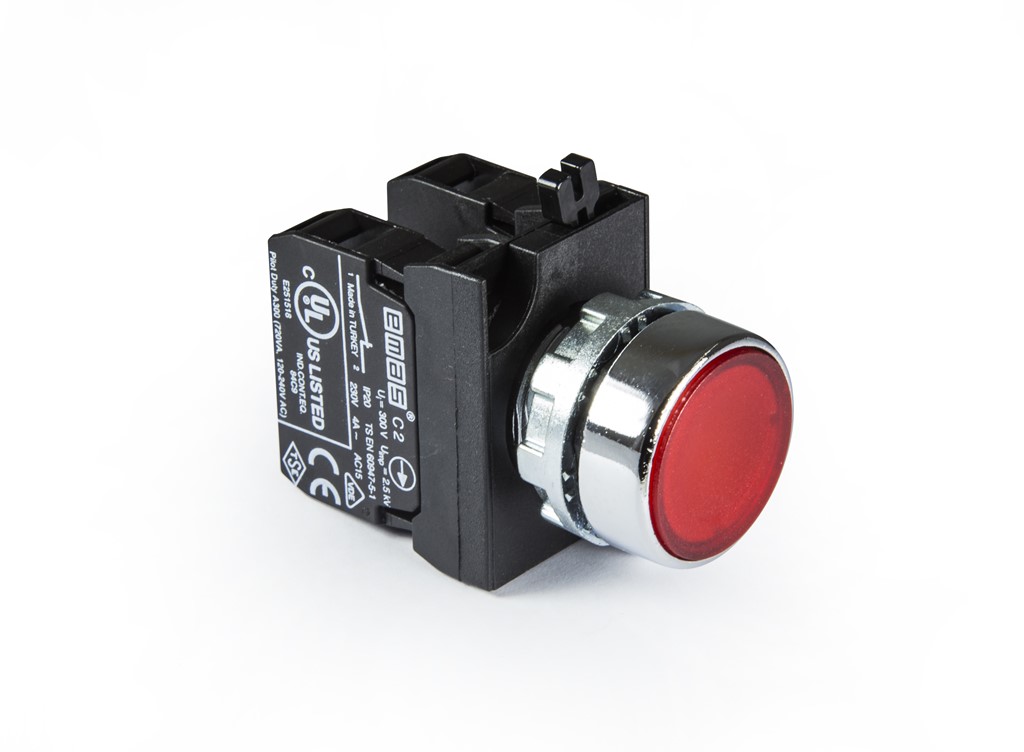

CM Series Metal 2NC Spring Flush Red 22 mm Control Unit

CM Series Metal 2NC Spring Flush Red 22 mm Control Unit

Product Code
CM202DK
Standard
IEC 60947-5-1 TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE EAC SEPRO UKCA
Certificate
(Contact Block)
TSE UL VDE
Downloads
  • Die cast metal construction for harsh environment, corrosion-resistant chromate plating
  • Non-flammable V0 PA6.6 contact blocks
  • Various illumination contact blocks availablity
  • Variety of products for all areas of application
  • IP65 protection from front side
CM Series Metal 2NC Spring Flush Red 22 mm Control Unit
Product
Control Unit
Model
Spring
Type
Flush
Contact
2NC
Color
Red
Dia
22 mm
Current (Ie)
4 A (230V AC)
Usage Category
AC 15
Mechanical Life (Min Qty)
500000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Insulation Voltage (Ui)
300V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-15 / + 65 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1,5 Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Production Time
31.12.1899 00:00:00
Serial
CM Series Metal
