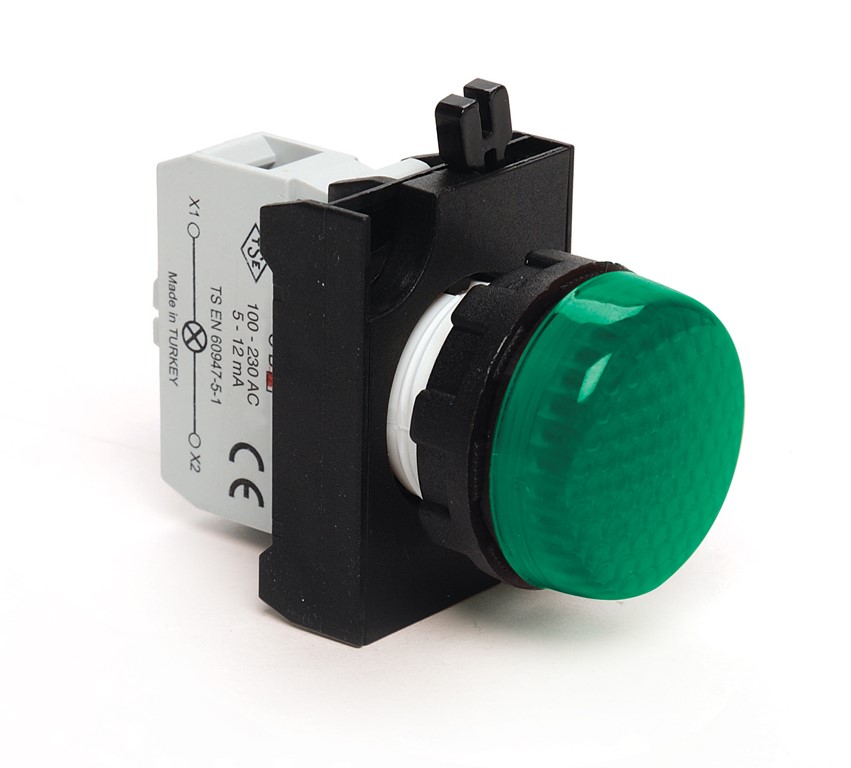

CP Series Plastic with LED 100-230V AC Green 22 mm Pilot

CP Series Plastic with LED 100-230V AC Green 22 mm Pilot

Product Code
CP0Y0XY
Standard
TS EN 60947-5-1
Certificate
CE EAC SEPRO UKCA
Certificate
(Contact Block)
TSE
Downloads
  • Non-flammable V0 PA6.6 contact blocks
  • Various illumination contact blocks availablity
  • Variety of products for all areas of application
  • IP65 protection from front side
CP Series Plastic with LED 100-230V AC Green 22 mm Pilot
Operating Current
5-15 mA
Operational Frequency
50 Hz
Operational Voltage
100-230V AC
Product
Pilot
Color
Green
Illumination
with LED
Dia
22 mm
Power Consumption
<4 VA
Insulation Voltage (Ui)
300V
Operating Temperature
-15 / + 65 °C
Pollution Degree
3
Protection Degree
IP50
Cable Section
1.5-2.5 mm2
Screw Torque
1,5 Nm
Production Time
31.12.1899 00:00:00
Serial
CP Series Plastic
Electrical Life (Min Hour)
10000
