  5. CP Series Plastic 1NC Mushroom 72 mm Turn to Release Red 22 mm Control Unit

Product Details

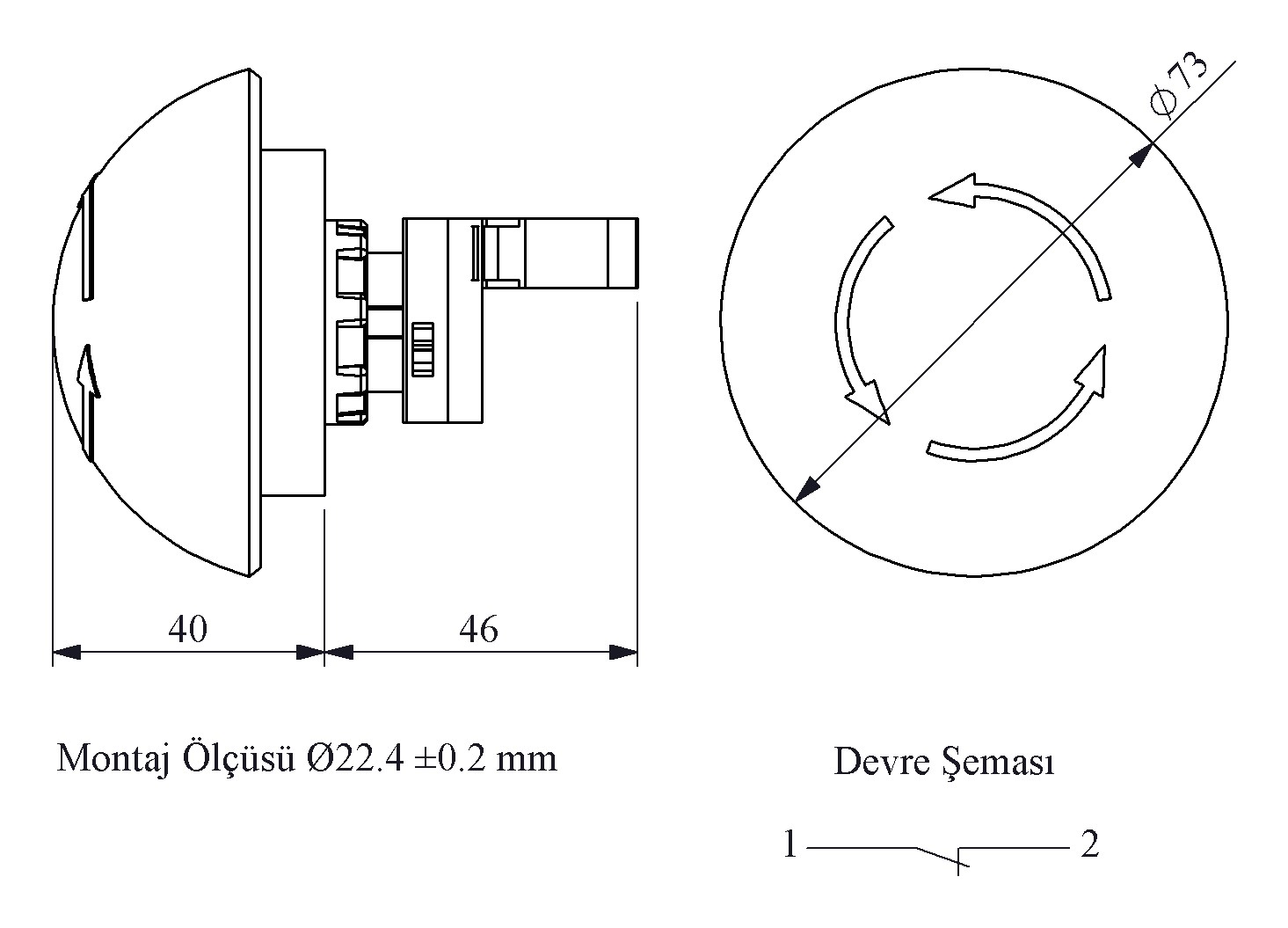

CP Series Plastic 1NC Mushroom 72 mm Turn to Release Red 22 mm Control Unit

Product Code
CP200E72K
Standard
IEC 60947-5-1 TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE EAC SEPRO UKCA
Certificate
(Contact Block)
TSE UL VDE
Downloads
  • Non-flammable V0 PA6.6 contact blocks
  • Various illumination contact blocks availablity
  • Variety of products for all areas of application
  • IP65 protection from front side
Product
Control Unit
Model
Mushroom
Type
Turn to Release
Contact
1NC
Color
Red
Dia
22 mm
Head Dia
72 mm
Current (Ie)
4 A (230V AC)
Usage Category
AC 15
Mechanical Life (Min Qty)
500000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 1200 Elec. 1200
Insulation Voltage (Ui)
300V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-15 / + 65 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1,5 Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Production Time
31.12.1899 00:00:00
Serial
CP Series Plastic
