Product Details

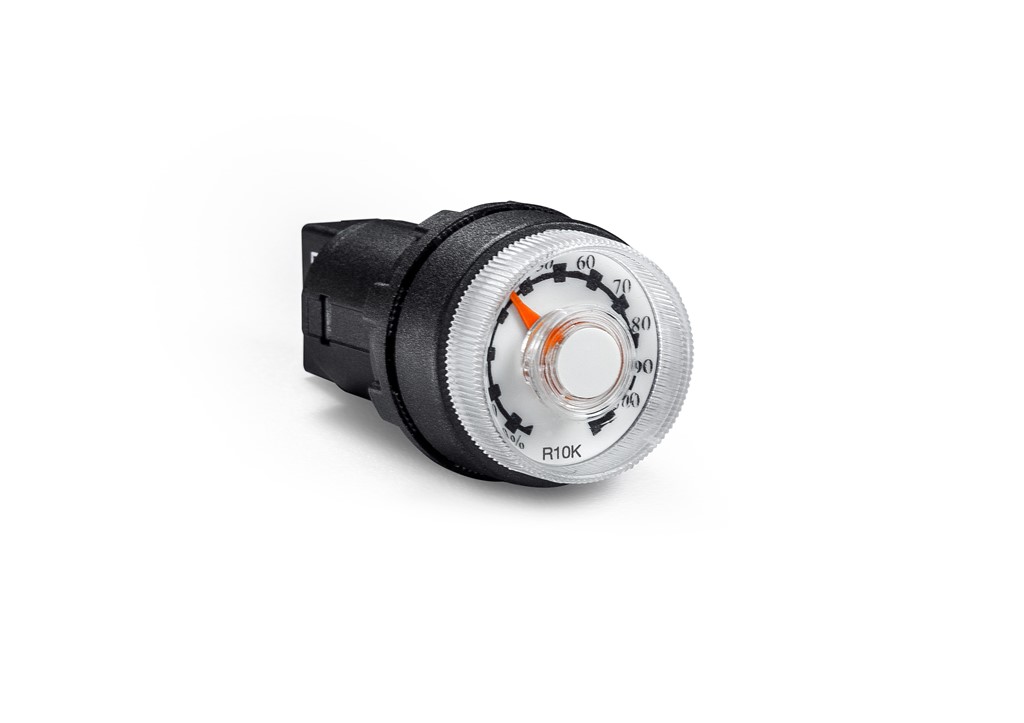

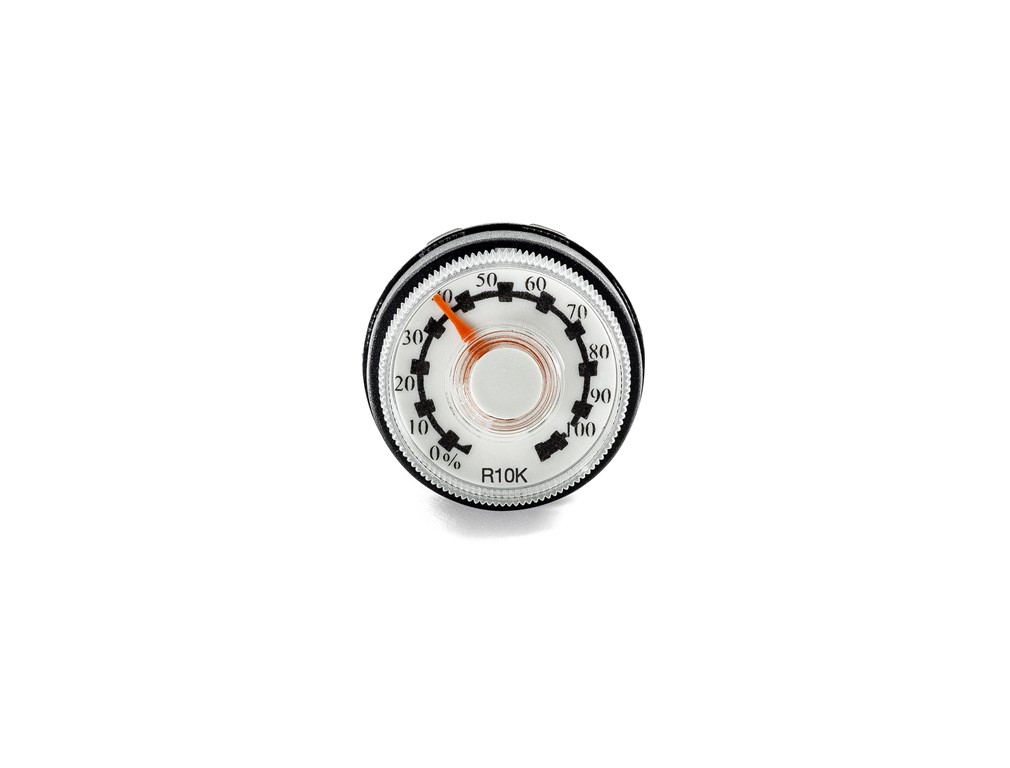

CP Series Plastic 10 kΩ 22 mm Potentiometer CP Series Plastic 10 kΩ 22 mm Potentiometer

CP Series Plastic 10 kΩ 22 mm Potentiometer

Product Code
CPPR10K
Standard
IEC 60393-1
Certificate
CE UKCA
Downloads
  • Non-flammable V0 PA6.6
  • Variety of impedances
  • IP65 protection from front side
CP Series Plastic 10 kΩ 22 mm Potentiometer
CP Series Plastic 10 kΩ 22 mm Potentiometer
Operating Current
3-5 mA
Product
Potentiometer
Dia
22 mm
Power Consumption
1W
Operating Temperature
-15 / + 65 °C
Pollution Degree
3
Protection Degree
IP65
Cable Section
1.5-2.5 mm2
Screw Torque
1,5 Nm
Maximum Current
12,20 mA
Maximum Power
1,5 W (70ºC)
Resistive Value
10 kΩ
Spin Angle
270°
Production Time
31.12.1899 00:00:00
Serial
CP Series Plastic
