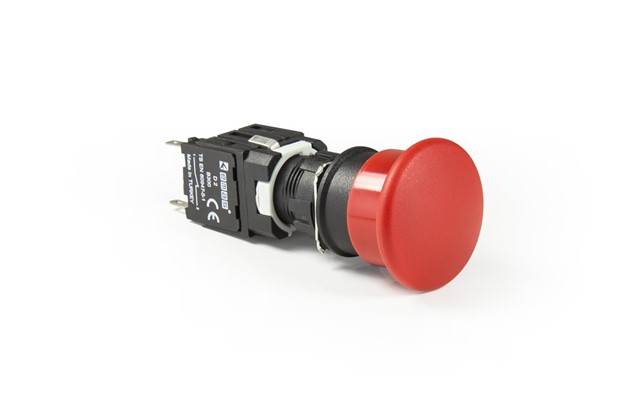

D Series Plastic 1NO Spring Round 30 mm Mushroom Red 16 mm Control Unit

D Series Plastic 1NO Spring Round 30 mm Mushroom Red 16 mm Control Unit

Product Code
D100YM30K
Standard
IEC 60947-5-1 TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE EAC SEPRO UKCA
Certificate
(Contact Block)
TSE
Downloads
  • Non-flammable V0 PA6.6 contact blocks
  • Various illumination contact blocks availablity
  • Variety of products for all areas of application
  • Ease of use in limited spaces
D Series Plastic 1NO Spring Round 30 mm Mushroom Red 16 mm Control Unit
Product
Control Unit
Model
Spring
Type
Mushroom
Contact
1NO
Color
Red
Dia
16 mm
Head Dia
30 mm
Head Type
Round
Current (Ie)
1,5 A (240V AC)
Usage Category
AC 15
Mechanical Life (Min Qty)
500000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Insulation Voltage (Ui)
250V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP50
Contact Material
AgNi
Cable Section
Terminal 2,8x0,5
Short Circuit Breaking Capacity (Ics)
1 kA
Production Time
31.12.1899 00:00:00
Serial
D Series Plastic
