Product Details



D Series Plastic 2NO Spring Square Flush Green 16 mm Control Unit

Product Code
D101KDY
Standard
IEC 60947-5-1 TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE EAC SEPRO UKCA
Certificate
(Contact Block)
TSE
Downloads
  • Non-flammable V0 PA6.6 contact blocks
  • Various illumination contact blocks availablity
  • Variety of products for all areas of application
  • Ease of use in limited spaces
Product
Control Unit
Model
Spring
Type
Flush
Contact
2NO
Color
Green
Dia
16 mm
Head Type
Square
Current (Ie)
1,5 A (240V AC)
Usage Category
AC 15
Mechanical Life (Min Qty)
500000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Insulation Voltage (Ui)
250V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP50
Contact Material
AgNi

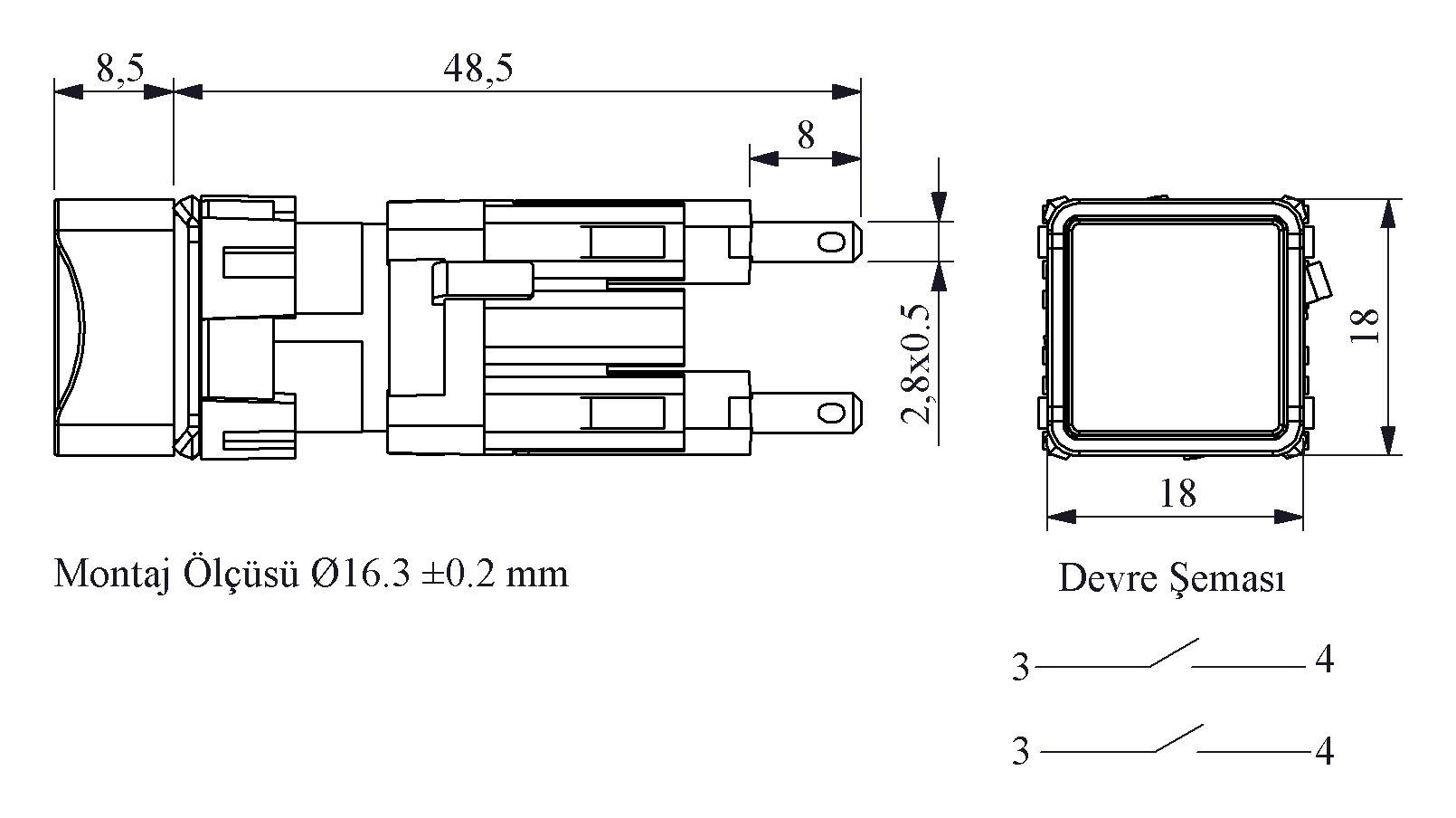

Cable Section
Terminal 2,8x0,5
Short Circuit Breaking Capacity (Ics)
1 kA
Production Time
31.12.1899 00:00:00
Serial
D Series Plastic
