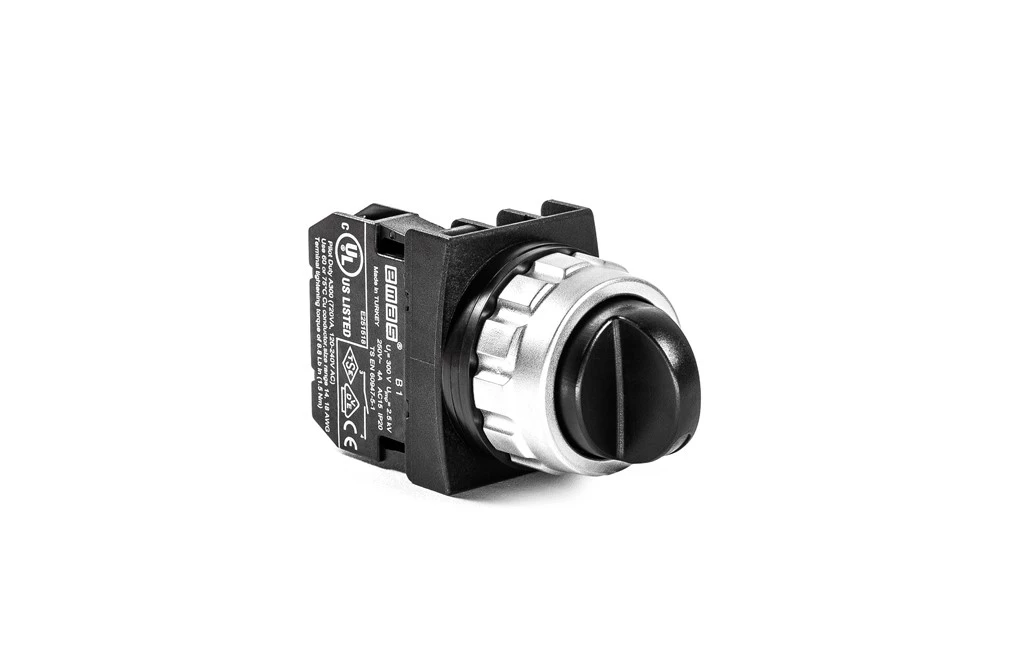

H Series Plastic 1NO (0-I) 60° Selector Stay Put 30 mm Control Unit

H Series Plastic 1NO (0-I) 60° Selector Stay Put 30 mm Control Unit

Product Code
H100S20
Standard
IEC 60947-5-1 TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE EAC UKCA
Certificate
(Contact Block)
TSE UL VDE
Downloads
  • Non-flammable V0 PA6.6 contact blocks
  • Various illumination contact blocks availablity
  • Variety of products for all areas of application
H Series Plastic 1NO (0-I) 60° Selector Stay Put 30 mm Control Unit
Product
Control Unit
Model
Selector
Type
Stay Put
Label/Position
(0-I) 60°
Contact
1NO
Dia
30 mm
Current (Ie)
4 A (250V AC)
Usage Category
AC 15
Mechanical Life (Min Qty)
500000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 1200 Elec. 1200
Insulation Voltage (Ui)
300V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP50
Contact Material
AgNi
Cable Section
1.5-2.5 mm²
Screw Torque
1,5 Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Production Time
31.12.1899 00:00:00
Serial
H Series Plastic
