Product Details

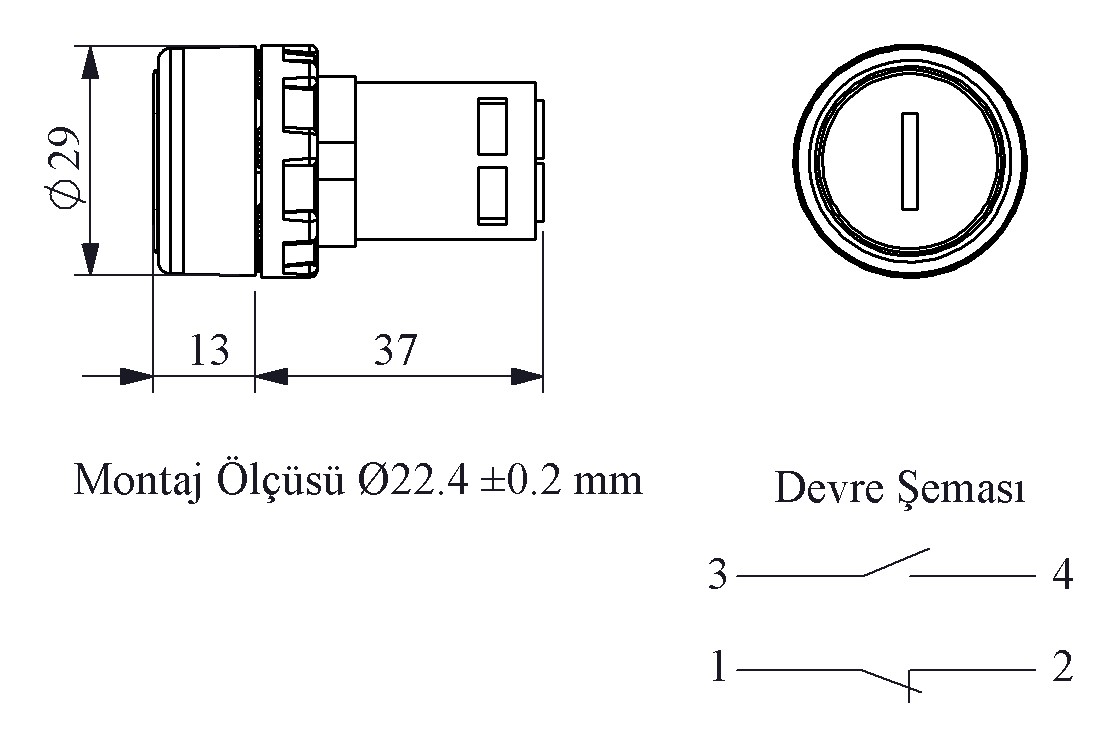

MB Series Plastic 1NO+1NC Spring Flush Green (I) Marked 22 mm Control Unit
Product Code
MB102DY1
Standard
IEC 60947-5-1
TS EN 60947-5-1
Certificate
Downloads
Print
(I) Marked
Product
Control Unit
Model
Spring
Type
Flush
Contact
1NO+1NC
Color
Green
Dia
22 mm
Current (Ie)
3 A (240V AC)
Usage Category
AC 15
Mechanical Life (Min Qty)
300000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Insulation Voltage (Ui)
250V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ MİN. (500 V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP50
Contact Material
AgNi
Cable Section
1.5-2.5 mm²
Screw Torque
1,5 Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Production Time
31.12.1899 00:00:00
Serial
MB Series Plastic
