Product Details

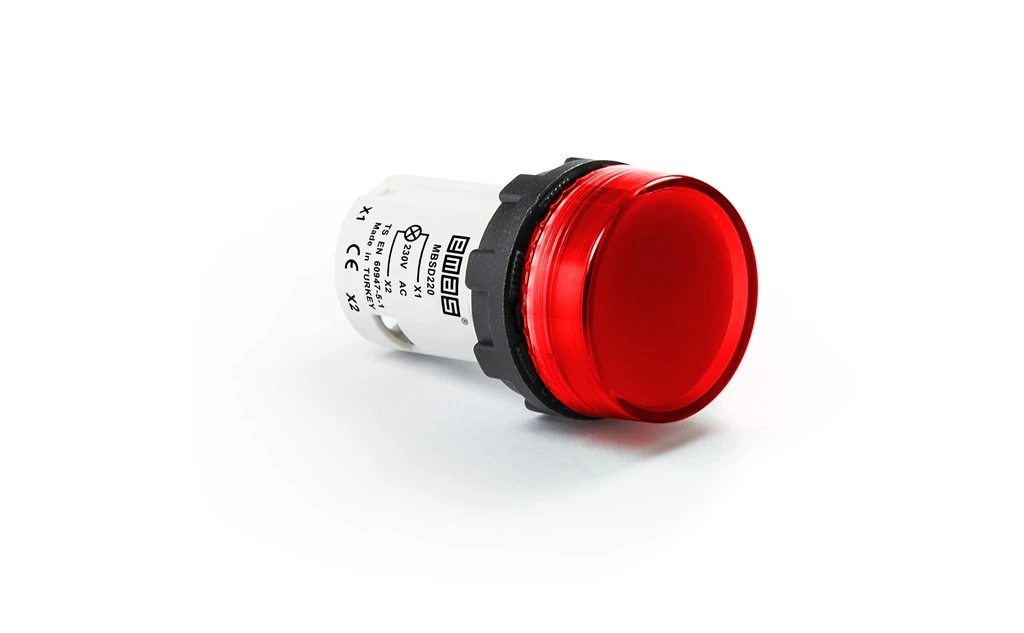

MB Series Plastic with LED 230V AC Red 22 mm Pilot

MB Series Plastic with LED 230V AC Red 22 mm Pilot

Product Code
MBSD220K
Certificate
CE EAC UKCA
Downloads
  • Non-flammable V0 PA6.6 contact blocks
  • Monoblock strong body
  • Finger safe protection
MB Series Plastic with LED 230V AC Red 22 mm Pilot
Bulb Type
Led
Operating Current
15 mA
Operational Frequency
50 Hz
Operational Voltage
230V AC
Product
Pilot
Color
Red
Illumination
with LED
Dia
22 mm
Power Consumption
<4VA
Insulation Voltage (Ui)
250 V
Operating Temperature
-15 / + 70 °C
Protection Degree
IP50
Cable Section
1.5-2.5 mm²
Screw Torque
1,5 Nm
Production Time
31.12.1899 00:00:00
Serial
MB Series Plastic
Electrical Life (Min Hour)
10000
