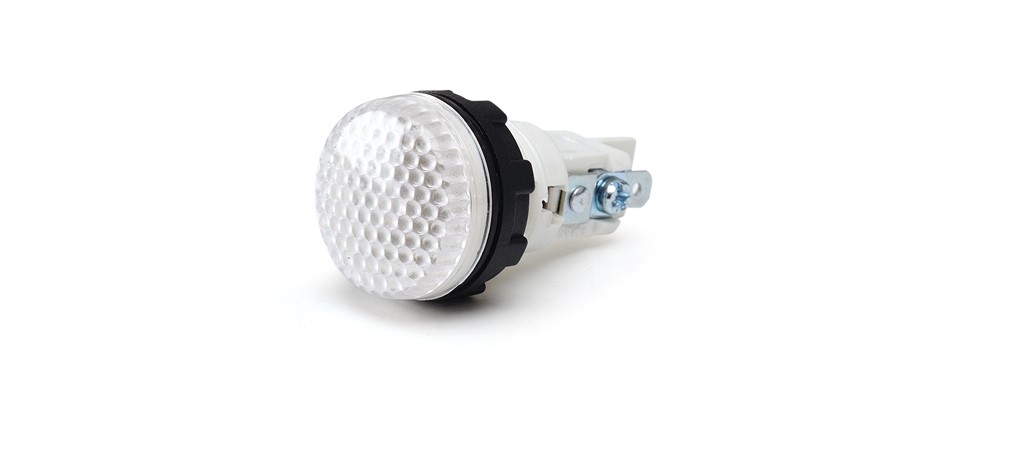

S Series Plastic 230V AC White 22 mm Pilot S Series Plastic 230V AC White 22 mm Pilot

S Series Plastic 230V AC White 22 mm Pilot

Product Code
S224NB
Certificate
CE UKCA
Downloads
  • Ø10,14, 22 mm round types
  • Different voltage variety
  • Connection facility with different terminal types
S Series Plastic 230V AC White 22 mm Pilot
S Series Plastic 230V AC White 22 mm Pilot
Bulb Type
Neon
Operating Current
4 mA
Operational Frequency
50 Hz
Operational Voltage
230V AC
Product
Pilot
Color
White
Dia
22 mm
Power Consumption
0.6 W
Insulation Voltage (Ui)
250 V
Operating Temperature
-15 / + 70 °C
Protection Degree
IP40
Cable Section
1.5-2.5 mm²
Screw Torque
1,5 Nm
Production Time
31.12.1899 00:00:00
Serial
S Series Plastic
Electrical Life (Min Hour)
50000
