Product Details

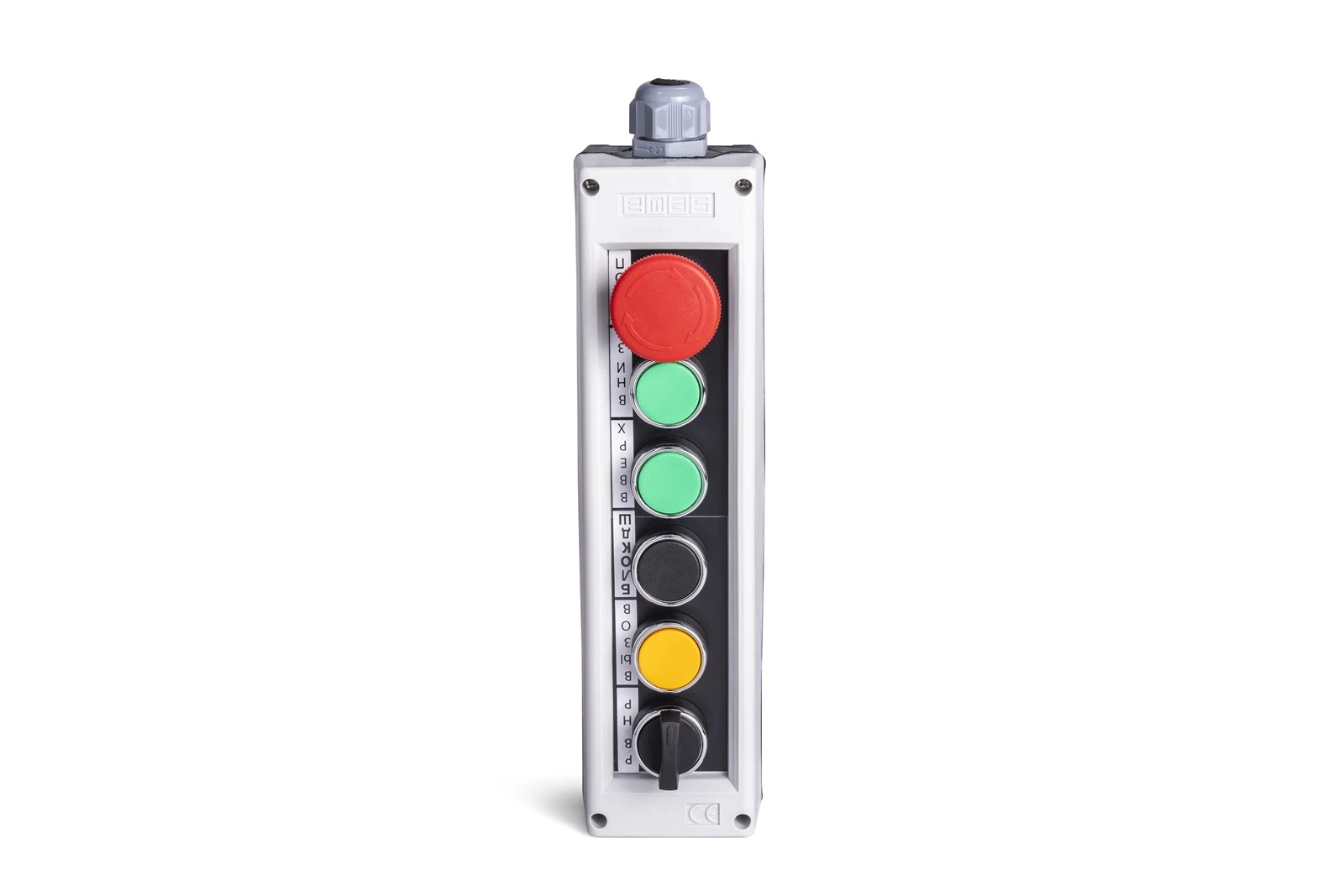

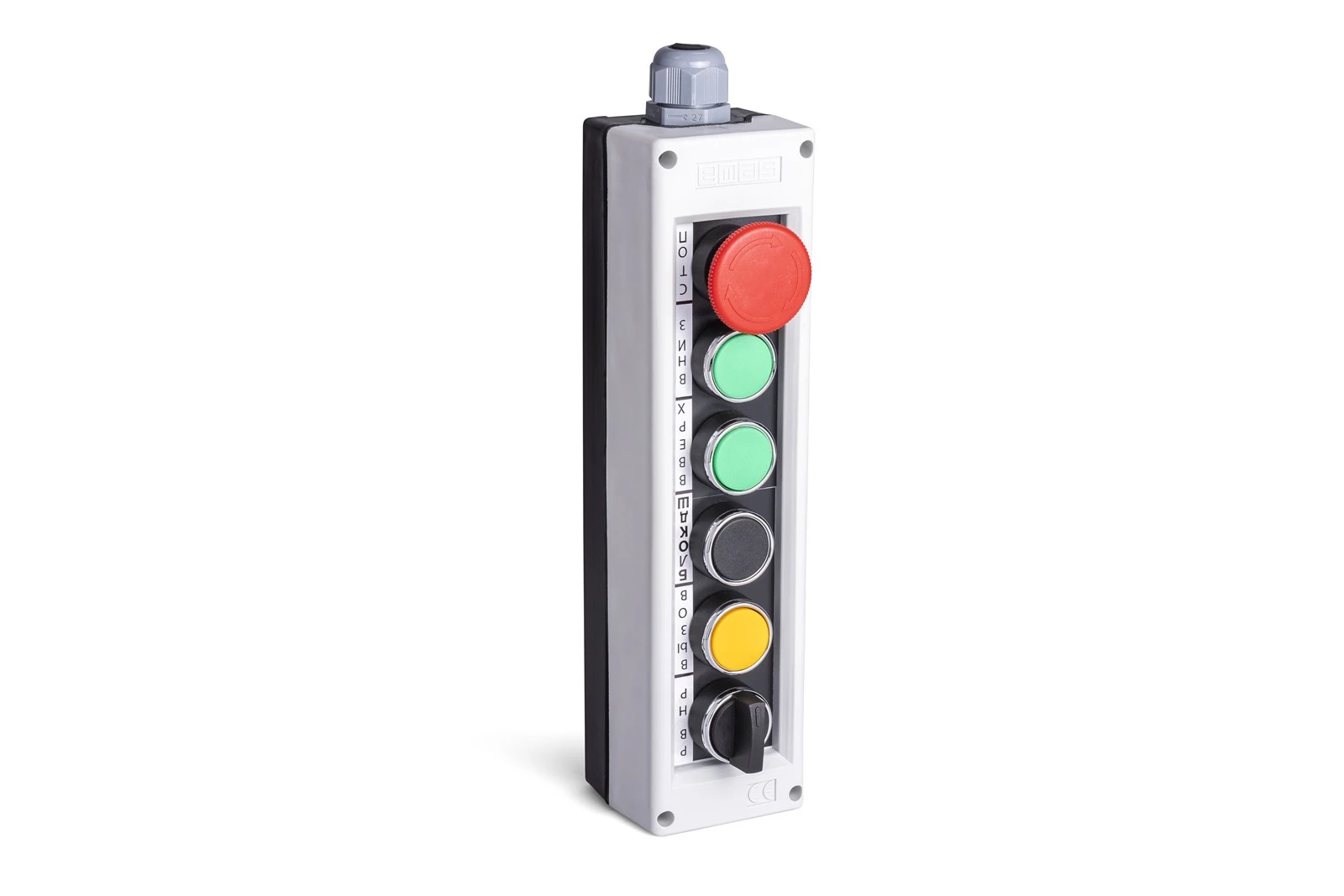

PK Series Plastic 6 Holes MB200E + 2*MB100DY + MB100DH + MB100DS + MB102S20 Grey-Black Control Box PK Series Plastic 6 Holes MB200E + 2*MB100DY + MB100DH + MB100DS + MB102S20 Grey-Black Control Box

PK Series Plastic 6 Holes MB200E + 2*MB100DY + MB100DH + MB100DS + MB102S20 Grey-Black Control Box

Product Code
PK6SB1
Standard
TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE EAC SEPRO
Downloads
  • Suitable for Ø22 mm buttons
  • Strong resistance against mechanical strokes
  • IP65 with suitable buttons
  • Body types in different dimensions
PK Series Plastic 6 Holes MB200E + 2*MB100DY + MB100DH + MB100DS + MB102S20 Grey-Black Control Box
PK Series Plastic 6 Holes MB200E + 2*MB100DY + MB100DH + MB100DS + MB102S20 Grey-Black Control Box
Product
Control Box
Feature
Rakorlu
Color
Grey-Black
Current (Ie)
4A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP50
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1.5Nm
Short Circuit Breaking Capacity (Ics)
1kA
Serial
PK Series Plastic
Hole Qty
6 Holes
Ingredients
MB200E + 2*MB100DY + MB100DH + MB100DS + MB102S20
