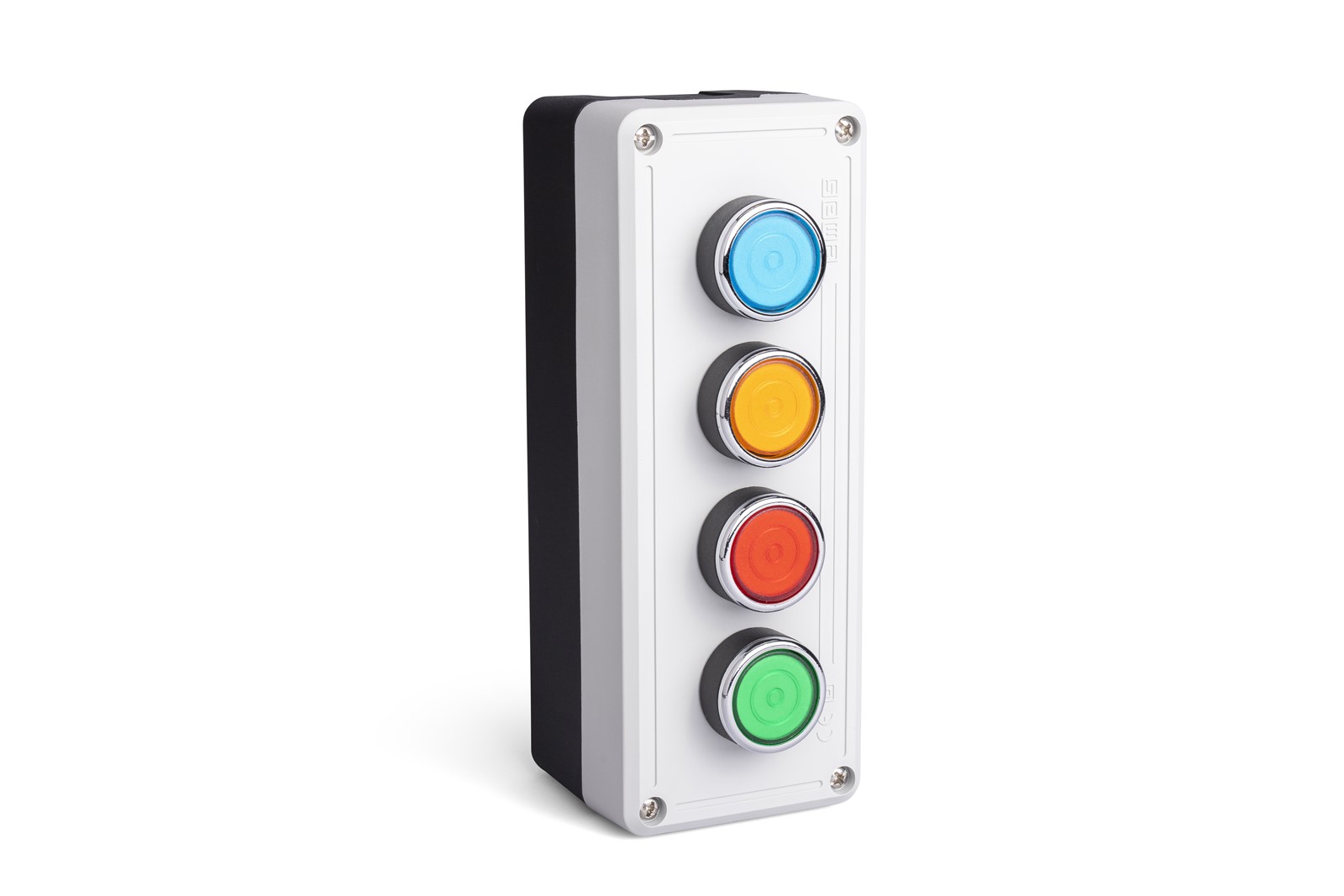

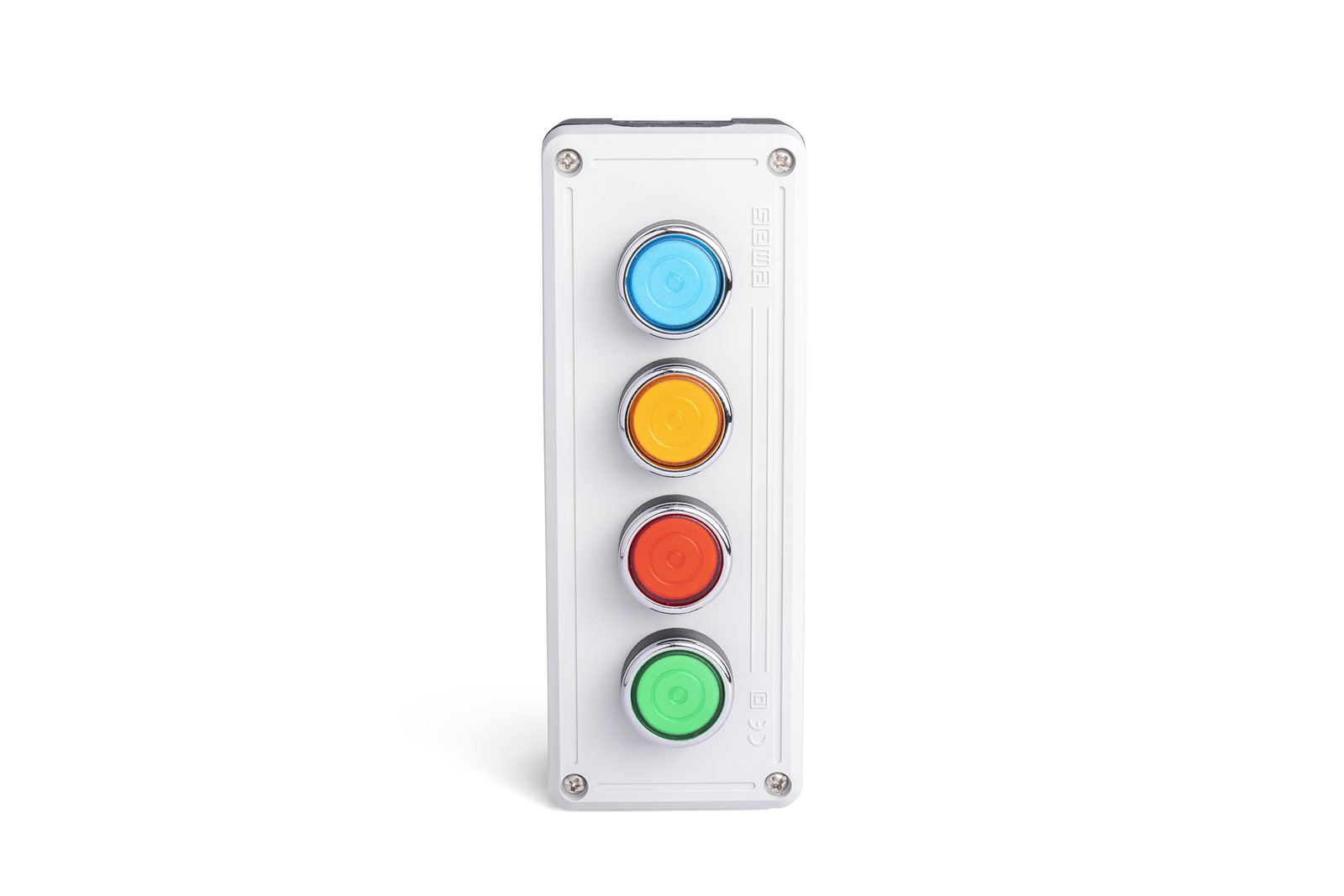

  5. PY Series Plastic 4 Holes B100FY + B100FK + B100FS + B100FM Grey-Black Control Box

Product Details



PY Series Plastic 4 Holes B100FY + B100FK + B100FS + B100FM Grey-Black Control Box PY Series Plastic 4 Holes B100FY + B100FK + B100FS + B100FM Grey-Black Control Box

PY Series Plastic 4 Holes B100FY + B100FK + B100FS + B100FM Grey-Black Control Box

Product Code
PY4451
Standard
TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE SEPRO
Downloads
  • Suitable for Ø22 mm buttons
  • Strong resistance against mechanical strokes
  • IP65 with suitable buttons
  • Body types in different dimensions
PY Series Plastic 4 Holes B100FY + B100FK + B100FS + B100FM Grey-Black Control Box
PY Series Plastic 4 Holes B100FY + B100FK + B100FS + B100FM Grey-Black Control Box
Product
Control Box
Color
Grey-Black
Current (Ie)
4A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP50
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1.5Nm
Short Circuit Breaking Capacity (Ics)
1kA
Serial
PY Series Plastic
Hole Qty
4 Holes
Ingredients
B100FY + B100FK + B100FS + B100FM
