Product Details

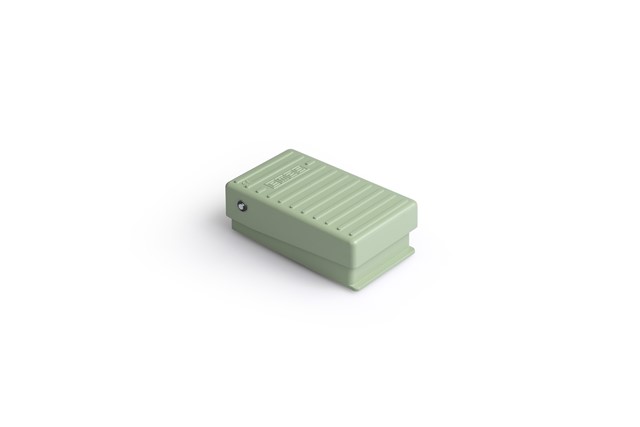

PDA Series 1NO Green Metal Foot Switch
Product Code
PDA1
Standard
IEC 60947-5-1
TS EN 60947-5-1
Certificate
Downloads
Carton Box pieces (Qty)
1
Product
Foot Switch
Contact
1NO
Color
Green
Current (Ie)
4 A (220V AC)
Usage Category
AC 15
Mechanical Life (Min Qty)
500000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 1800 Elec. 1200
Insulation Voltage (Ui)
300V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP30
Contact Material
AgNi
Cable Section
1.5-2.5 mm²
Screw Torque
1.5Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Body Material
Metal
Production Time
31.12.1899 00:00:00
Serial
PDA Series
