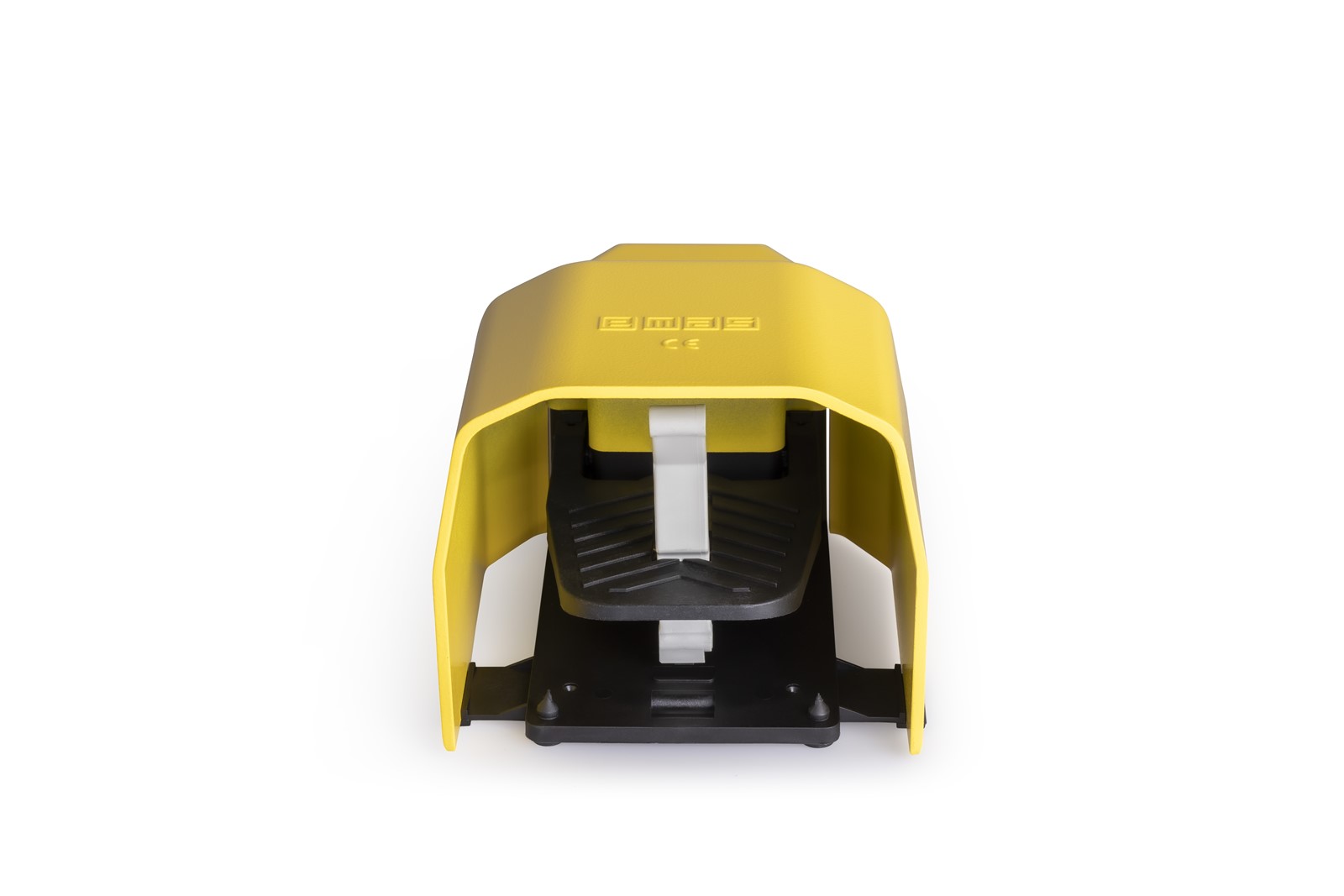

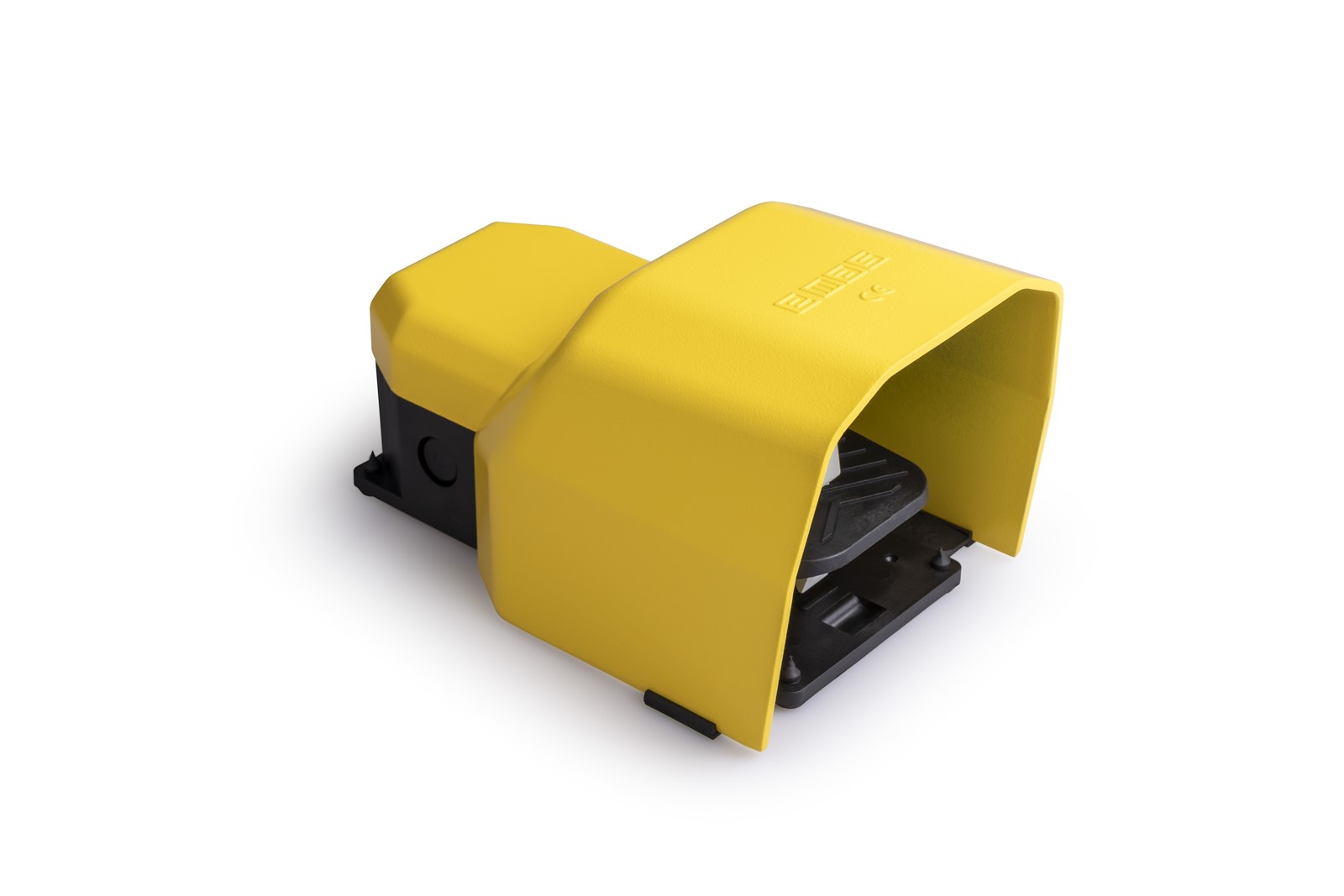

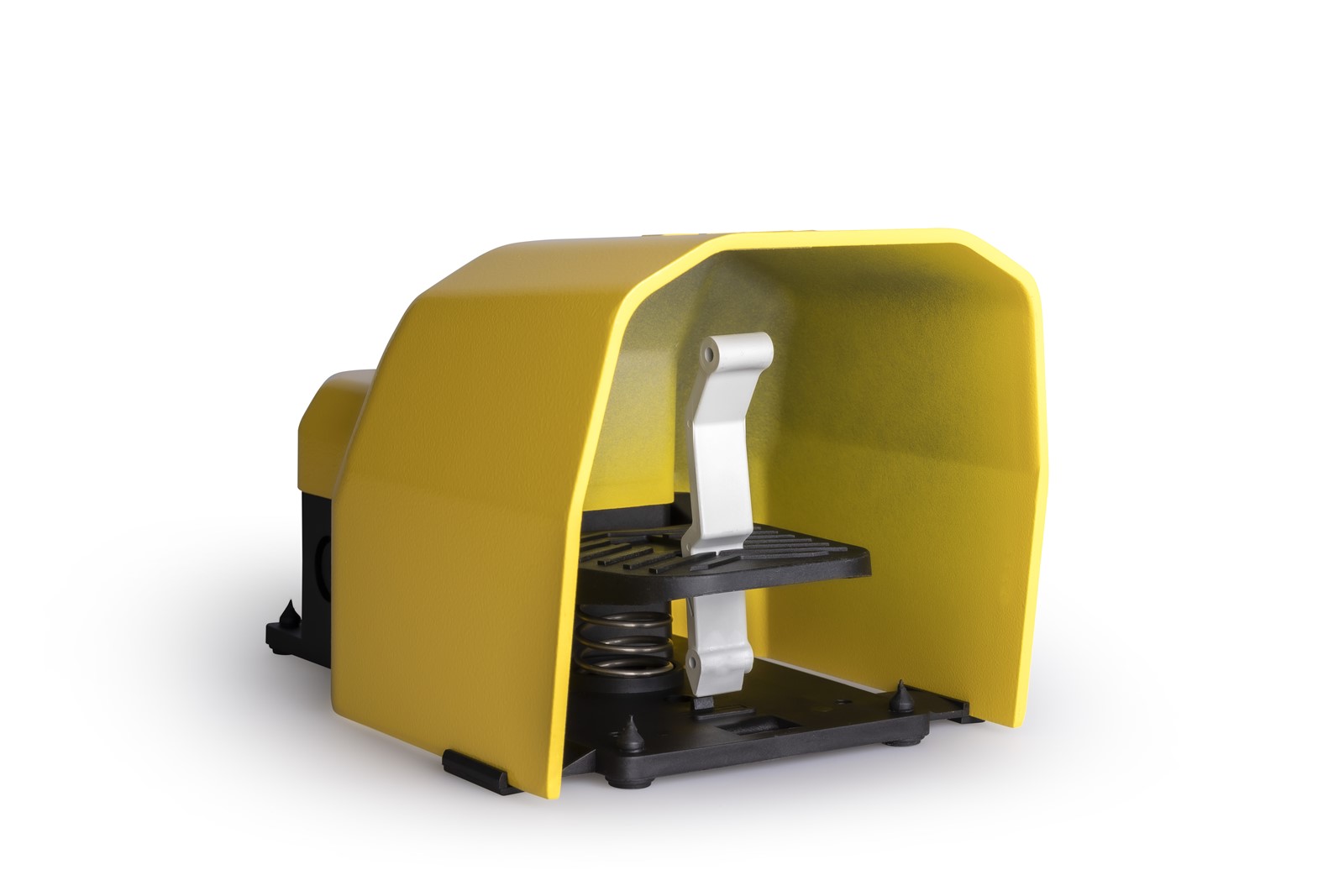

  5. PDK Series Metal Protection 1NO+1NC Single Yellow Plastic Foot Switch

Product Details



PDK Series Metal Protection 1NO+1NC Single Yellow Plastic Foot Switch PDK Series Metal Protection 1NO+1NC Single Yellow Plastic Foot Switch PDK Series Metal Protection 1NO+1NC Single Yellow Plastic Foot Switch

PDK Series Metal Protection 1NO+1NC Single Yellow Plastic Foot Switch

Product Code
PDKS11BX10
Standard
TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE EAC SEPRO UKCA
Certificate
(Contact Block)
UL
Downloads
  • Plastic or Metal options
  • Single and Double Speed
  • Yellow
  • Grey and orange color options
  • with Latching option
PDK Series Metal Protection 1NO+1NC Single Yellow Plastic Foot Switch
PDK Series Metal Protection 1NO+1NC Single Yellow Plastic Foot Switch
PDK Series Metal Protection 1NO+1NC Single Yellow Plastic Foot Switch
Carton Box pieces (Qty)
1
Product
Foot Switch
Feature
Single
Contact
1NO+1NC
Color
Yellow
Protection
Metal Protection
Current (Ie)
3 A (240V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 1800 Elec. 1200
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1.5Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Body Material
Plastic
Production Time
31.12.1899 00:00:00
Serial
PDK Series
