  5. L22 Plastic Body 2 mm Metal Spike Spring Lever Slow Action 1NO+1NC Limit Switch

Product Details

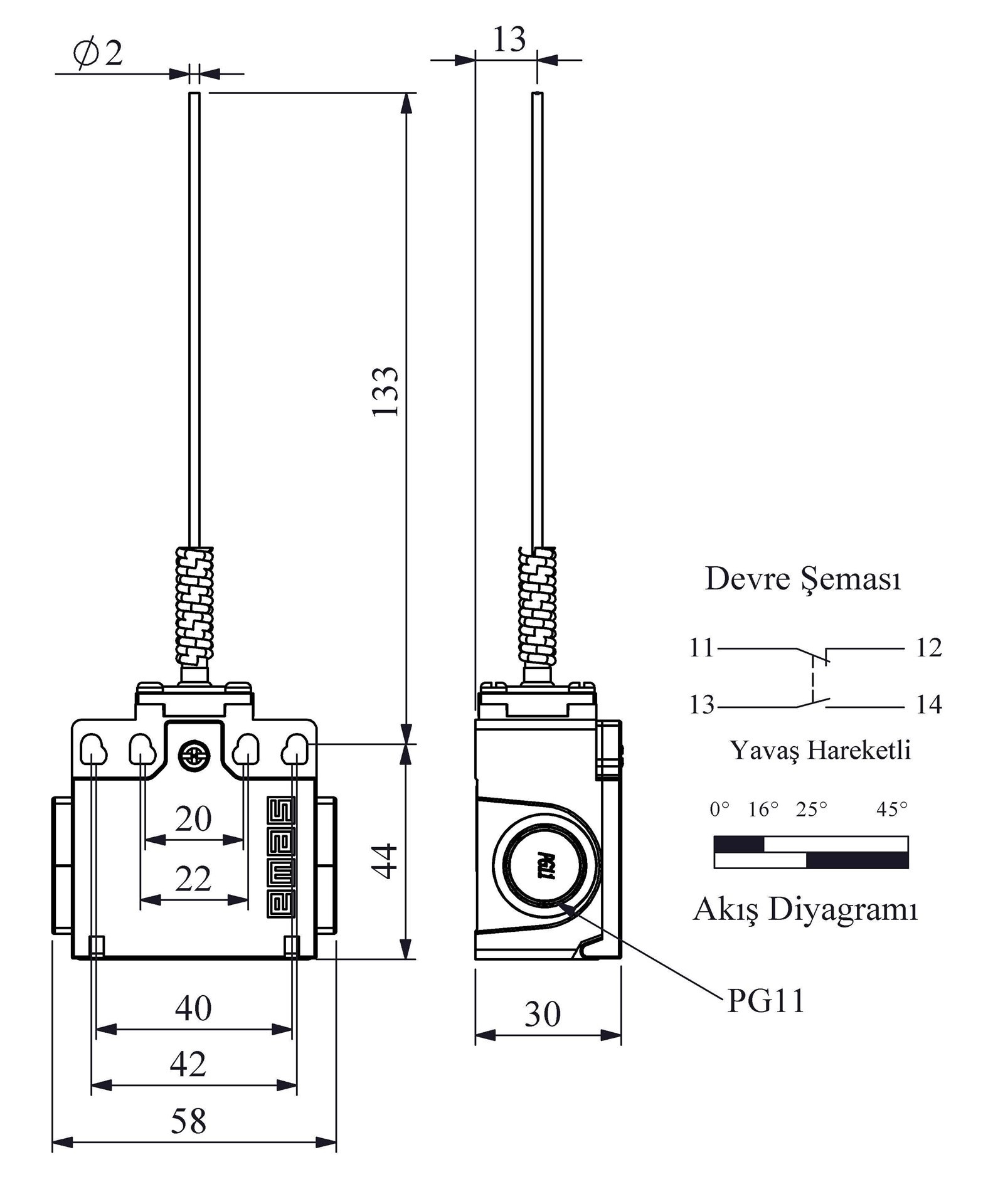

L22 Plastic Body 2 mm Metal Spike Spring Lever Slow Action 1NO+1NC Limit Switch

Product Code
L22M23SOM101
Standard
TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE UKCA
Downloads
  • Plastic Body and Cover
  • 2 side PG11 glands
  • Various actuator options with wide sensitive contact block alternatives for all kind of applications
Product
Limit Switch
Contact
1NO+1NC
Actuator
Spring Lever
Actuator Dia
2 mm
Current (Ie)
3 A (240V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
10000000
Electrical Life (Min Qty)
1000000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1800
Insulation Voltage (Ui)
300V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-25 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1-2.5 mm2
Screw Torque
1.5Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Production Time
30.05.2022 00:00:00
Serial
L22 Plastic Body
Contact Action
Slow Action
Actuator Material
Metal Spike
