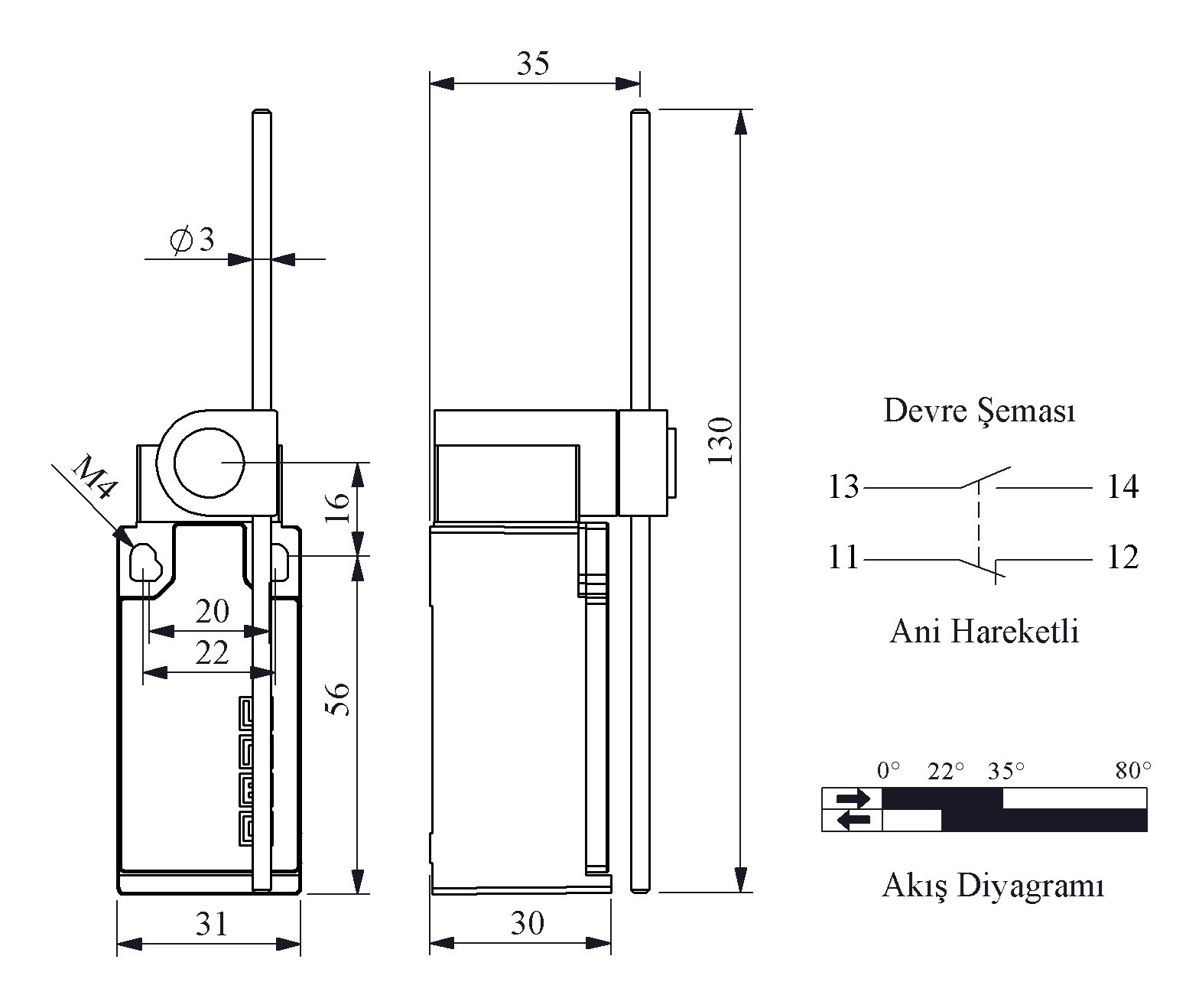

  5. L5 Plastic Body 3 mm Fiber Rod Lever Snap Action 1NO+1NC Limit Switch

Product Details



L5 Plastic Body 3 mm Fiber Rod Lever Snap Action 1NO+1NC Limit Switch L5 Plastic Body 3 mm Fiber Rod Lever Snap Action 1NO+1NC Limit Switch

L5 Plastic Body 3 mm Fiber Rod Lever Snap Action 1NO+1NC Limit Switch

Product Code
L5K13REF121
Standard
TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE EAC SEPRO TSE UKCA UL VDE
Certificate
(Contact Block)
TSE UL
Downloads
  • Plastic Body and Cover
  • 1 cable entry suitable for PG13.5 or M20x1.5 optional gland
  • Changeable contact block
  • Different actuator options
L5 Plastic Body 3 mm Fiber Rod Lever Snap Action 1NO+1NC Limit Switch
L5 Plastic Body 3 mm Fiber Rod Lever Snap Action 1NO+1NC Limit Switch
Product
Limit Switch
Serial
L5 Plastic Body
Actuator Dia
3 mm
Actuator Material
Fiber
Actuator
Rod Lever
Contact Action
Snap Action
Contact
1NO+1NC
Current (Ie)
3 A (240V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
10000000
Electrical Life (Min Qty)
1000000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1800
Insulation Voltage (Ui)
300V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-25 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1-2.5 mm2
Screw Torque
1.5Nm
1 kA
