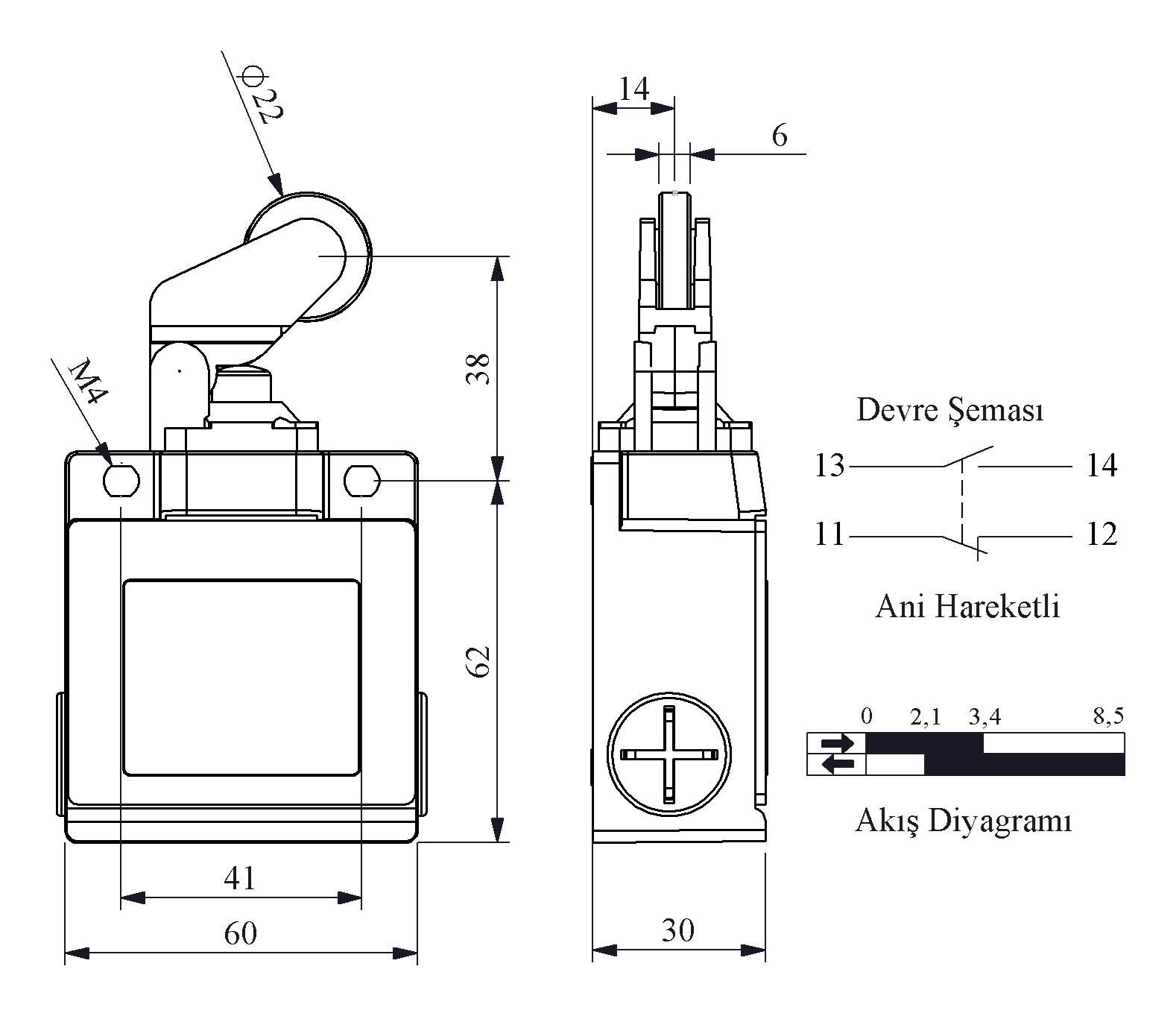

  5. L53 Metal Body 22 mm Plastic Roller Lever Snap Action 1NO+1NC Limit Switch

Product Details



L53 Metal Body 22 mm Plastic Roller Lever Snap Action 1NO+1NC Limit Switch L53 Metal Body 22 mm Plastic Roller Lever Snap Action 1NO+1NC Limit Switch

L53 Metal Body 22 mm Plastic Roller Lever Snap Action 1NO+1NC Limit Switch

Product Code
L53K13MIP211
Standard
TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE EAC SEPRO TSE UKCA
Certificate
(Contact Block)
TSE UL
Downloads
  • Metal Body and Cover
  • 3 side PG13,5 holes
  • Various actuator options with wide sensitive contact block alternatives for all kind of applications
L53 Metal Body 22 mm Plastic Roller Lever Snap Action 1NO+1NC Limit Switch
L53 Metal Body 22 mm Plastic Roller Lever Snap Action 1NO+1NC Limit Switch
Product
Limit Switch
Contact
1NO+1NC
Actuator
Roller Lever
Actuator Dia
22 mm
Current (Ie)
3 A (240V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
10000000
Electrical Life (Min Qty)
1000000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1800
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-25 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1-2.5 mm2
Screw Torque
1.5Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Production Time
31.12.1899 00:00:00
Serial
L53 Metal Body
Contact Action
Snap Action
Actuator Material
Plastic
