Product Details

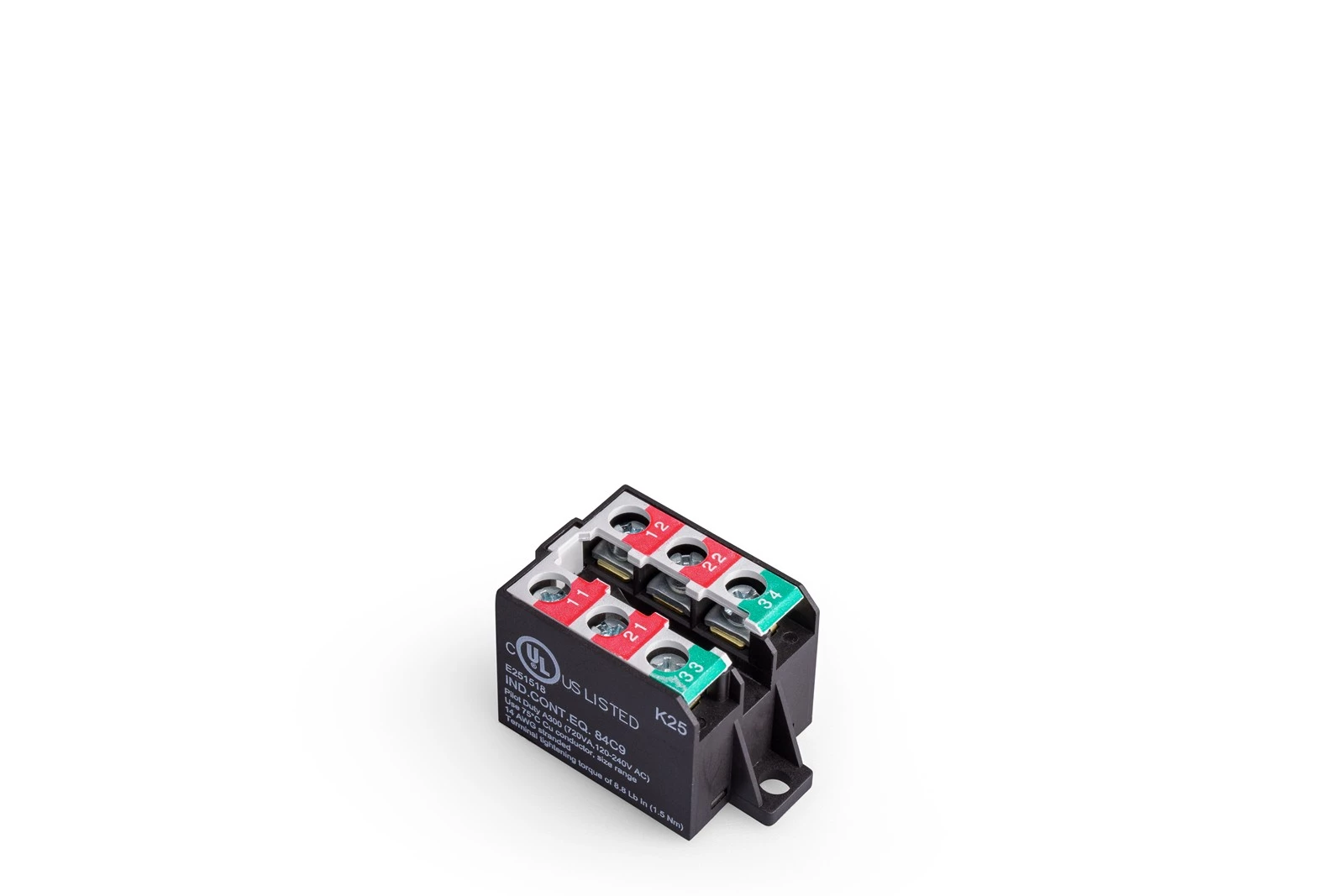

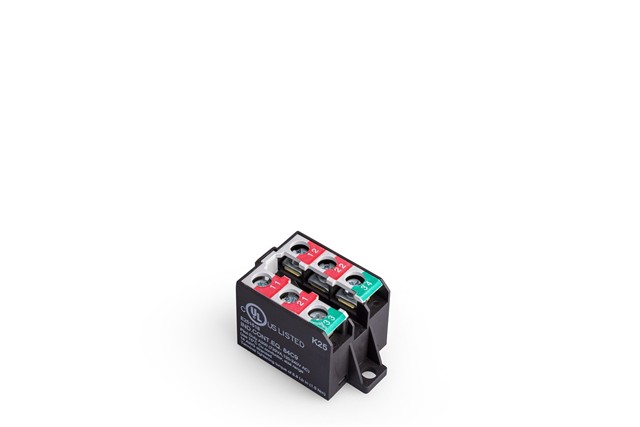

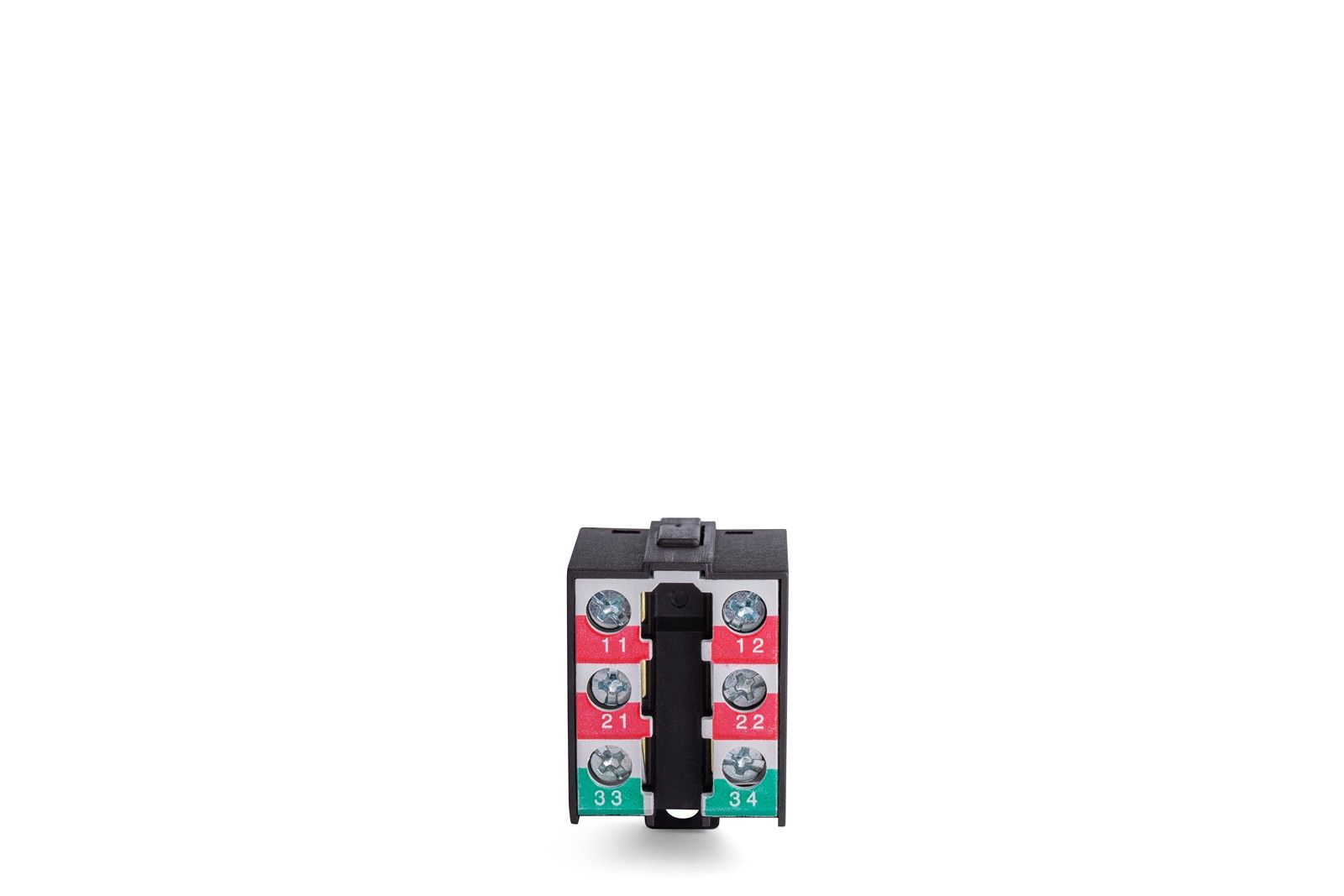

Spare Part Slow Action 2NC+1NO Contact Block Spare Part Slow Action 2NC+1NO Contact Block

Spare Part Slow Action 2NC+1NO Contact Block

Product Code
LK20K25
Standard
TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE EAC UKCA
Certificate
(Contact Block)
UL
Downloads
Spare Part Slow Action 2NC+1NO Contact Block
Spare Part Slow Action 2NC+1NO Contact Block
Product
Contact Block
Serial
Spare Part
Related Product
L1-L2-L3-L5-L51-L52-L53-L54
Contact Action
Slow Action
Contact
2NC+1NO
Current (Ie)
3 A (240V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
10000000
Electrical Life (Min Qty)
1000000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1800
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-25 / + 80 °C
Pollution Degree
3
Contact Material
AgNi
Cable Section
1-2.5 mm2
Screw Torque
1.5Nm
1 kA
