Product Details
.jpg)

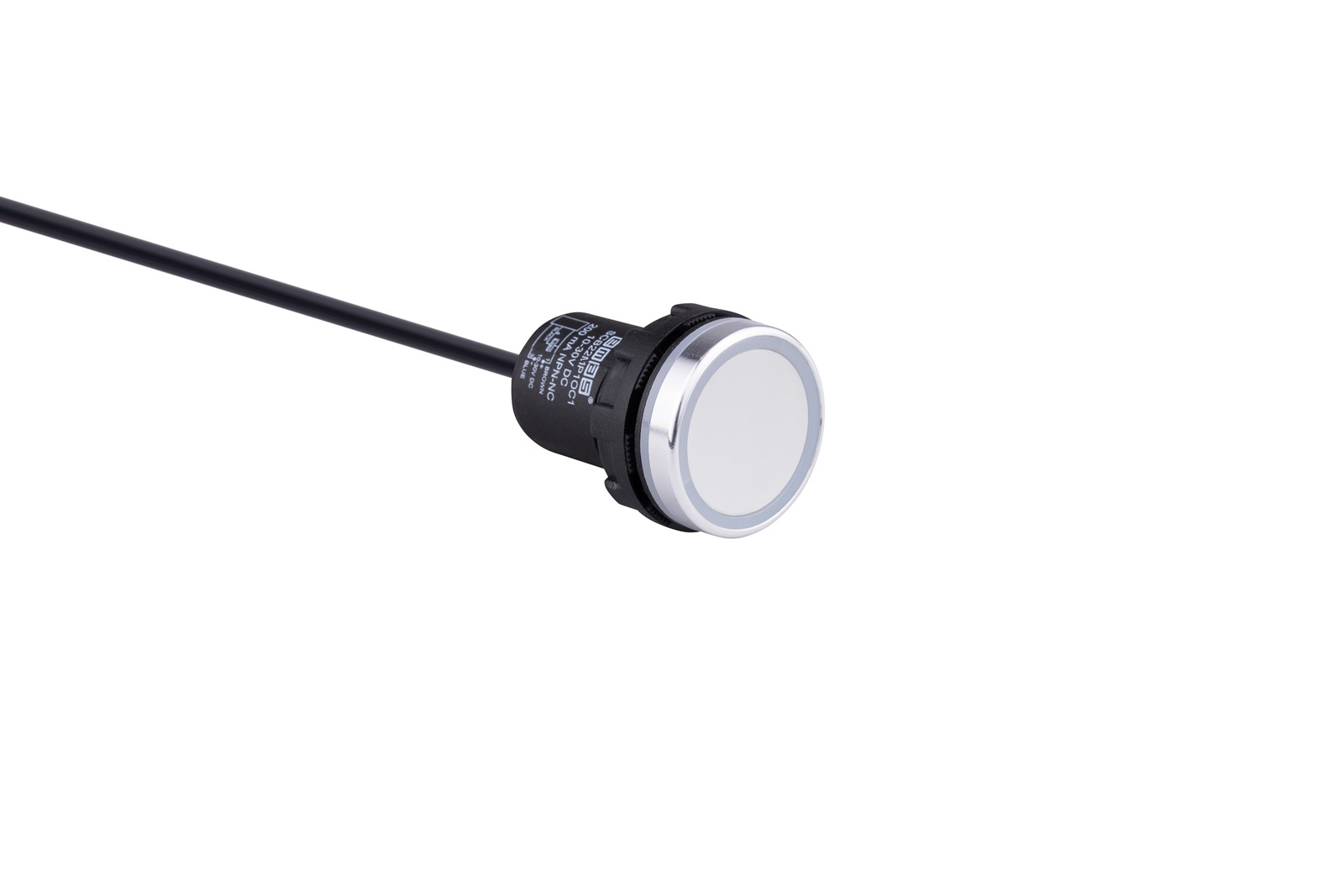

Plastic Momentary NPN-NC Touch 1m Cable M22 Capacitive Button
Product Code
SCB22MP1OC1
Certificate
Downloads
.jpg?format=webp)
Product
Capacitive Button
Serial
SCB Series Capacitive Button
Body Material
Plastic
Type
Momentary
Output/Contact Type
NPN-NC
Sensing Distance
Touch
Connection Type
1m Cable
Connection / Nominal Dimension
M22
Mounting
Non Flush
Operational Voltage
10-30V DC
Insulation Voltage (Ui)
1500 VAC
Impulse Withstand Voltage (Uimp)
75V DC
Operating Temperature
-25°C…+70°C
Pollution Degree
3
Protection Degree
IP67
Number of Contact
1
Repeat Accuracy
<0,1 Sr
Reverse Polarity Protection
Available
Short Circuit Protection
Available
Max. Load Current
200 mA hiccup
Temperature Drift
<0,1 Sr
Time Delay Before Availability
≤100 ms
No Load Current
< 15 mA
Leakage Current
≤0,5mA
Min. Load Current
< 1mA
Voltage Drop
< 2 V
Ripple (Voltage)
< %10
EMC
61000-4-3 3V/m -- 61000-4-6 3
Conditional Short Circuit Current
100A
Usage Category - Operating Current
DC13 - 200mA
Sensing Face
PBT
Number of Cable and Cable Section
3 x 0,25 mm2
