Product Details

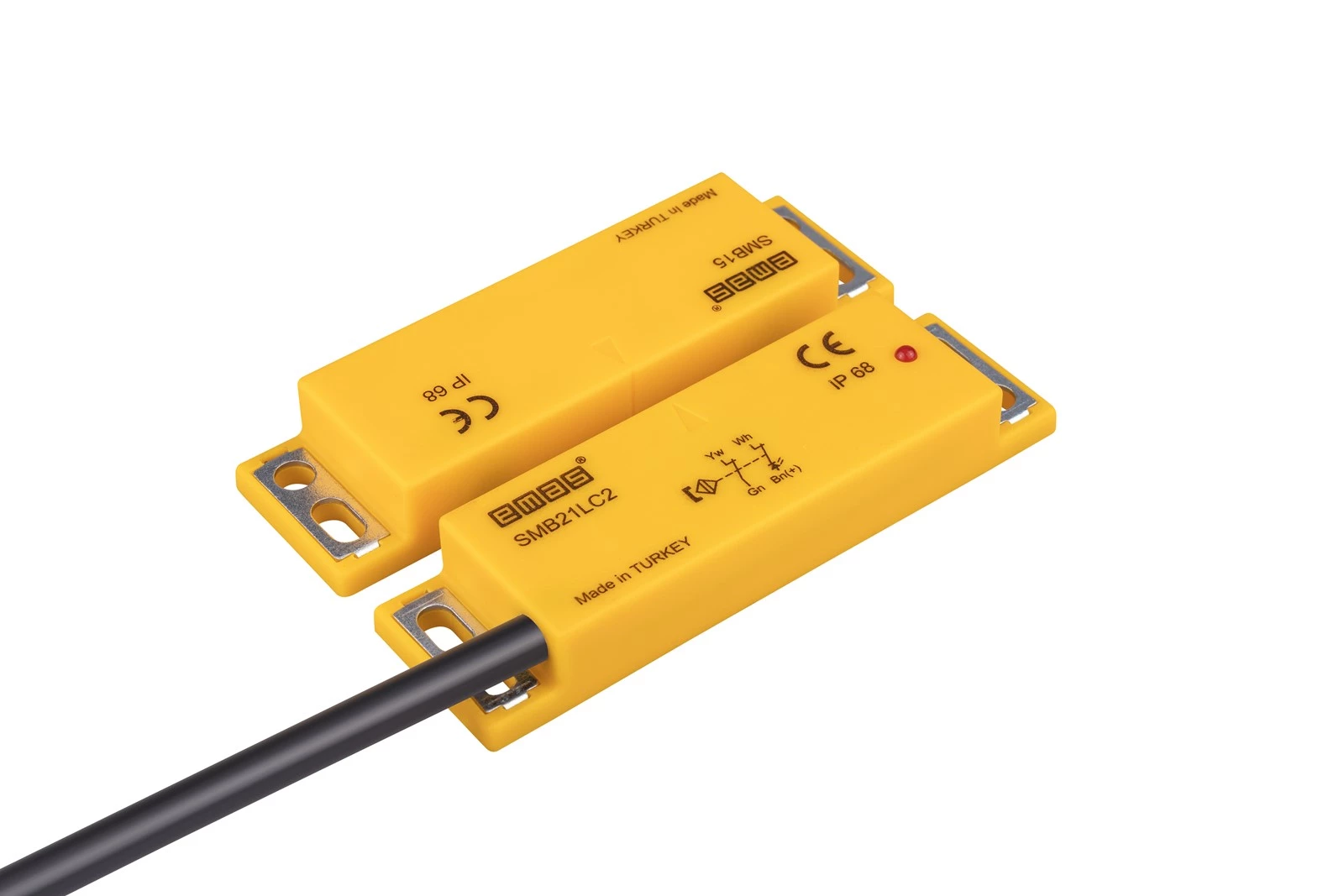

Plastic Left Exit 2NC 5mm with LED 2m Cable 78 mm Magnetic Door Switch

Plastic Left Exit 2NC 5mm with LED 2m Cable 78 mm Magnetic Door Switch

Product Code
SMB21LC2-B15
Certificate
CE EAC SEPRO UKCA
Downloads
  • Contactless triggering
  • Coded Trigger
  • With Cable and Connector models
  • Resistant to dirt and dust
  • Different product options for right and left output
Plastic Left Exit 2NC 5mm with LED 2m Cable 78 mm Magnetic Door Switch
Product
Magnetic Door Switch
Serial
SM Series Magnetic Door Switch
Body Material
Plastic
Type
Left Exit
Output/Contact Type
2NC
Sensing Distance
5mm
Feature
with LED
Connection Type
2m Cable
Connection / Nominal Dimension
78 mm
Operating Temperature
-25°C…+70°C
Protection Degree
IP68
Number of Cable and Cable Section
4 x 0,25  mm2
