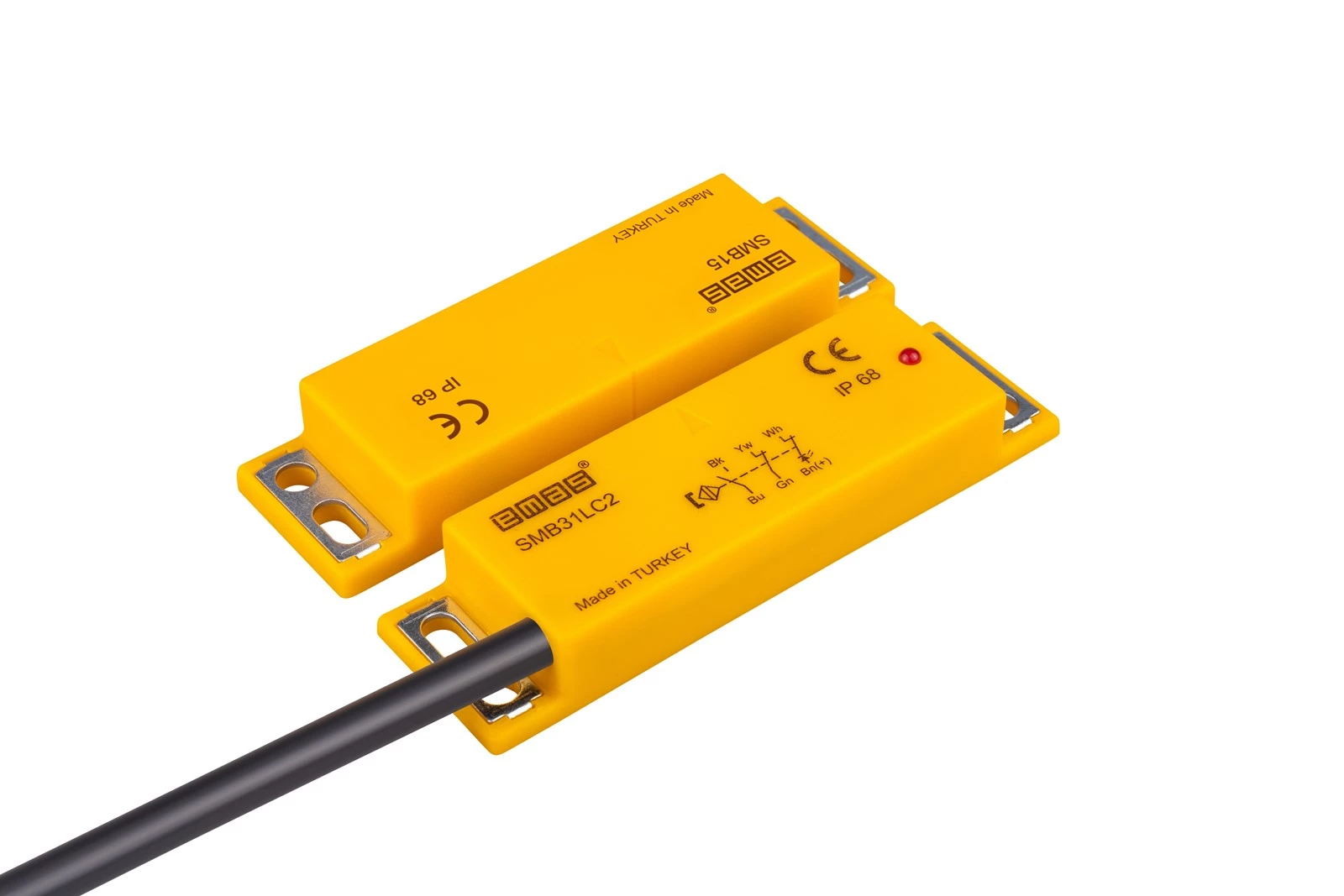

Plastic Left Exit 2NC+1NO 5mm with LED 2m Cable 78 mm Magnetic Door Switch

Plastic Left Exit 2NC+1NO 5mm with LED 2m Cable 78 mm Magnetic Door Switch

Product Code
SMB31LC2-B15
Certificate
CE EAC SEPRO UKCA
Downloads
  • Contactless triggering
  • Coded Trigger
  • With Cable and Connector models
  • Resistant to dirt and dust
  • Different product options for right and left output
Plastic Left Exit 2NC+1NO 5mm with LED 2m Cable 78 mm Magnetic Door Switch
Product
Magnetic Door Switch
Serial
SM Series Magnetic Door Switch
Body Material
Plastic
Type
Left Exit
Output/Contact Type
2NC+1NO
Sensing Distance
5mm
Feature
with LED
Connection Type
2m Cable
Connection / Nominal Dimension
78 mm
Operating Temperature
-25°C…+70°C
Protection Degree
IP68
Number of Cable and Cable Section
6 x 0,25  mm2
