Product Details

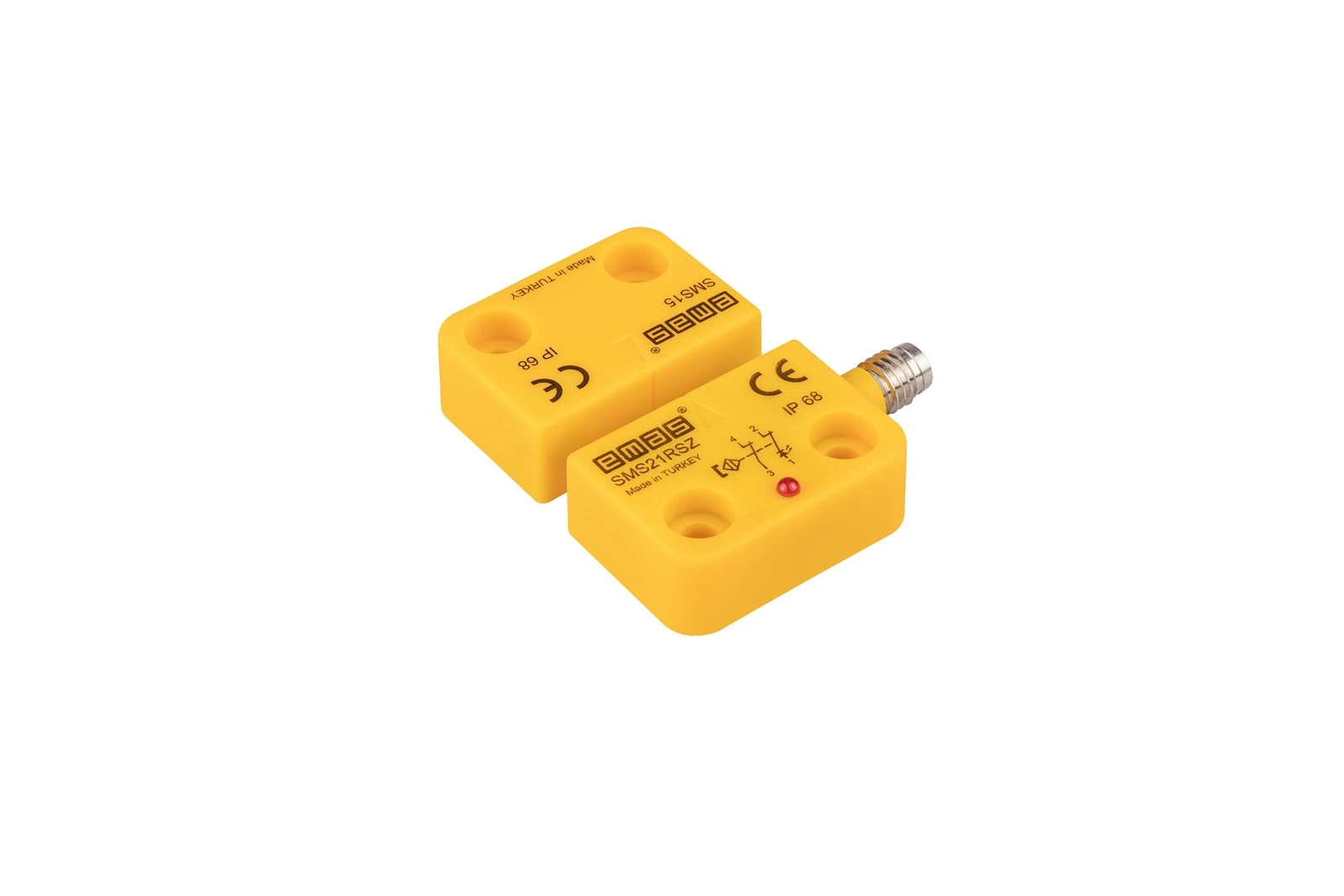

Plastic Right Exit 2NC 5mm with LED M8*4 Connector 22 mm Magnetic Door Switch

Plastic Right Exit 2NC 5mm with LED M8*4 Connector 22 mm Magnetic Door Switch

Product Code
SMS21RSZ-S15
Certificate
CE EAC SEPRO UKCA
Downloads
  • Contactless triggering
  • Coded Trigger
  • With Cable and Connector models
  • Resistant to dirt and dust
  • Different product options for right and left output
Plastic Right Exit 2NC 5mm with LED M8*4 Connector 22 mm Magnetic Door Switch
Product
Magnetic Door Switch
Serial
SM Series Magnetic Door Switch
Body Material
Plastic
Type
Right Exit
Output/Contact Type
2NC
Sensing Distance
5mm
Feature
with LED
Connection Type
M8*4 Connector
Connection / Nominal Dimension
22 mm
Operating Temperature
-25°C…+70°C
Protection Degree
IP68
