Product Details

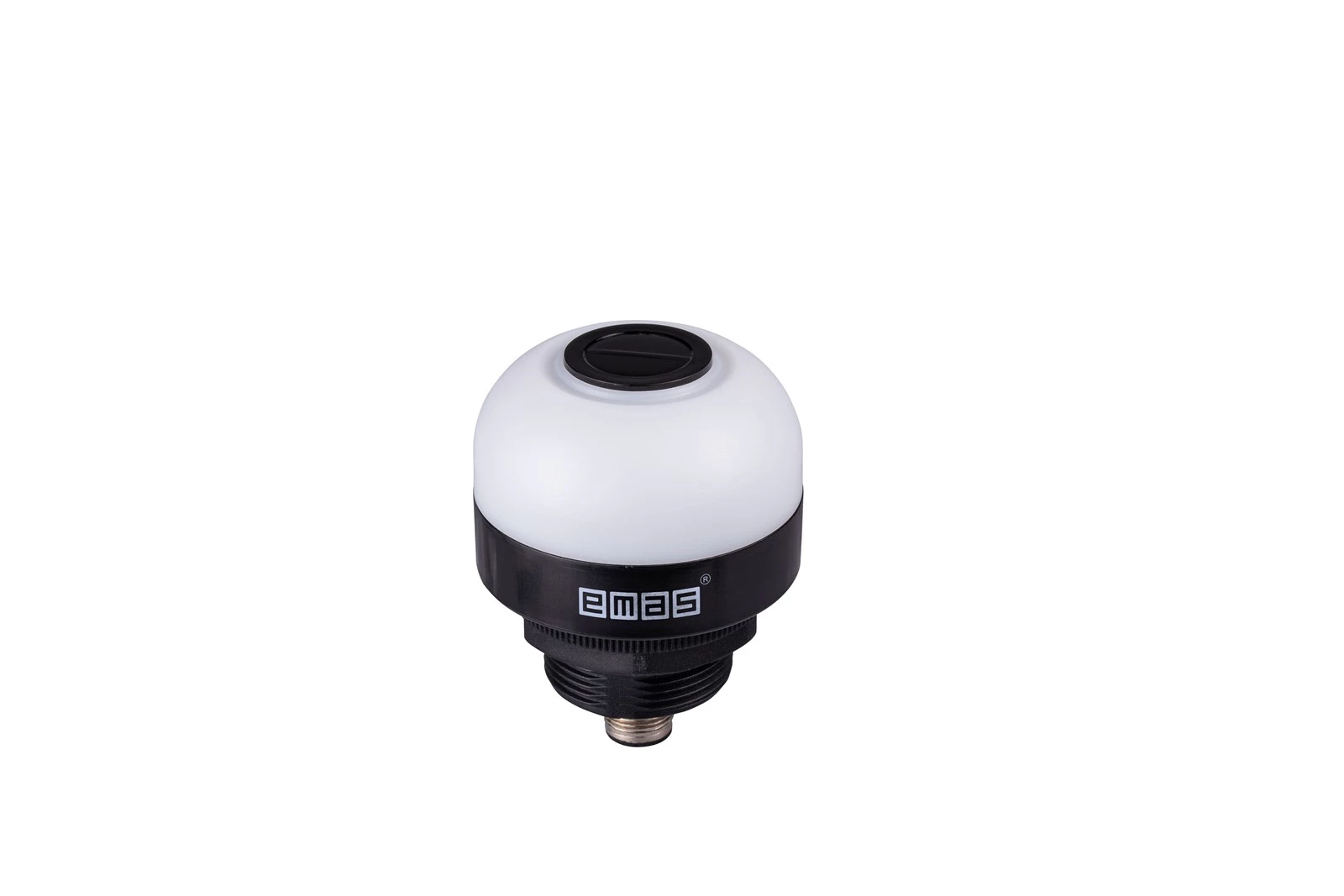

Plastic Diffuse Reflection Momentary PNP-NO 15 cm Sensing Distance M12 Connector M30 Photoelectric Button
Product Code
SPB30MP6PSX
Downloads
Product
Photoelectric Button
Serial
SPB Series Photoelectric Button
Body Material
Plastic
Type
Diffuse Reflection Momentary
Output/Contact Type
PNP-NO
Sensing Distance
15 cm Sensing Distance
Connection Type
M12 Connector
Connection / Nominal Dimension
M30
Operational Voltage
12-30 VDC
Insulation Voltage (Ui)
1500 VAC
Impulse Withstand Voltage (Uimp)
75 VDC
Operating Temperature
-25°C…+55°C
Pollution Degree
3
Protection Degree
IP67
Number of Contact
1
Reverse Polarity Protection
Available
Short Circuit Protection
Available
Max. Load Current
200 mA hiccup
Time Delay Before Availability
≤300 ms
Min. Load Current
< 1mA
Voltage Drop
< 2 V
Ripple (Voltage)
< %10
EMC
61000-4-3 3V/m -- 61000-4-6 3
Conditional Short Circuit Current
100A
Usage Category - Operating Current
DC13 - 200mA
Sensing Face
PC
Production Time
1.06.2023 00:00:00
