Product Details

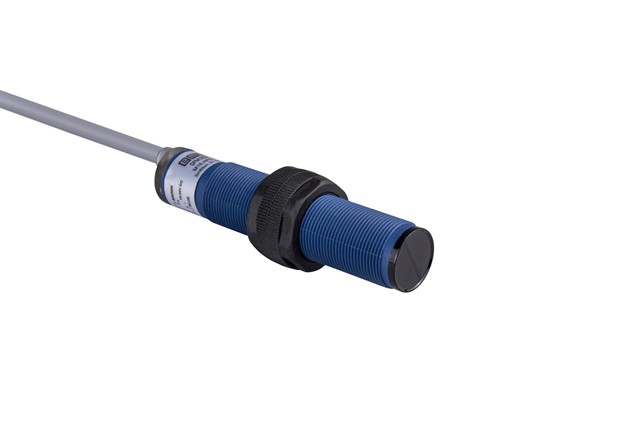

Plastic Diffuse Reflection NPN-NO/NC 400mm with LED 2m Cable M18 Photoelectric Sensor
Product Code
SPM18DP4EC2
Certificate
Downloads
Product
Photoelectric Sensor
Serial
SPM Series Photoelectric Sensor
Body Material
Plastic
Type
Diffuse Reflection
Output/Contact Type
NPN-NO/NC
Sensing Distance
400mm
Feature
with LED
Connection Type
2m Cable
Connection / Nominal Dimension
M18
Operational Voltage
10-30V DC
Insulation Voltage (Ui)
1500 VAC
Impulse Withstand Voltage (Uimp)
75V DC
Operating Temperature
-5°C...+55°C
Pollution Degree
3
Protection Degree
IP65
Hysterisis
<%15 Sr (effective operating distance)
Number of Contact
1
Repeat Accuracy
<0,1 Sr
Switching Frequency
2 ms (Response Time)
Reverse Polarity Protection
Available
Short Circuit Protection
Available
Max. Load Current
200 mA hiccup
Temperature Drift
<0,1 Sr
Time Delay Before Availability
≤100 ms
No Load Current
< 15 mA
Leakage Current
≤0,5mA
Min. Load Current
< 1mA
Voltage Drop
< 2 V
Ripple (Voltage)
< %10
EMC
61000-4-3 3V/m -- 61000-4-6 3
Conditional Short Circuit Current
100A
Usage Category - Operating Current
DC13 - 200mA
Sensing Face
PC
Number of Cable and Cable Section
4 x 0,25 mm2
