Product Details



Plastic Retro Reflection Relay Output 7m with LED 2m Cable 50 mm Square Photoelectric Sensor Plastic Retro Reflection Relay Output 7m with LED 2m Cable 50 mm Square Photoelectric Sensor

Plastic Retro Reflection Relay Output 7m with LED 2m Cable 50 mm Square Photoelectric Sensor

Product Code
SPQ50RP2CC2
Certificate
CE EAC SEPRO UKCA
Downloads
  • Fast switching
  • Resistant to friction and attrition
  • Short circuit and overload protection
  • Reverse polarity protection
Plastic Retro Reflection Relay Output 7m with LED 2m Cable 50 mm Square Photoelectric Sensor
Plastic Retro Reflection Relay Output 7m with LED 2m Cable 50 mm Square Photoelectric Sensor
Product
Square Photoelectric Sensor
Serial
SPQ Series Square Photoelectric Sensor
Body Material
Plastic
Type
Retro Reflection
Output/Contact Type
Relay Output
Sensing Distance
7m
Feature
with LED
Connection Type
2m Cable

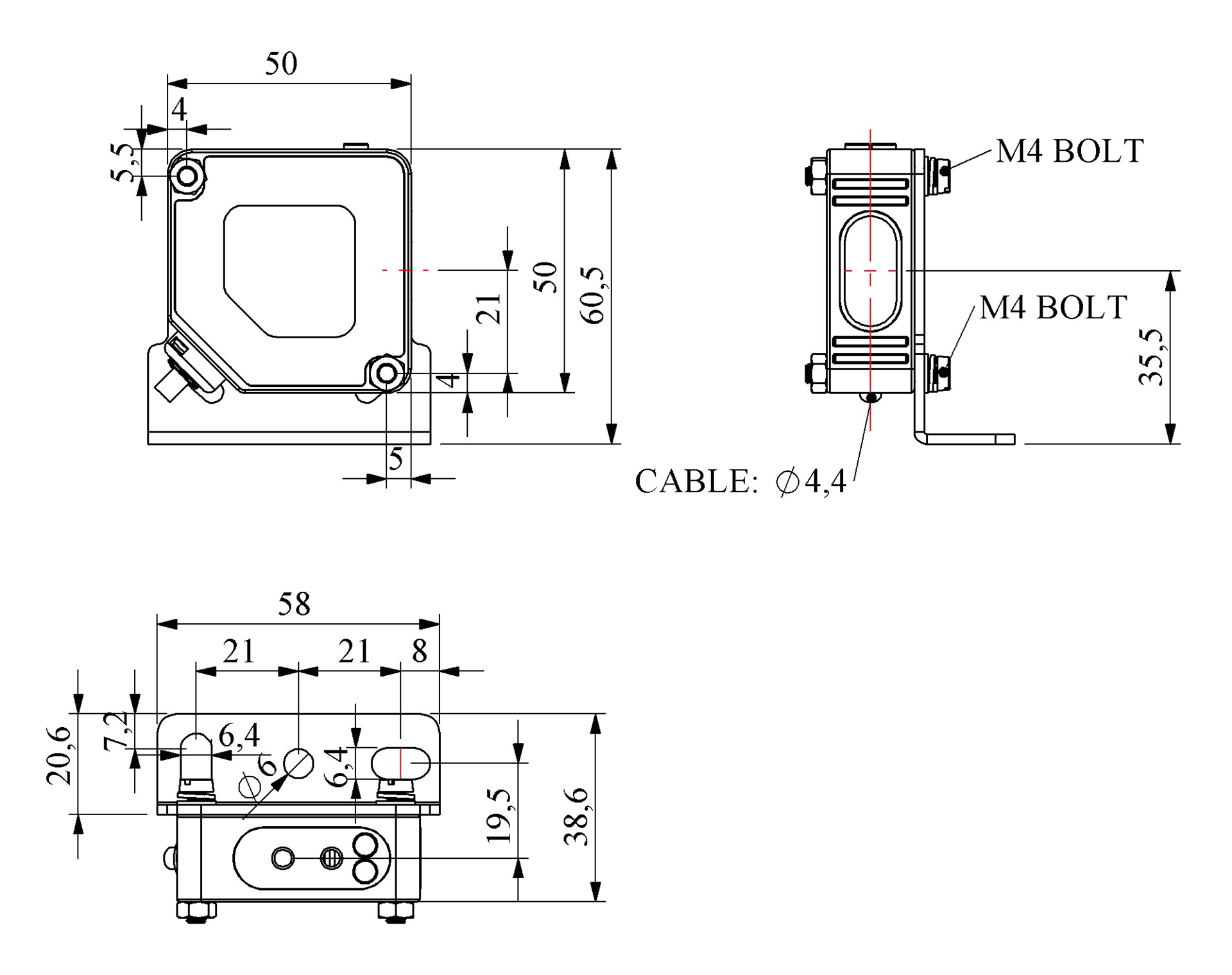

Connection / Nominal Dimension
50 mm
Operational Voltage
24-240 V AC/DC
Operational Frequency
50/60 Hz
Current (Ie)
250VAC 3A (rezistif)
Insulation Voltage (Ui)
1500 VAC
Impulse Withstand Voltage (Uimp)
75V DC
Operating Temperature
-20°C...+65°C
Pollution Degree
3
Protection Degree
IP50
Hysterisis
<%15 Sr (effective operating distance)
Number of Contact
1
Repeat Accuracy
<0,1 Sr
Switching Frequency
100 ms (Response Time)
Temperature Drift
<0,1 Sr
Time Delay Before Availability
≤100 ms
Ripple (Voltage)
< %10
EMC
61000-4-3 3V/m -- 61000-4-6 3
Sensing Face
PC
Number of Cable and Cable Section
5 x 0,25  mm2
