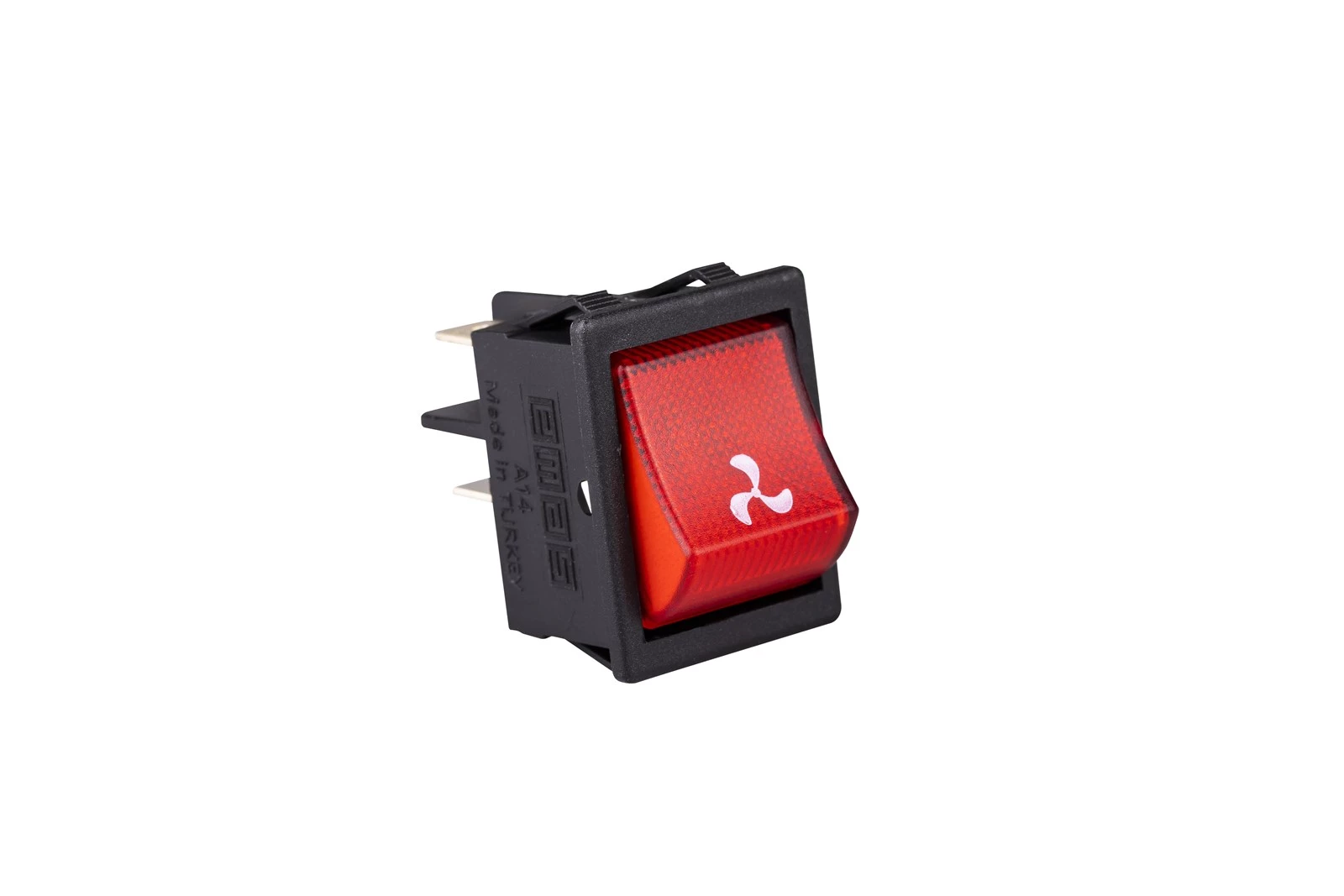

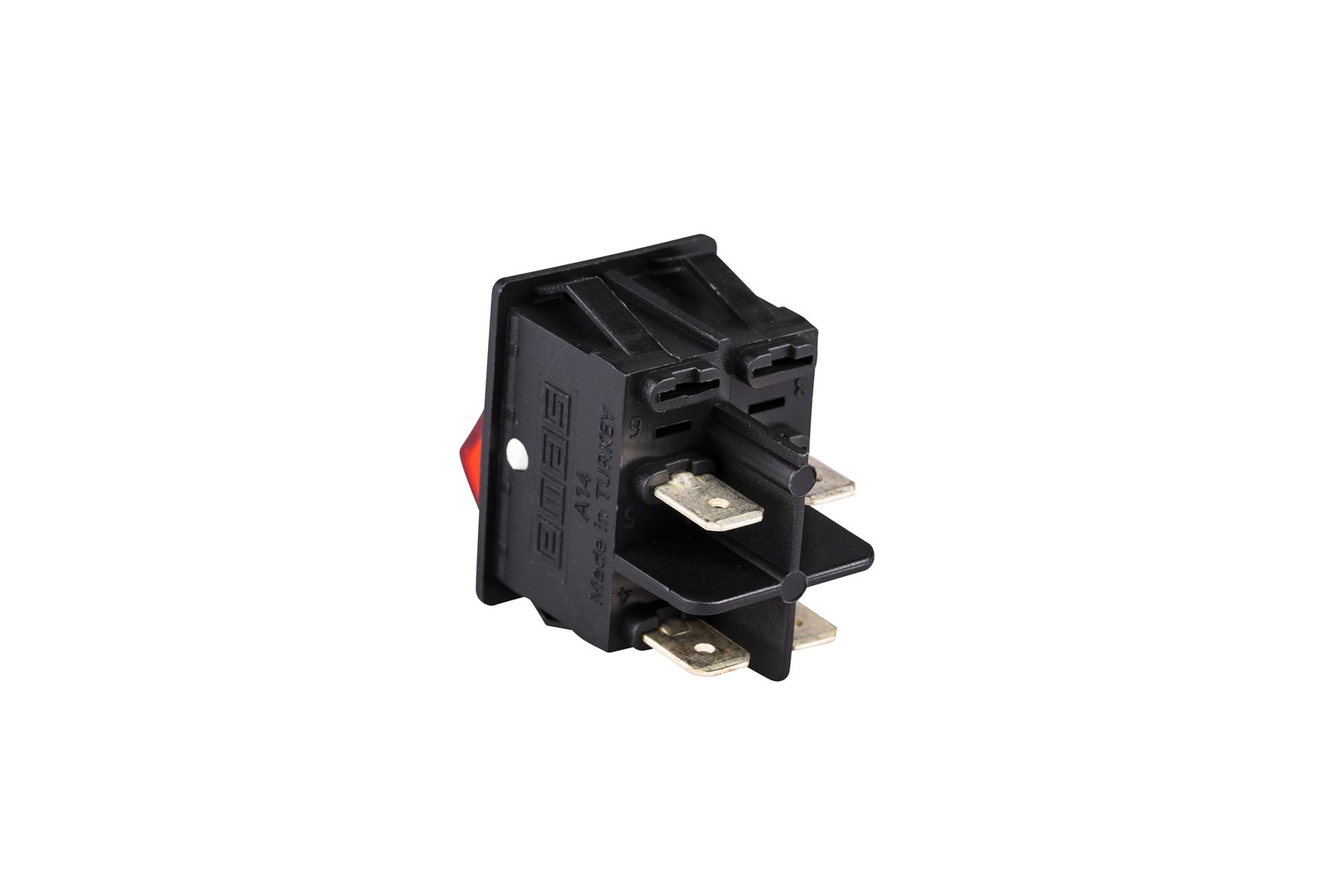

  5. 30*22mm Black Body 2NO with Illumination with Terminal (Fan) Sign Marked Red A14 Series Rocker Switch

Product Details



30*22mm Black Body 2NO with Illumination with Terminal (Fan) Sign Marked Red A14 Series Rocker Switch 30*22mm Black Body 2NO with Illumination with Terminal (Fan) Sign Marked Red A14 Series Rocker Switch

30*22mm Black Body 2NO with Illumination with Terminal (Fan) Sign Marked Red A14 Series Rocker Switch

Product Code
A14B1KF1
Standard
TS EN 61058-1
Certificate
CE EAC SEPRO TSE UKCA
Downloads
  • With or w/o illumination options
  • Four different color options
  • Black or white body
  • Snap action
30*22mm Black Body 2NO with Illumination with Terminal (Fan) Sign Marked Red A14 Series Rocker Switch
30*22mm Black Body 2NO with Illumination with Terminal (Fan) Sign Marked Red A14 Series Rocker Switch
Connection Type
with Terminal
Print
(Fan) Sign Marked
Product
Rocker Switch
Contact
2NO
Color
Red
Illumination
with Illumination
Dia
30*22mm
Current (Ie)
16 A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
50000
Electrical Life (Min Qty)
50000
Operating Frequency (On-Off/Hour)
Mech.900 Elec.900
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP20
Contact Material
AgNi
Cable Section
Terminal 6,3*0,8 mm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
A14 Series
Body Color
Black Body
