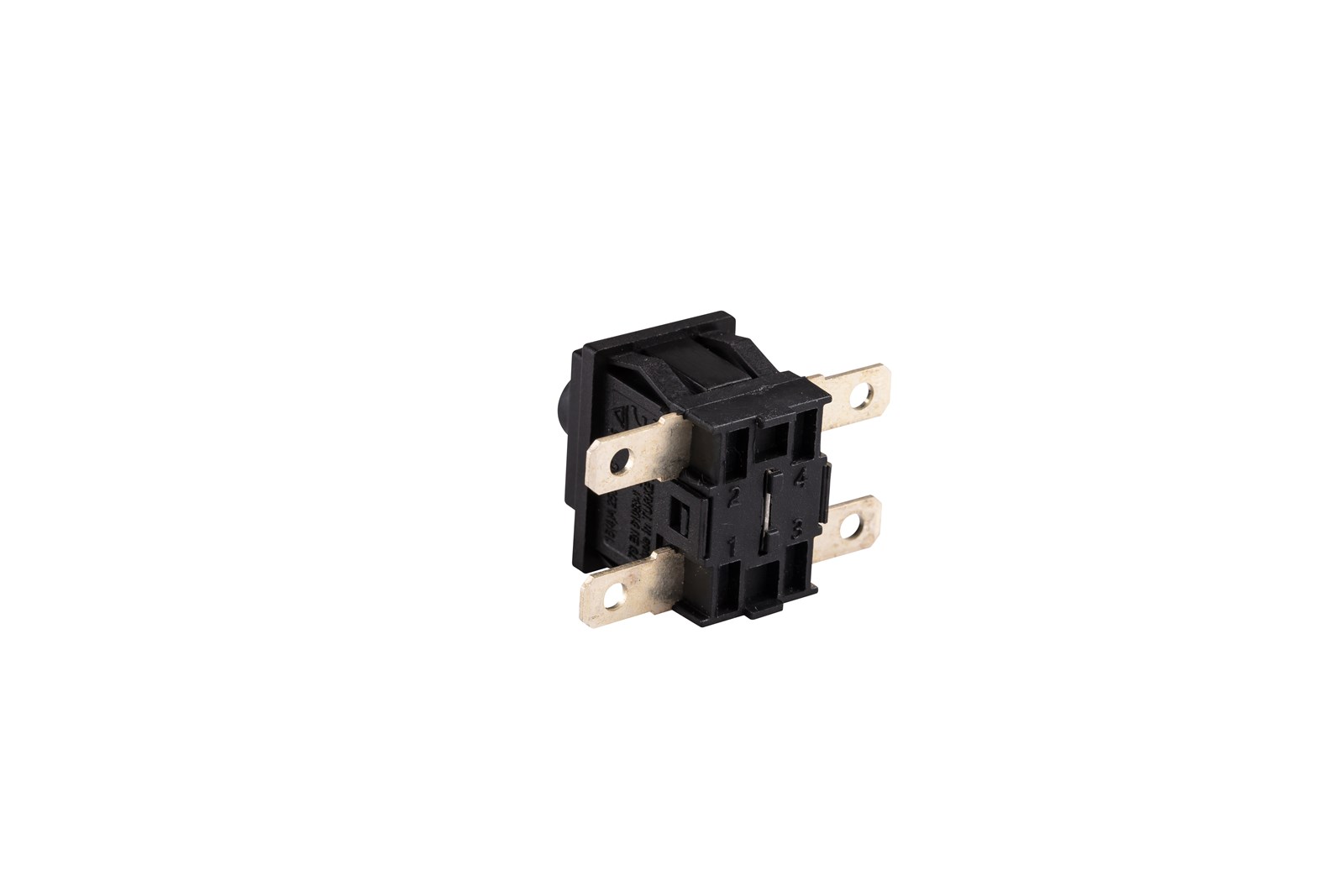

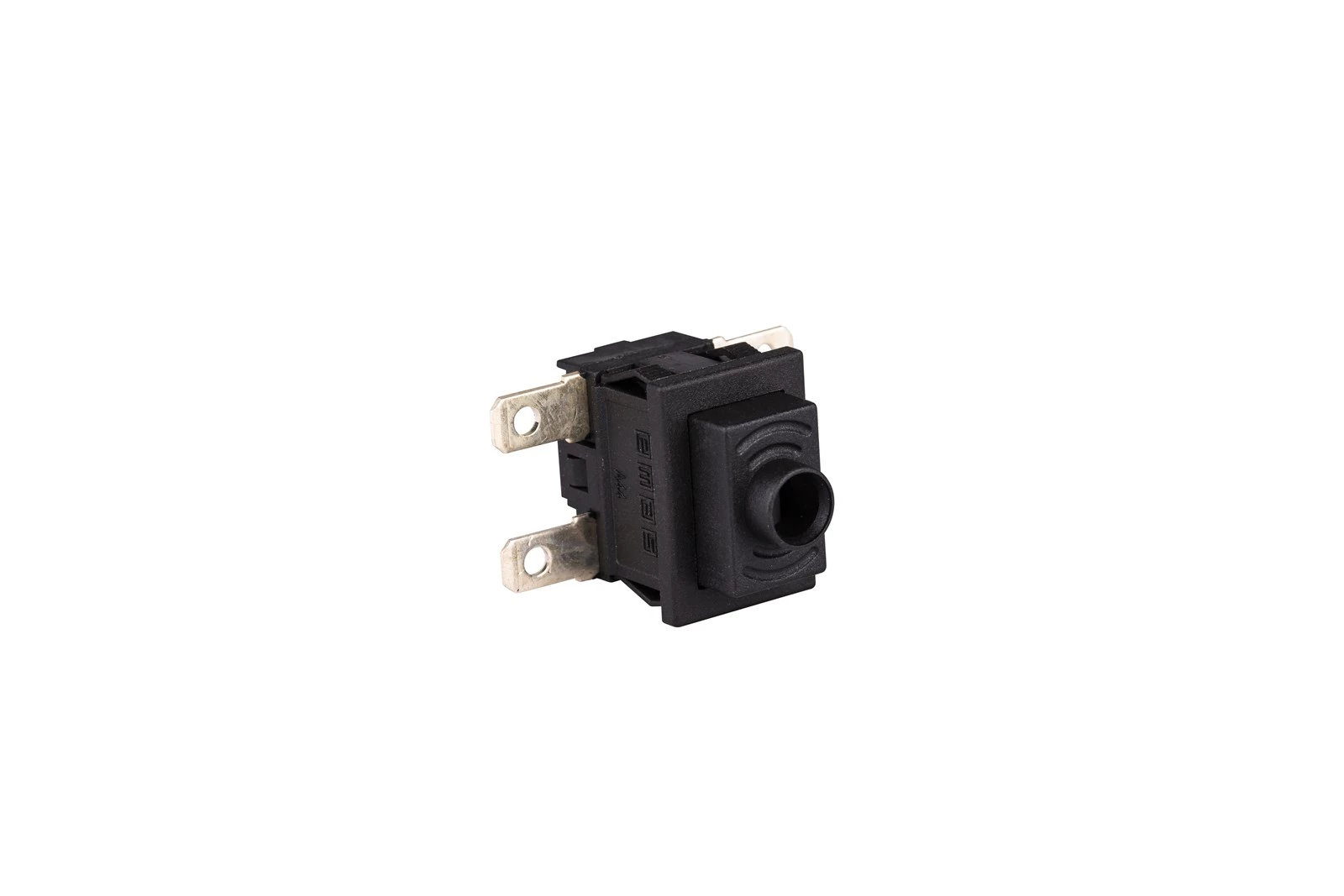

  5. 20*13mm Black Body 2NO with Illumination with Terminal Stay Put Black A44 Series Rocker Switch

Product Details



20*13mm Black Body 2NO with Illumination with Terminal Stay Put Black A44 Series Rocker Switch 20*13mm Black Body 2NO with Illumination with Terminal Stay Put Black A44 Series Rocker Switch

20*13mm Black Body 2NO with Illumination with Terminal Stay Put Black A44 Series Rocker Switch

Product Code
A44B1HX1
Standard
TS EN 61058-1
Certificate
CE TÜV UKCA
Downloads
  • Illuminated or Non-illuminated option
  • Persistent type
20*13mm Black Body 2NO with Illumination with Terminal Stay Put Black A44 Series Rocker Switch
20*13mm Black Body 2NO with Illumination with Terminal Stay Put Black A44 Series Rocker Switch
Connection Type
with Terminal
Product
Rocker Switch
Feature
Stay Put
Contact
2NO
Color
Black
Illumination
with Illumination
Dia
20*13mm
Current (Ie)
16 A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
6000
Electrical Life (Min Qty)
6000
Operating Frequency (On-Off/Hour)
Mech.900 Elec.901
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
11 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
1
Protection Degree
IP20
Contact Material
AgNi
Cable Section
Terminal 4,8*0,8 mm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
A44 Series
Body Color
Black Body
