  5. Snap Action 1NO with Etange 1m Cable BS Series Button Switch

Product Details

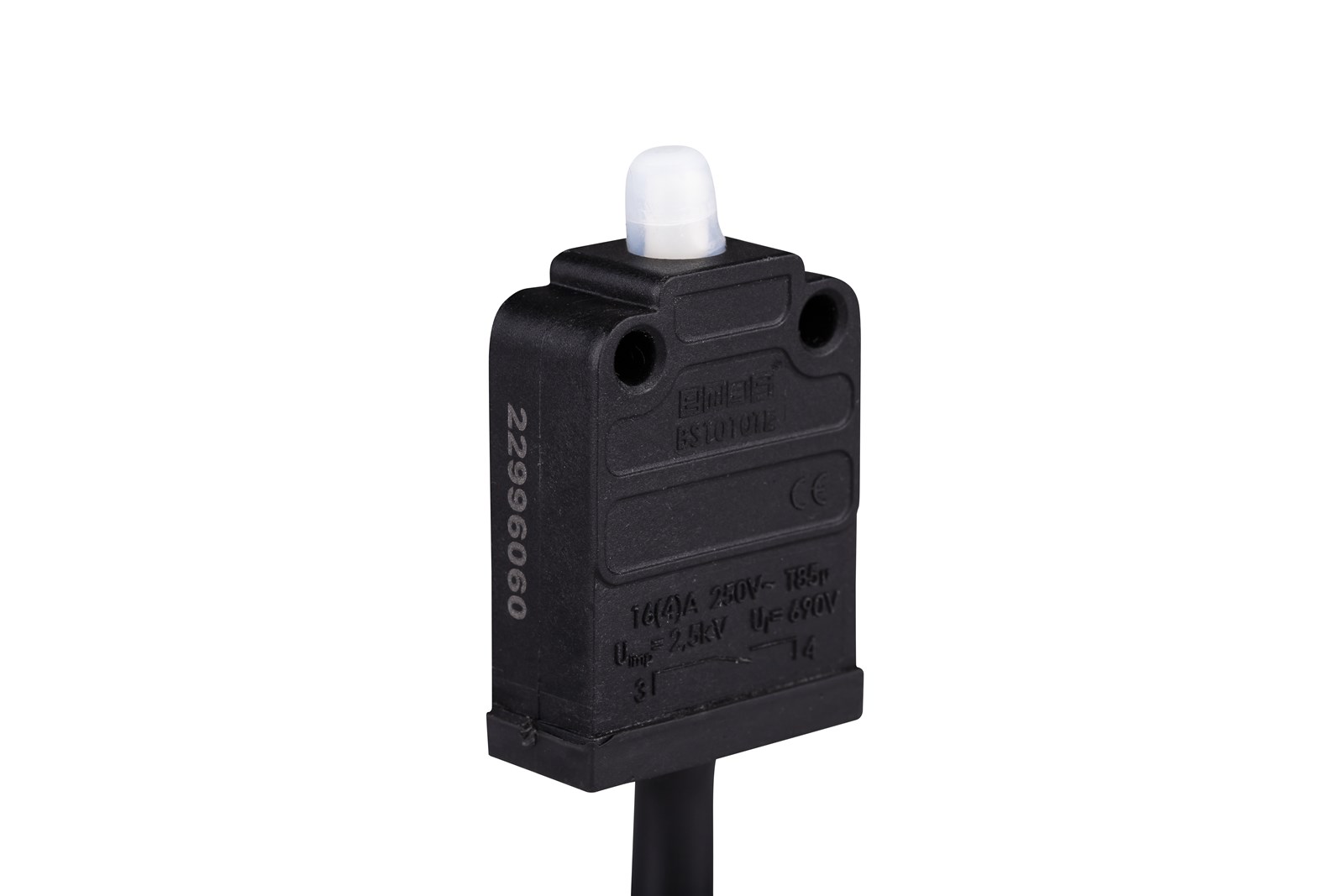

Snap Action 1NO with Etange 1m Cable BS Series Button Switch

Snap Action 1NO with Etange 1m Cable BS Series Button Switch

Product Code
BS1010TX1
Standard
TS EN 60947-5-1 VDE 0660
Certificate
CE EAC SEPRO TSE UKCA
Downloads
  • V0 material
  • Snap or slow action contact block type
Snap Action 1NO with Etange 1m Cable BS Series Button Switch
Product
Button Switch
Serial
BS Series
Action
Snap Action
Contact
1NO
Feature
with Etange
Cable
1m Cable
Current (Ie)
6 A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 900
Insulation Voltage (Ui)
690V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP67
Contact Material
AgNi
Cable Section
1 M KABLO 2*1 mm²
1 kA
