  5. Slow Action 1NC BS Series Button Switch

Product Details



Slow Action 1NC BS Series Button Switch Slow Action 1NC BS Series Button Switch

Slow Action 1NC BS Series Button Switch

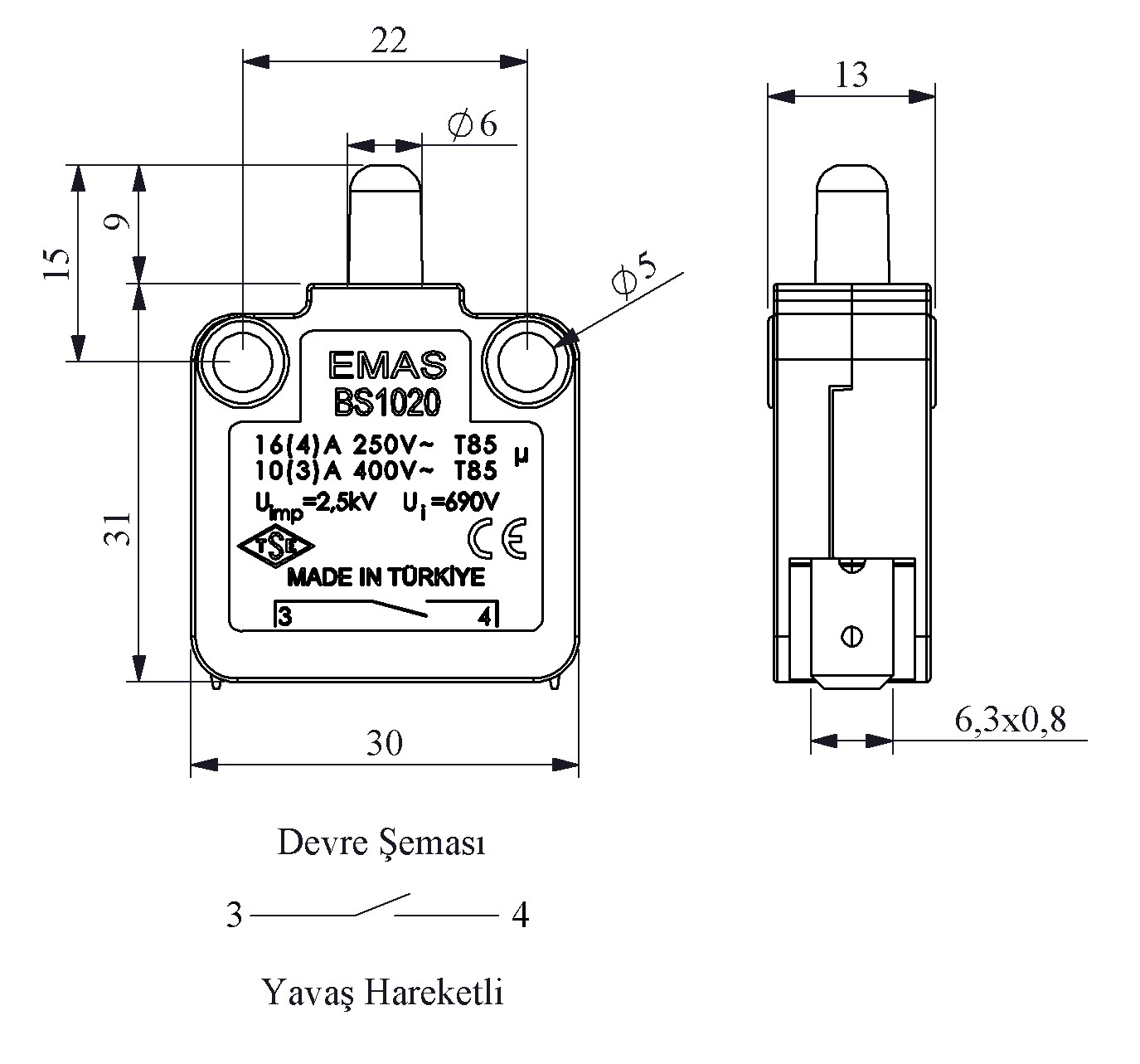

Product Code
BS1020
Standard
TS EN 60947-5-1 VDE 0660
Certificate
CE EAC SEPRO TSE UKCA
Downloads
  • Maximum product reliability with V0 material
  • Snap or slow action
Slow Action 1NC BS Series Button Switch
Slow Action 1NC BS Series Button Switch
Product
Button Switch
Contact
1NC
Current (Ie)
6 A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 900
Insulation Voltage (Ui)
690V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP40
Contact Material
AgNi
Cable Section
Terminal 6,3*0,8 mm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
BS Series
Action
Slow Action
