Product Details



2NO+2NC with Terminal with extra Plastic Handle (On-On) Marked MA Series Toggle Switch 2NO+2NC with Terminal with extra Plastic Handle (On-On) Marked MA Series Toggle Switch

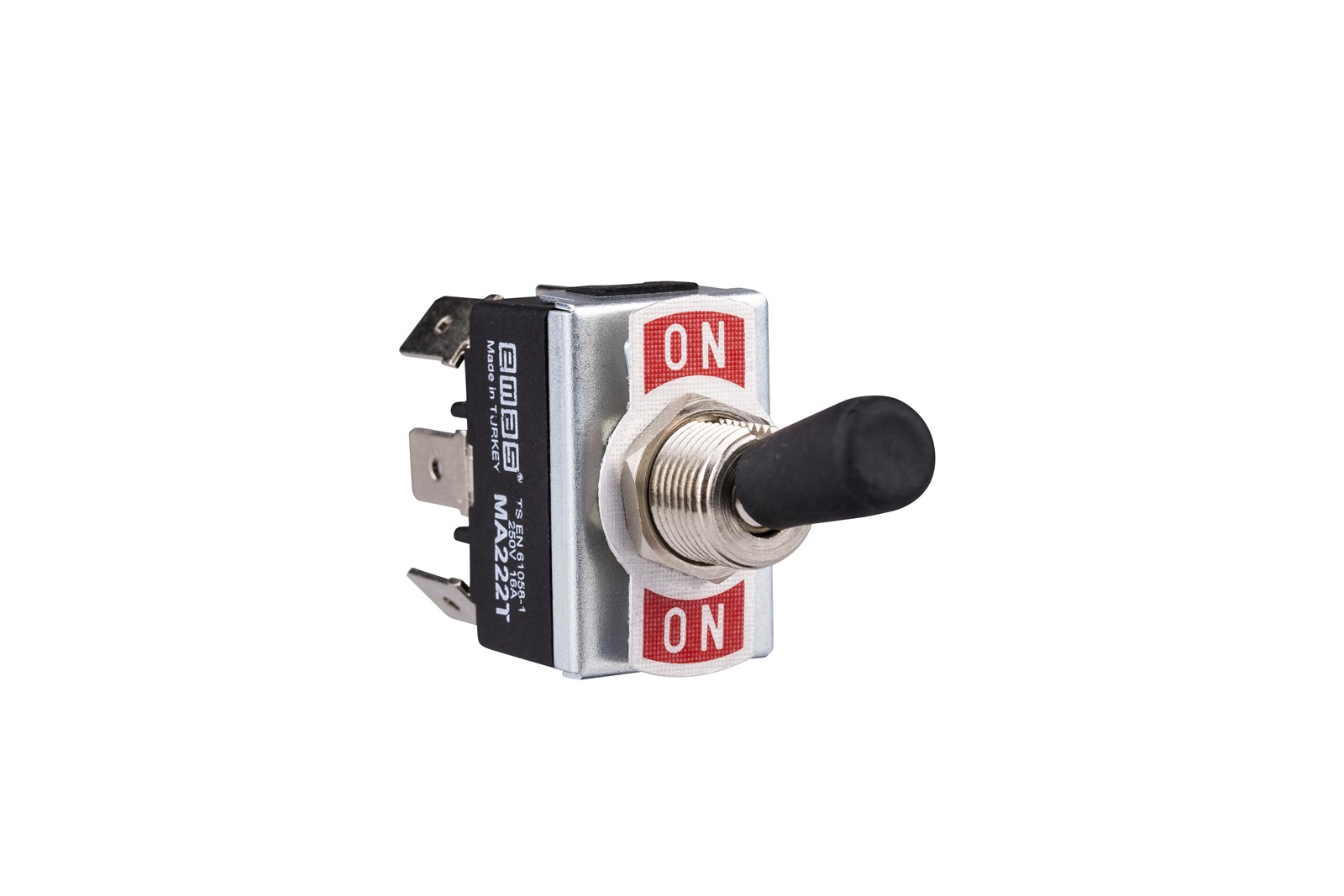

2NO+2NC with Terminal with extra Plastic Handle (On-On) Marked MA Series Toggle Switch

Product Code
MA222T
Standard
TS EN 61058-1
Certificate
CE EAC SEPRO UKCA
Downloads
  • Maximum product reliability with V0 material
  • Different badge options
2NO+2NC with Terminal with extra Plastic Handle (On-On) Marked MA Series Toggle Switch
2NO+2NC with Terminal with extra Plastic Handle (On-On) Marked MA Series Toggle Switch
Connection Type
with Terminal
Print
(On-On) Marked
Product
Toggle Switch
Feature
with extra Plastic Handle
Contact
2NO+2NC
Current (Ie)
16 A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
100000
Electrical Life (Min Qty)
10000
Operating Frequency (On-Off/Hour)
Mech.900 Elec.900
Insulation Voltage (Ui)
300V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP20
Contact Material
AgNi
Cable Section
Terminal 6,3*0,8 mm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
MA Series
