Product Details

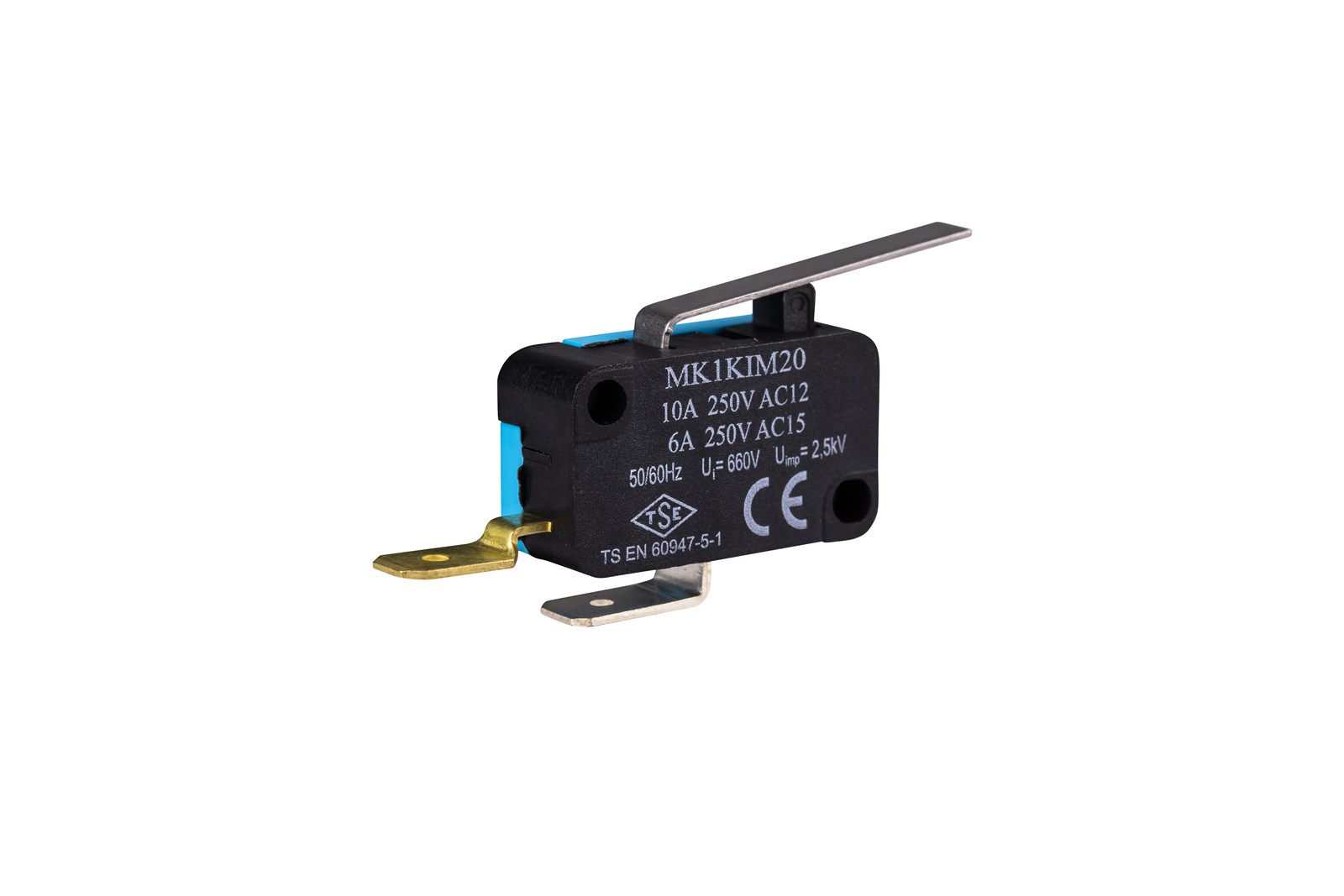

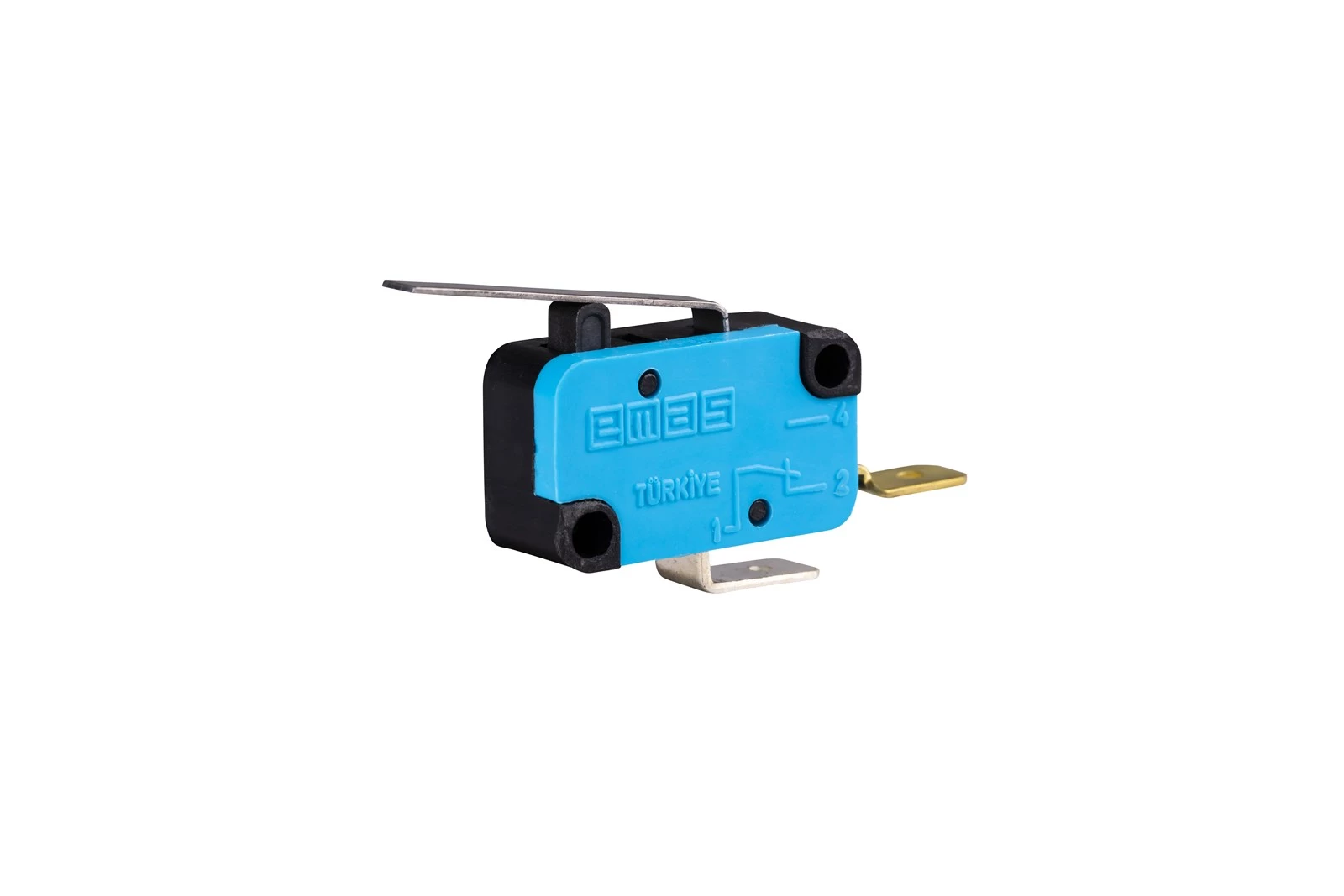

Metal Medium Lever 1NC MK1 Series Micro Switch Metal Medium Lever 1NC MK1 Series Micro Switch

Metal Medium Lever 1NC MK1 Series Micro Switch

Product Code
MK1KIM20
Standard
TS EN 60947-5-1
Certificate
CE EAC SEPRO TSE UKCA
Downloads
  • V0 material
  • Different actuator options
Metal Medium Lever 1NC MK1 Series Micro Switch
Metal Medium Lever 1NC MK1 Series Micro Switch
Product
Micro Switch
Serial
MK1 Series
Actuator Material
Metal
Actuator
Medium Lever
Contact
1NC
Current (Ie)
6 A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
10000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Insulation Voltage (Ui)
660V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP20
Contact Material
AgNi
Cable Section
Terminal 6,3*0,8 mm
1 kA
