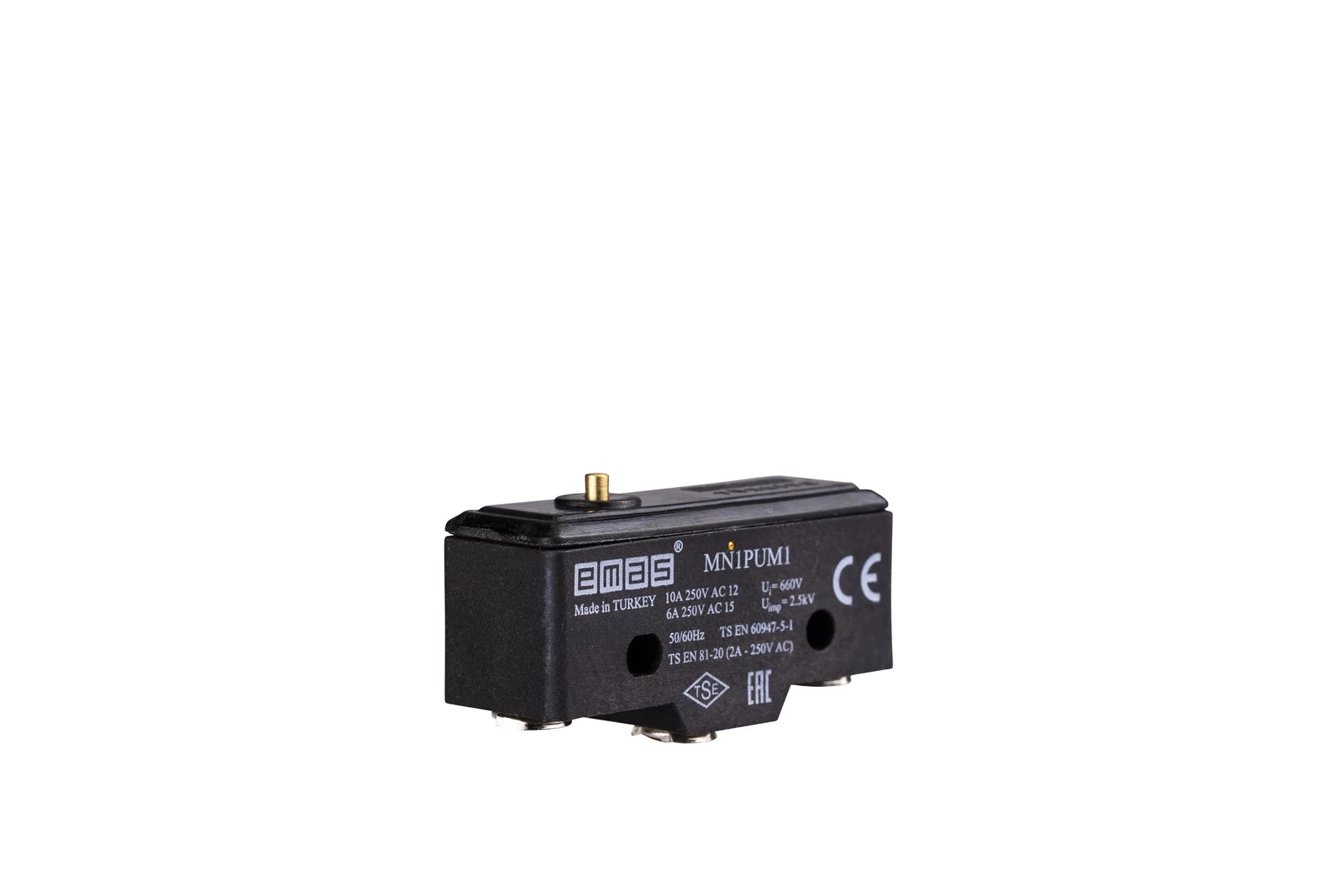

Metal Thin Plunger 1CO MN1 Series Plastic Mini Switch
Product Code
MN1PUM1
Standard
TS EN 60947-5-1
Certificate
Downloads
.jpg?format=webp)
Product
Plastic Mini Switch
Contact
1CO
Actuator
Thin Plunger
Current (Ie)
6 A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
500000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Insulation Voltage (Ui)
660V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP20 (IP40 Koruma Kapaklı)
Contact Material
AgNi
Cable Section
1-2.5 mm²
Screw Torque
1,5 Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
MN1 Series
Actuator Material
Metal
