Product Details

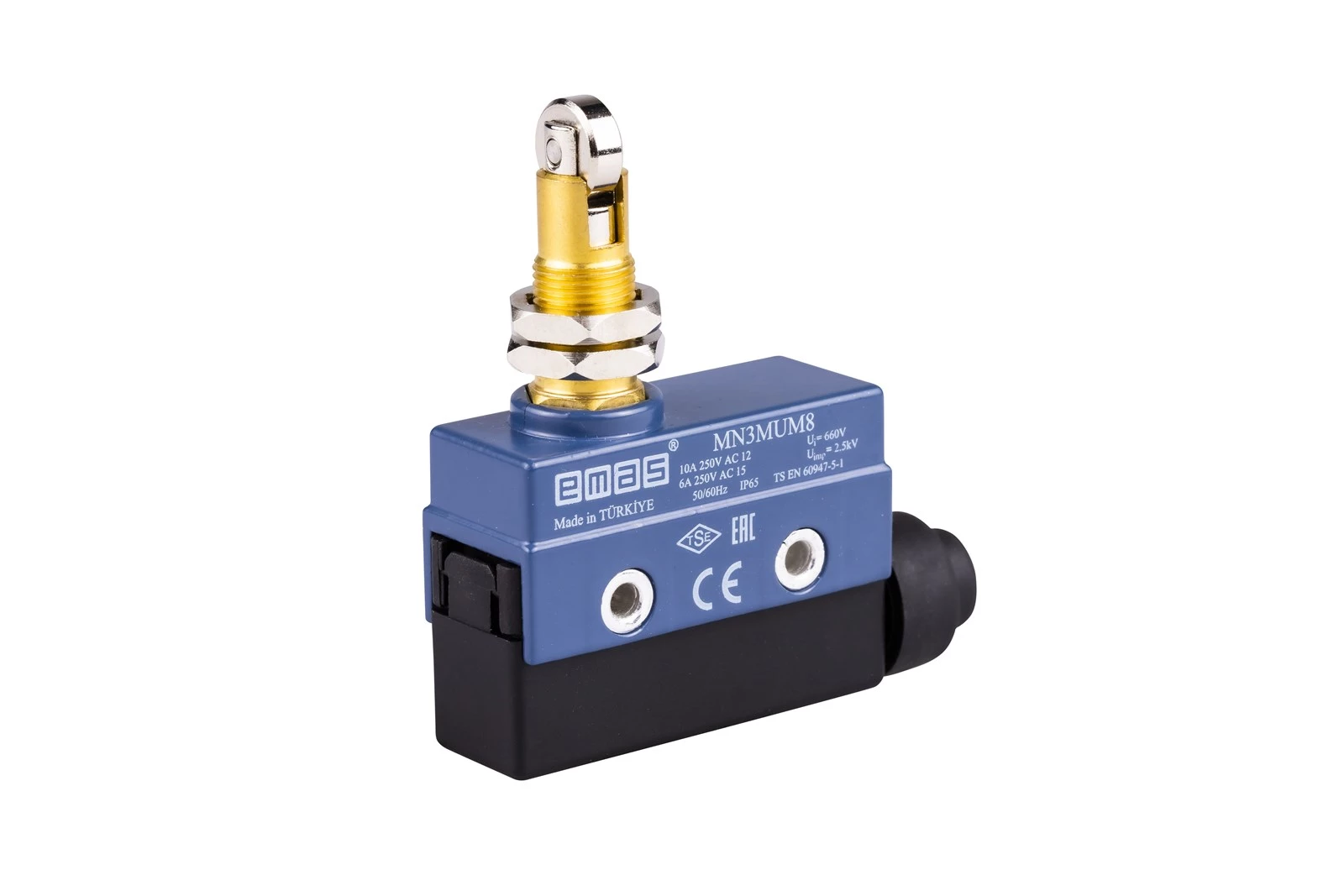

Metal Roller Plunger 1CO MN3 Series Metal Mini Switch

Metal Roller Plunger 1CO MN3 Series Metal Mini Switch

Product Code
MN3MUM8
Standard
TS EN 60947-5-1
Certificate
CE EAC SEPRO TSE UKCA
Downloads
  • Maximum product reliability and durability with metal housing
  • Different actuator options
  • Standard mounting holes
Metal Roller Plunger 1CO MN3 Series Metal Mini Switch
Product
Metal Mini Switch
Contact
1CO
Actuator
Roller Plunger
Current (Ie)
6 A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
500000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Insulation Voltage (Ui)
660V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1-2.5 mm²
Screw Torque
1,5 Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
MN3 Series
Actuator Material
Metal
