Product Details

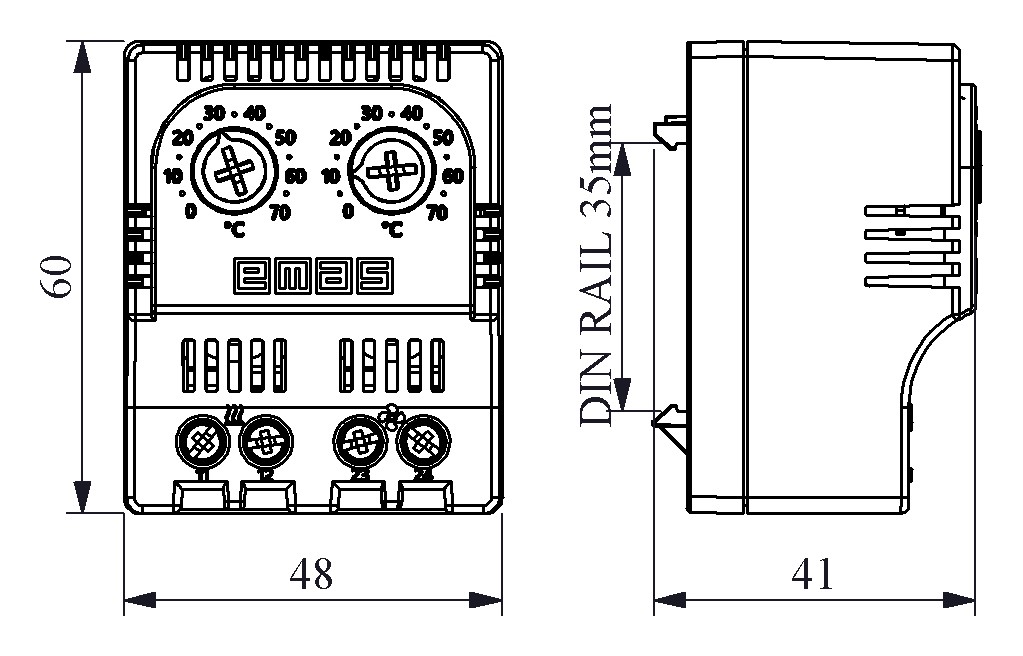

1NO+1NC Double Red-Blue PTM Series Thermostat 1NO+1NC Double Red-Blue PTM Series Thermostat

1NO+1NC Double Red-Blue PTM Series Thermostat

Product Code
PTM122
Standard
TS EN 60730-2-9
Certificate
CE EAC SEPRO UKCA
Downloads
  • Sensitive setting
  • Plastic housing, DIN rail mountable
1NO+1NC Double Red-Blue PTM Series Thermostat
1NO+1NC Double Red-Blue PTM Series Thermostat
Product
Thermostat
Feature
Double
Contact
1NO+1NC
Color
Red-Blue
Current (Ie)
10 A (230V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
50000
Electrical Life (Min Qty)
50000
Operating Frequency (On-Off/Hour)
Mech. 900 Elec. 900
Insulation Voltage (Ui)
300V
Dielectric Strength (Body-Contact)
1.000V AC
Dielectric Strength (Contact-Contact)
1.000V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP20
Contact Material
AgNi
Cable Section
1-2.5 mm²
Screw Torque
1,5 Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
PTM Series
