Product Details

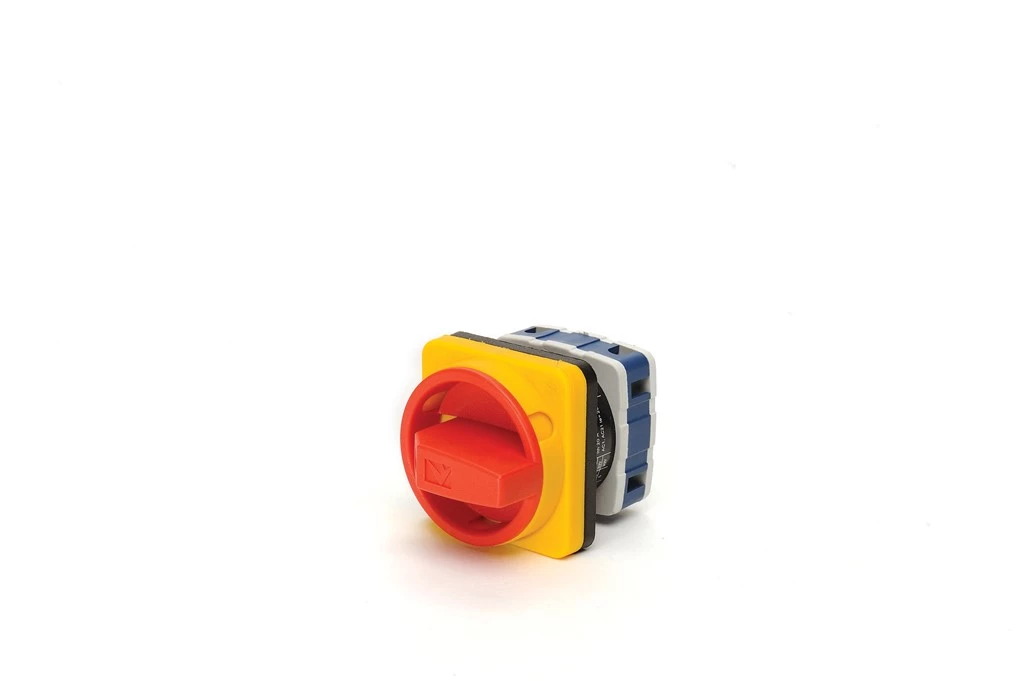

20A On-Off 1 Phase (0-1) 90° Safety 48*48 Cam Switch
Product Code
PSA020AK141E
Standard
TS EN 60947-3
Certificate
Downloads
Product
Cam Switch
Feature
Safety
Label/Position
(0-1)
Switch Type
On-Off
Pole / Phase
1 Phase
Frame Size
48*48
Current (Ie)
20A
Usage Category
AC21A
Mechanical Life (Min Qty)
100000
Electrical Life (Min Qty)
50000
Operating Frequency (On-Off/Hour)
Mech.120 Elec.120
Insulation Voltage (Ui)
690V
Impulse Withstand Voltage (Uimp)
4 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ MIN. (500 V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP54
Contact Material
AgNi
Cable Section
1-2,5 mm2
Spin Angle
90°
Short Circuit Breaking Capacity (Ics)
6 kA
Serial
PSA Series
