Product Details

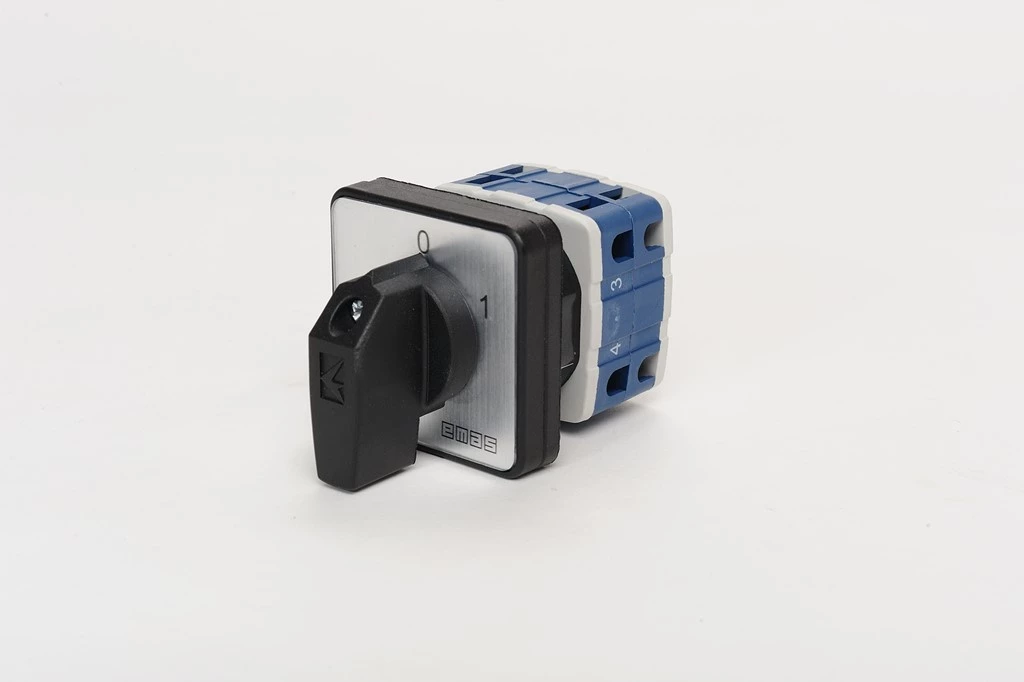

20AMotor Start 3 Phase (0-1) 60° 48*48 Cam Switch

20AMotor Start 3 Phase (0-1) 60° 48*48 Cam Switch

Product Code
PSA020MS331S
Standard
TS EN 60947-3
Certificate
CE EAC SEPRO TSE
Downloads
  • High precision
  • Variety of products for wide application fields
  • Long life time
  • Compact design
20AMotor Start 3 Phase (0-1) 60° 48*48 Cam Switch
Product
Cam Switch
Label/Position
(0-1)
Switch Type
Motor Start
Pole / Phase
3 Phase
Frame Size
48*48
Current (Ie)
20A
Usage Category
AC21A
Mechanical Life (Min Qty)
100000
Electrical Life (Min Qty)
50000
Operating Frequency (On-Off/Hour)
Mech.120 Elec.120
Insulation Voltage (Ui)
690V
Impulse Withstand Voltage (Uimp)
4 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ MIN. (500 V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP54
Contact Material
AgNi
Cable Section
1-2,5 mm2
Spin Angle
60°
Short Circuit Breaking Capacity (Ics)
6 kA
Serial
PSA Series
