Product Details

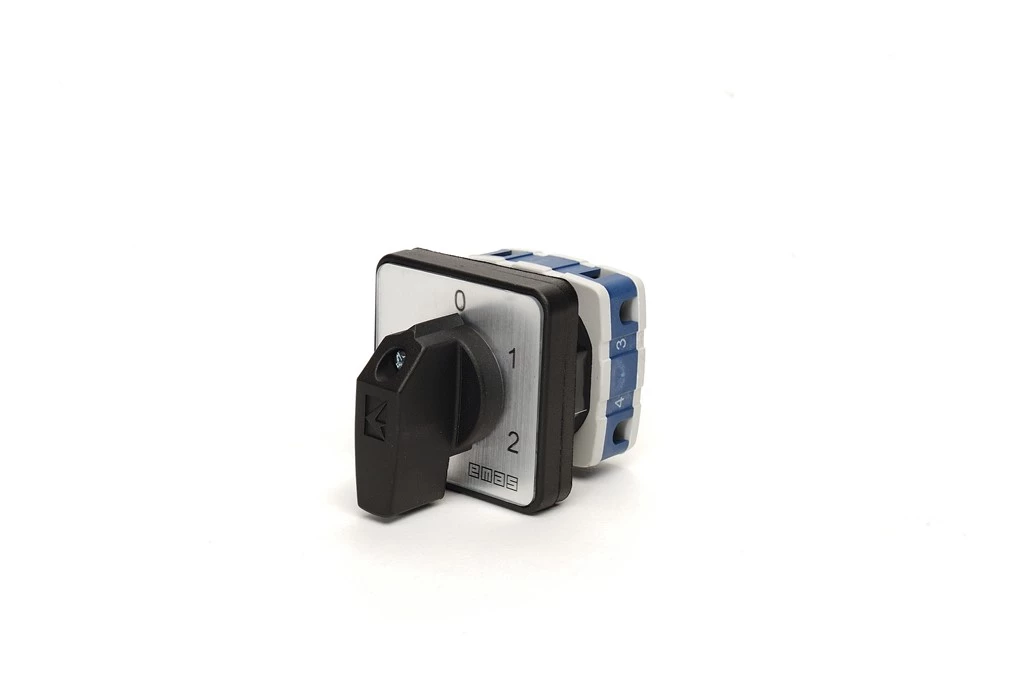

32A 2 Steps 1 Poles (0-1-2) 60° 64*64 Cam Switch
Product Code
PSA032KS132S
Standard
TS EN 60947-3
Certificate
Downloads
Product
Cam Switch
Label/Position
(0-1-2)
Switch Type
2 Steps
Pole / Phase
1 Poles
Frame Size
64*64
Current (Ie)
32A
Usage Category
AC21A
Mechanical Life (Min Qty)
100000
Electrical Life (Min Qty)
50000
Operating Frequency (On-Off/Hour)
Mech.120 Elec.120
Insulation Voltage (Ui)
690V
Impulse Withstand Voltage (Uimp)
4 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ MIN. (500 V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP54
Contact Material
AgNi
Cable Section
4 mm2
Spin Angle
60°
Short Circuit Breaking Capacity (Ics)
6 kA
Serial
PSA Series
