Product Details

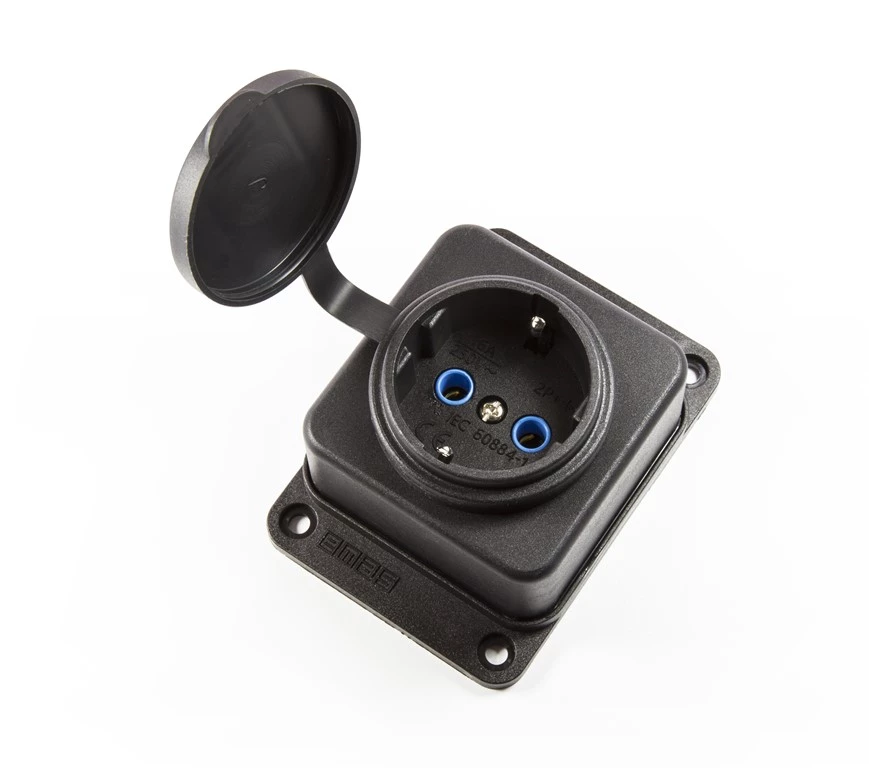

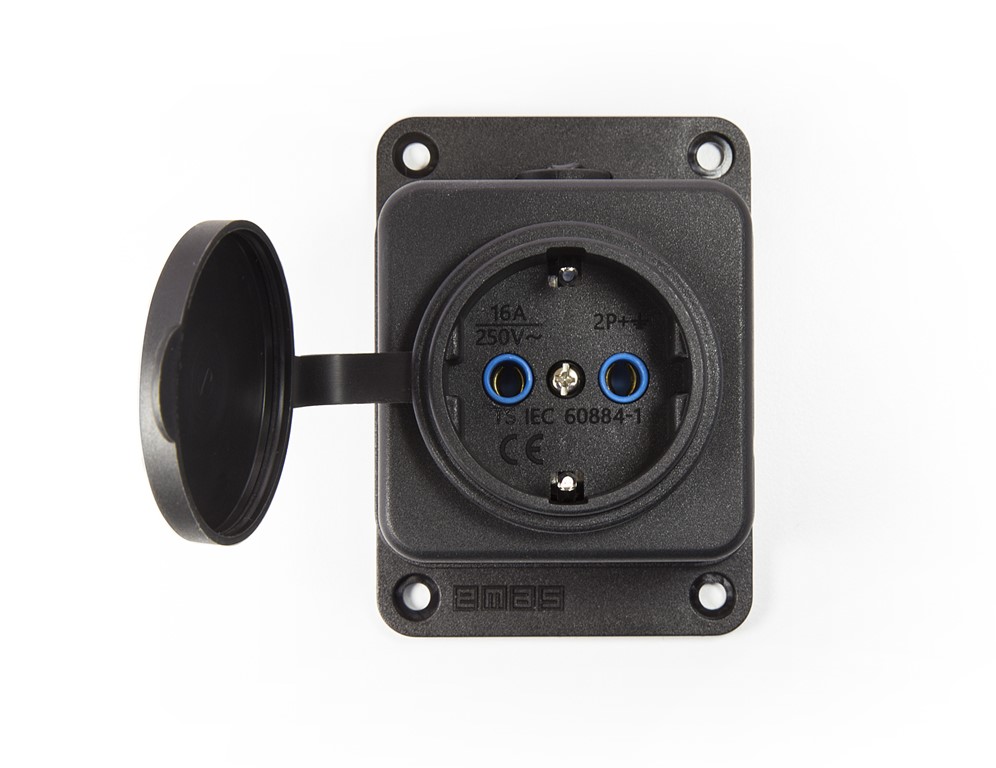

2P+E Wall Type Socket 16A Kauçuk Fiş Priz 2P+E Wall Type Socket 16A Kauçuk Fiş Priz

2P+E Wall Type Socket 16A Kauçuk Fiş Priz

Product Code
EKS116PG1
Standard
TS IEC 60884-1-A1+A2
Certificate
CE UKCA
Downloads
  • Monoblock durable rubber plastic housing
2P+E Wall Type Socket 16A Kauçuk Fiş Priz
2P+E Wall Type Socket 16A Kauçuk Fiş Priz
Operating Current
16A
Product
Kauçuk Fiş Priz
Type
Wall Type Socket
Contact
2P+E
Usage Category
AC15
Mechanical Life (Min Qty)
≥ 5.000
Electrical Life (Min Qty)
≥ 1.000
Operating Frequency (On-Off/Hour)
Mech.240 Elec.120
Insulation Voltage (Ui)
690V
Impulse Withstand Voltage (Uimp)
2 kV
Dielectric Strength (Body-Contact)
1890V AC
Dielectric Strength (Contact-Contact)
2000V AC
Isolation Resistance
10 MΩ MİN. (500 V DC)
Operating Temperature
-40 / +80 °C
Pollution Degree
2
Protection Degree
IP44
Production Time
31.12.1899 00:00:00
Serial
EKS Series
