  5. 2P+E Rail Type Socket 16A Red French Panel Type

Product Details

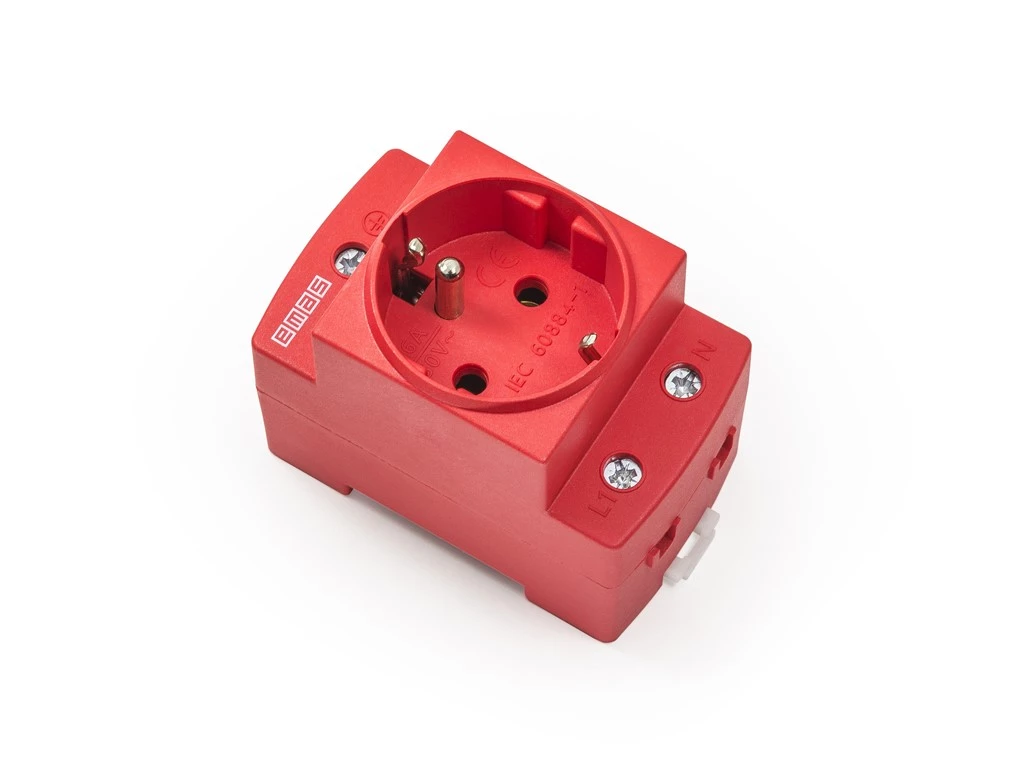

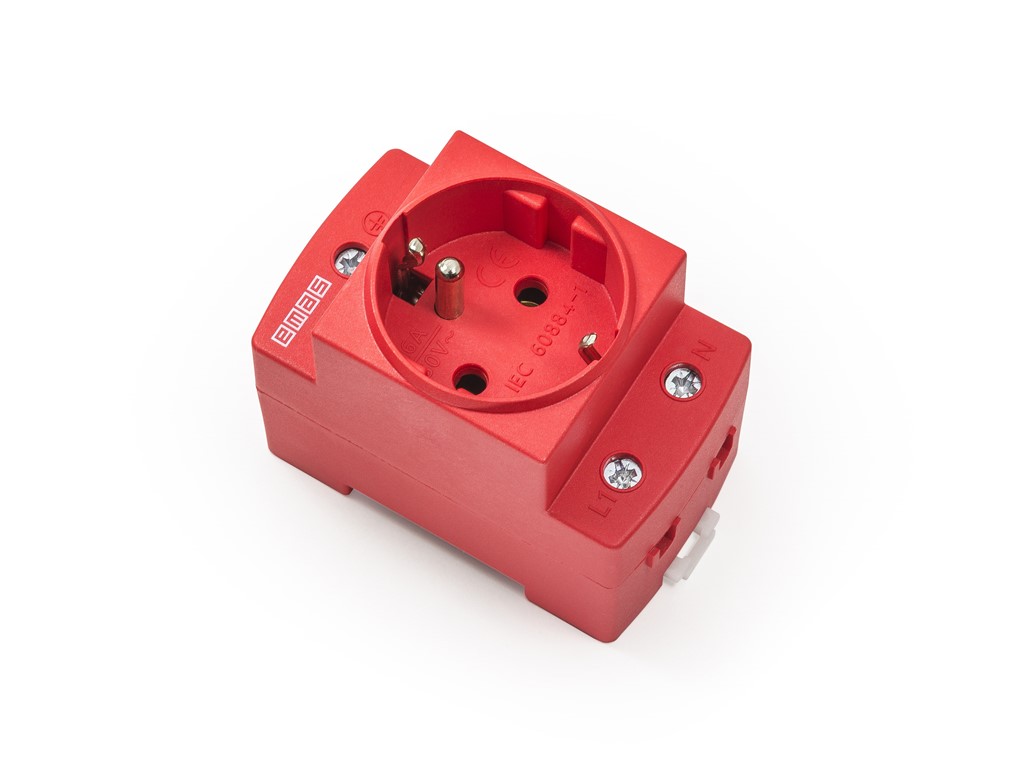

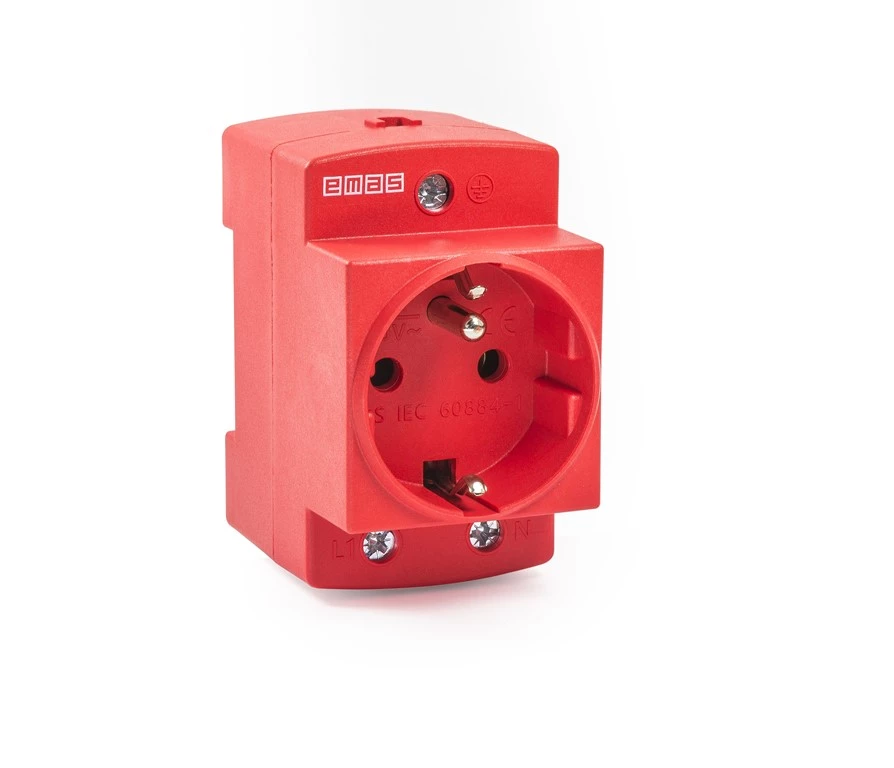

2P+E Rail Type Socket 16A Red French Panel Type 2P+E Rail Type Socket 16A Red French Panel Type

2P+E Rail Type Socket 16A Red French Panel Type

Product Code
EPRFR2K
Standard
TS IEC 60884-1-A1+A2
Certificate
CE UKCA
Downloads
    2P+E Rail Type Socket 16A Red French Panel Type
    2P+E Rail Type Socket 16A Red French Panel Type
    Operating Current
    16A
    Product
    Panel Type
    Type
    Rail Type Socket
    Feature
    French
    Contact
    2P+E
    Color
    Red
    Usage Category
    AC15
    Mechanical Life (Min Qty)
    ≥ 5.000
    Electrical Life (Min Qty)
    ≥ 1.000
    Operating Frequency (On-Off/Hour)
    Mech.240 Elec.120
    Insulation Voltage (Ui)
    690V
    Impulse Withstand Voltage (Uimp)
    2 kV
    Dielectric Strength (Body-Contact)
    1890V AC
    Dielectric Strength (Contact-Contact)
    2000V AC
    Isolation Resistance
    10 MΩ MİN. (500 V DC)
    Operating Temperature
    -40 / +125 °C
    Pollution Degree
    2
    Protection Degree
    IP20
    Production Time
    31.12.1899 00:00:00
    Serial
    Pano Prizi
