Product Details

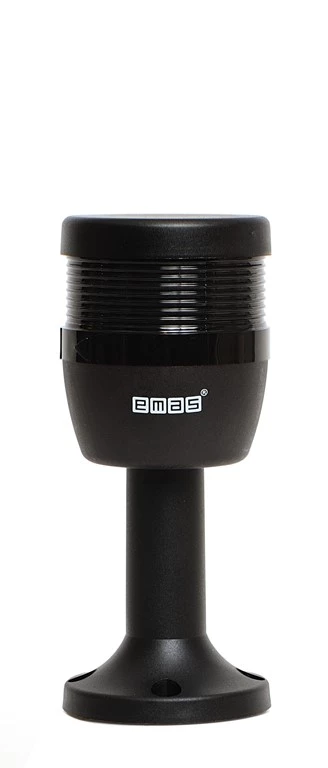

IK Series Single Level 220V AC With Buzzer 110mm Plastic Tube and Base LED Tower 70mm

IK Series Single Level 220V AC With Buzzer 110mm Plastic Tube and Base LED Tower 70mm

Product Code
IK70X220ZM01
Certificate
CE UKCA
Downloads
  • Heat resistant, clear vision Polycarbonate signal modules
  • Modular construction
  • Easy wiring
  • Variety of connection bases
IK Series Single Level 220V AC With Buzzer 110mm Plastic Tube and Base LED Tower 70mm
Weight (Gross with Carton) (Gr)
186
Bulb Type
LED
Operational Frequency
50 Hz
Operational Voltage
220V AC
Product
LED Tower 70mm
Mounting
110mm Plastic Tube and Base
Color
Single Level
Volume
90 dB
Power Consumption
0,35W
Operating Frequency (On-Off/Hour)
1 Hz
Insulation Voltage (Ui)
300V
Operating Temperature
-25 °C /+70 °C
Protection Degree
IP40
Cable Section
0,75-1,5 mm2
Screw Torque
1,8Nm
Lampholder Type
BA15S
Production Time
31.12.1899 00:00:00
Serial
IK Series
Buzzer
With Buzzer
Electrical Life (Min Hour)
10000
