Product Details

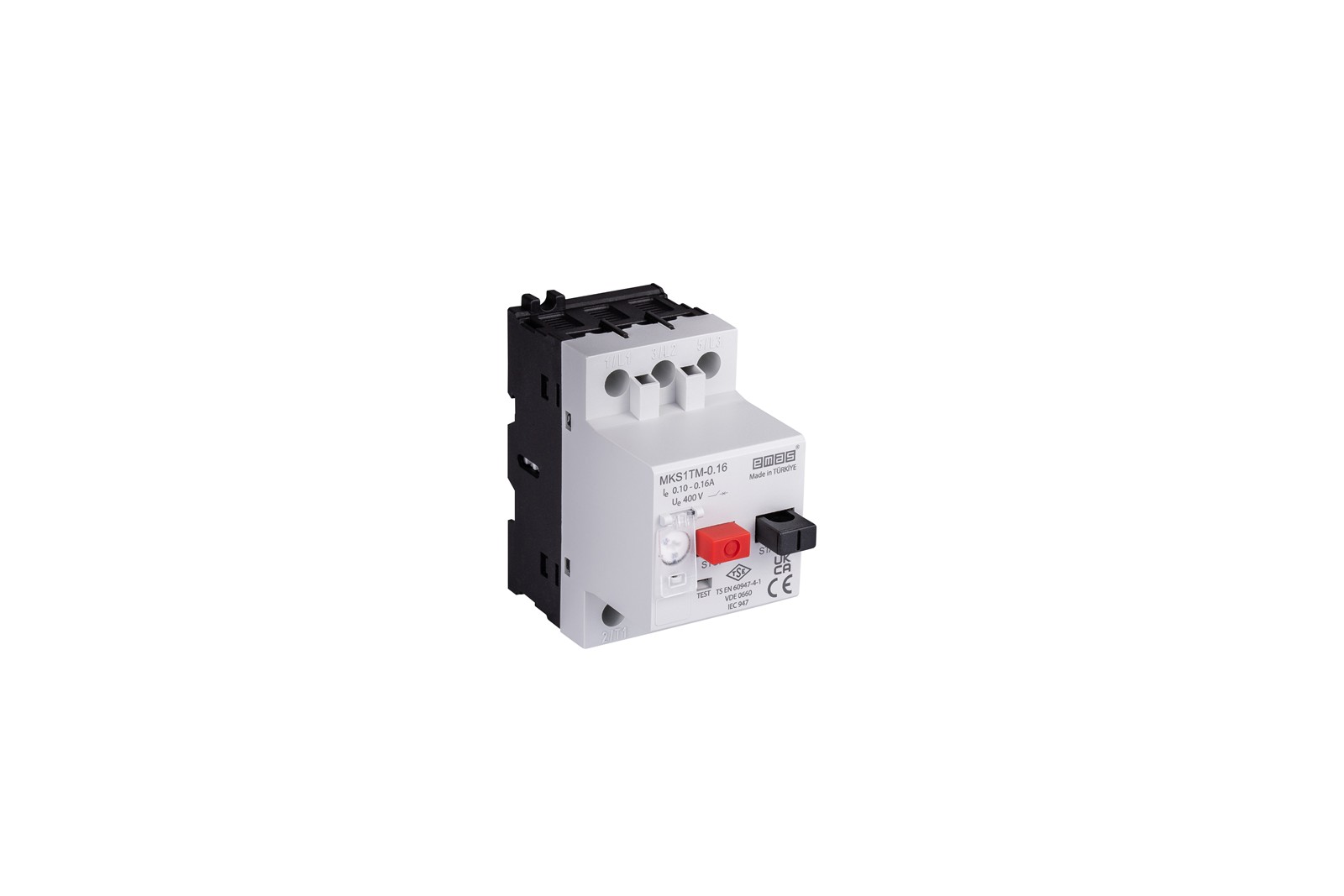

MKS Series 0,10-0,16A Motor Protection Switch

Product Code
MKS1TM-0.16
Standard
TS EN 60947-4-1
Certificate
CE EAC SEPRO TSE UKCA
Downloads
  • Adjustable overload release 13 ranges between 0.1-25 A
  • Short circuit release factor set at 12xle
  • Short circuit switching capacity minimum 6 kA / 400 V
Operational Frequency
50-60 Hz
Product
Motor Protection Switch
Current (Ie)
25 A
Thermic Current Calibration Interval
0,10-0,16A
Usage Category
AC 3
Mechanical Life (Min Qty)
100000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mek. 360 Elk. 360
Insulation Voltage (Ui)
690V AC
Impulse Withstand Voltage (Uimp)
6 kV
Dielectric Strength (Contact-Contact)
1890V
Isolation Resistance
10 MΩ MİN. (500 V DC)
Operating Temperature
-5 / +40 °C
Pollution Degree
3
Protection Degree
IP40
Cable Section
0,75-4 mm²
Screw Torque
1,8 Nm
Short Circuit Breaking Capacity (Ics)
6 kA
Serial
MKS Series
