Product Details

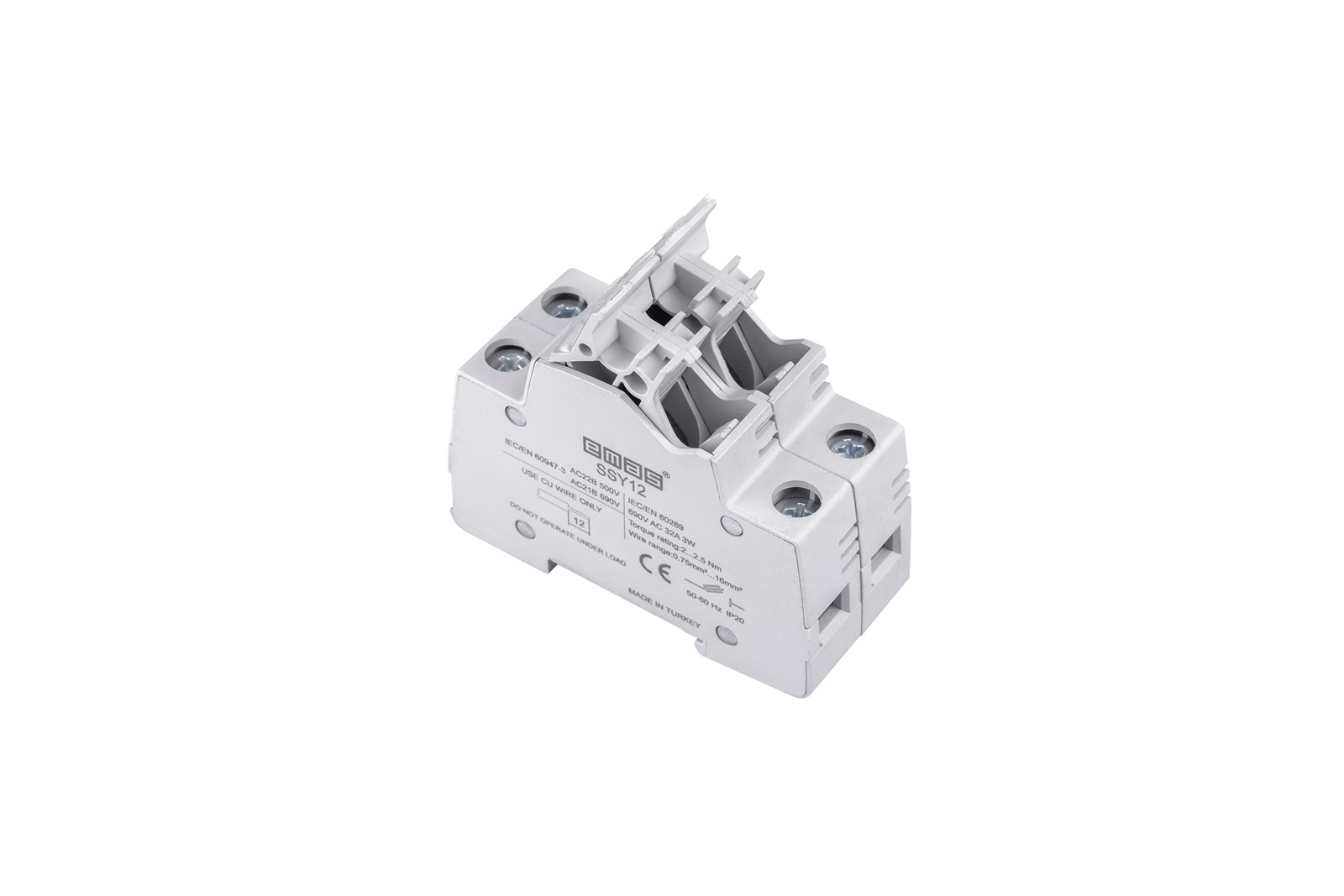

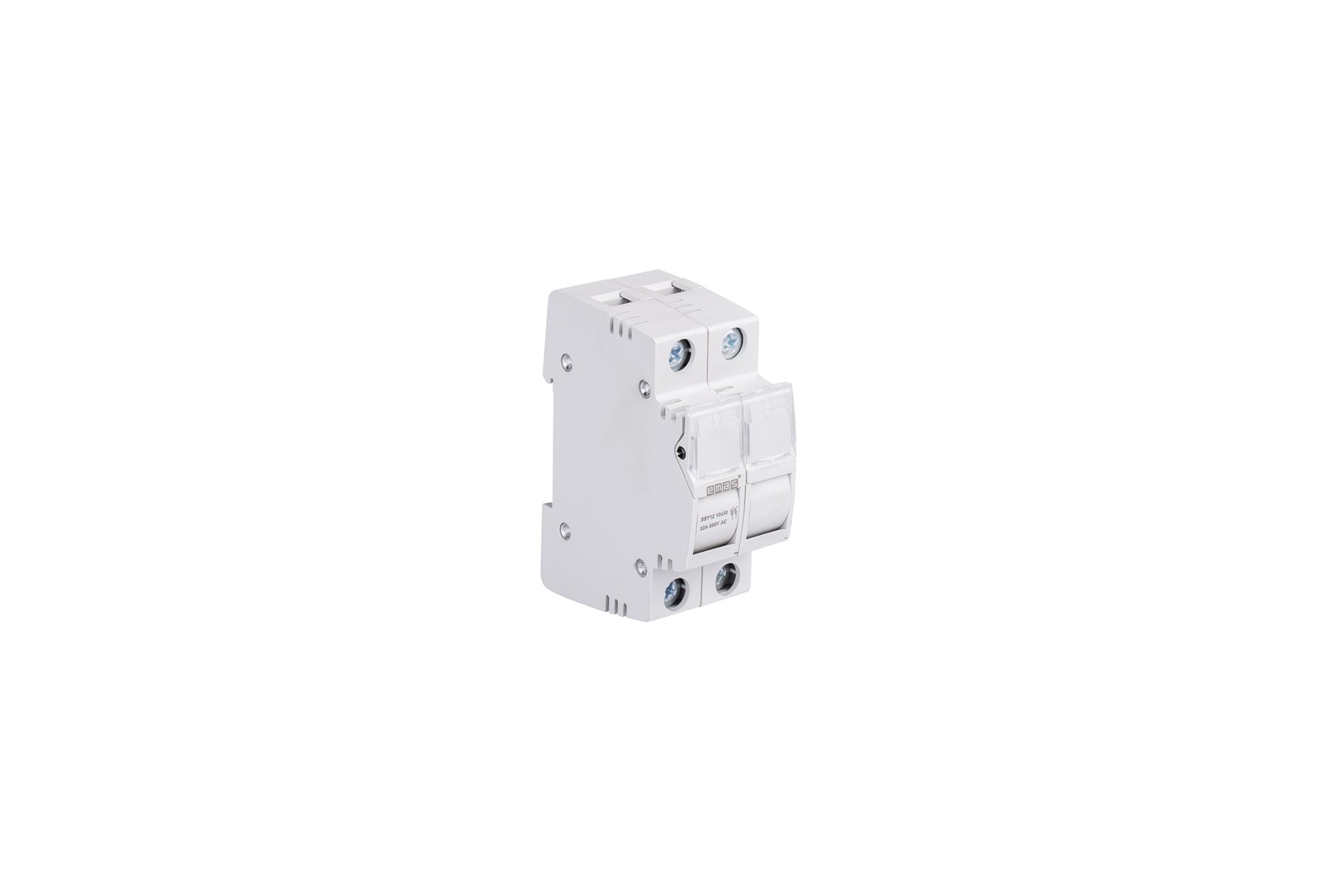

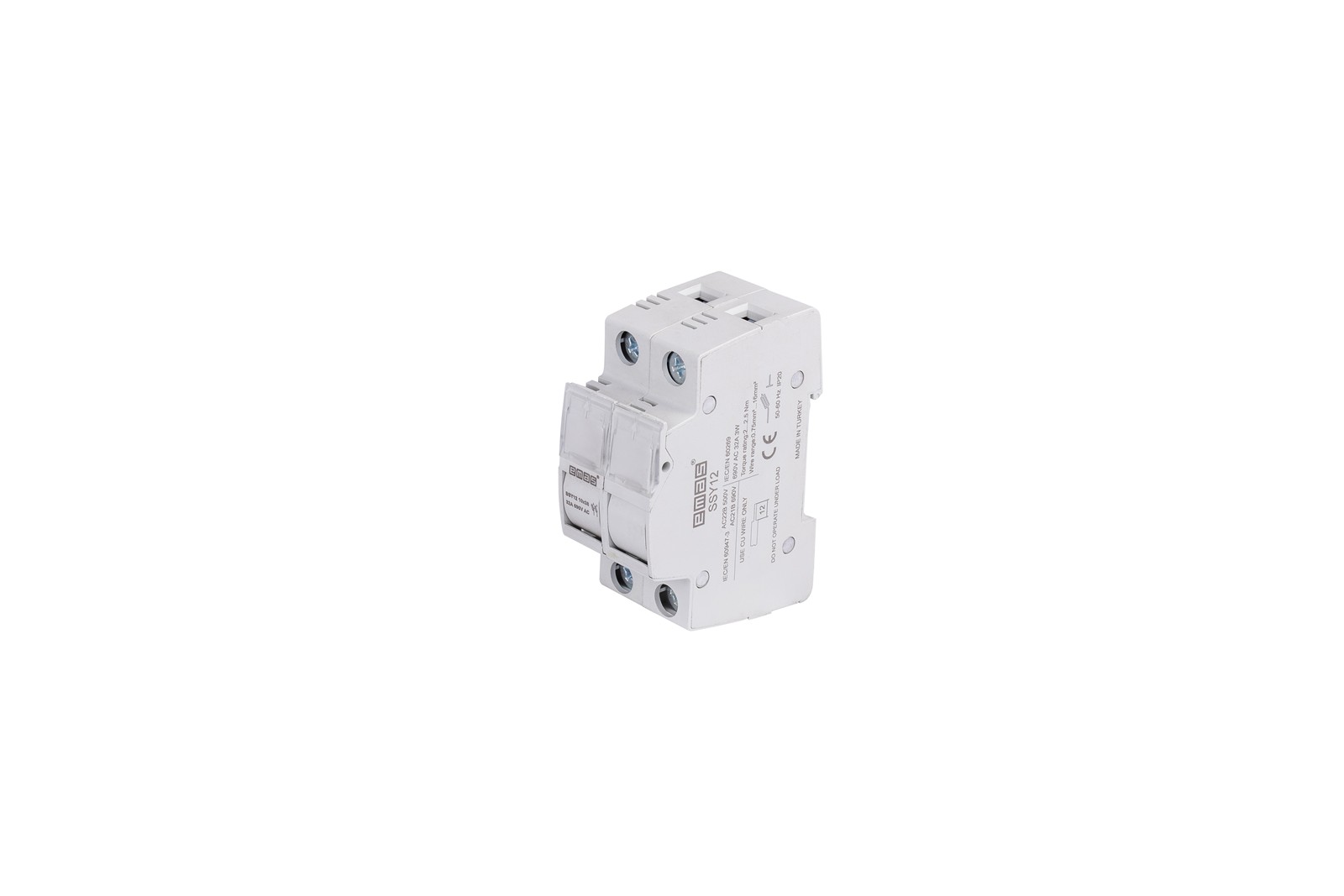

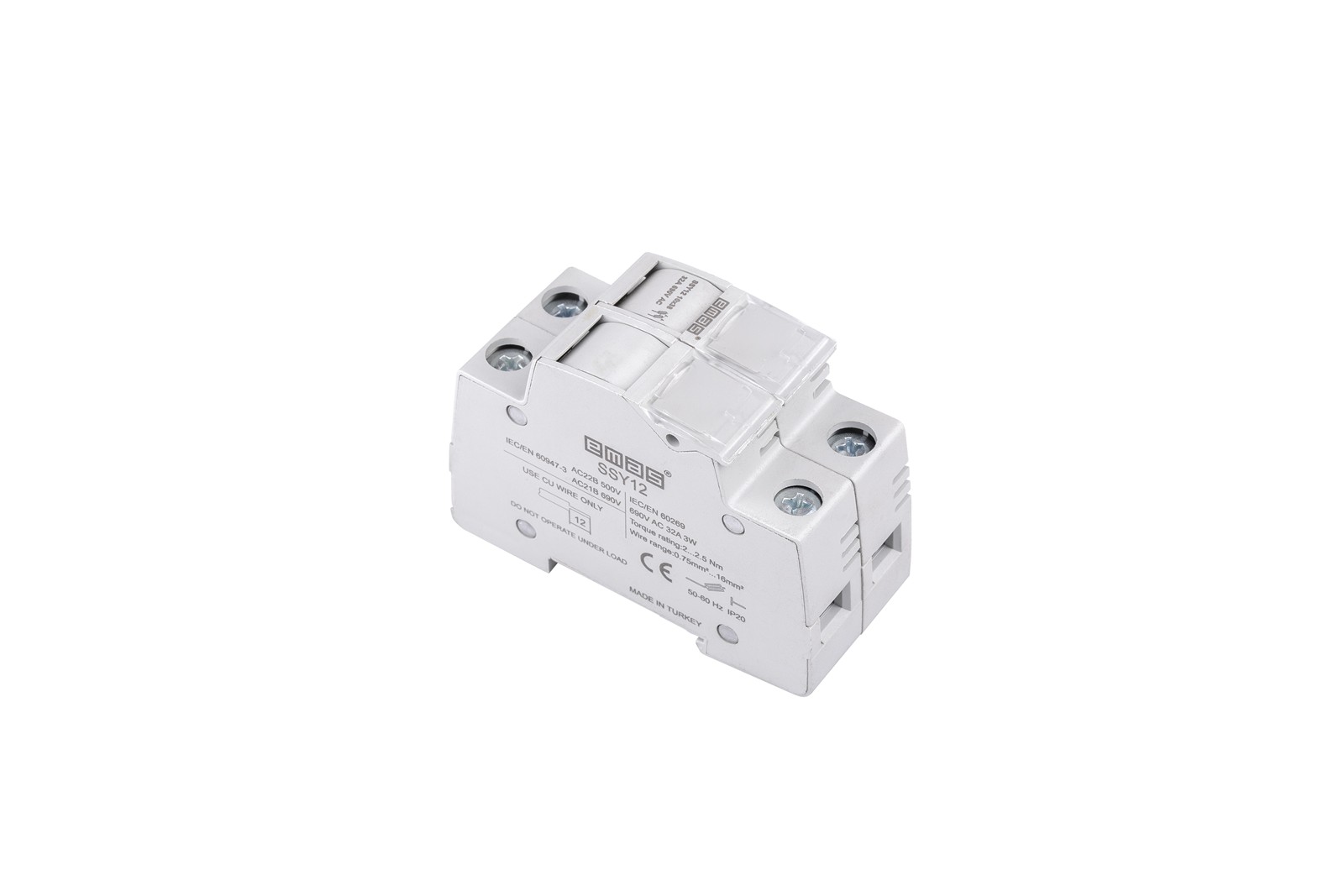

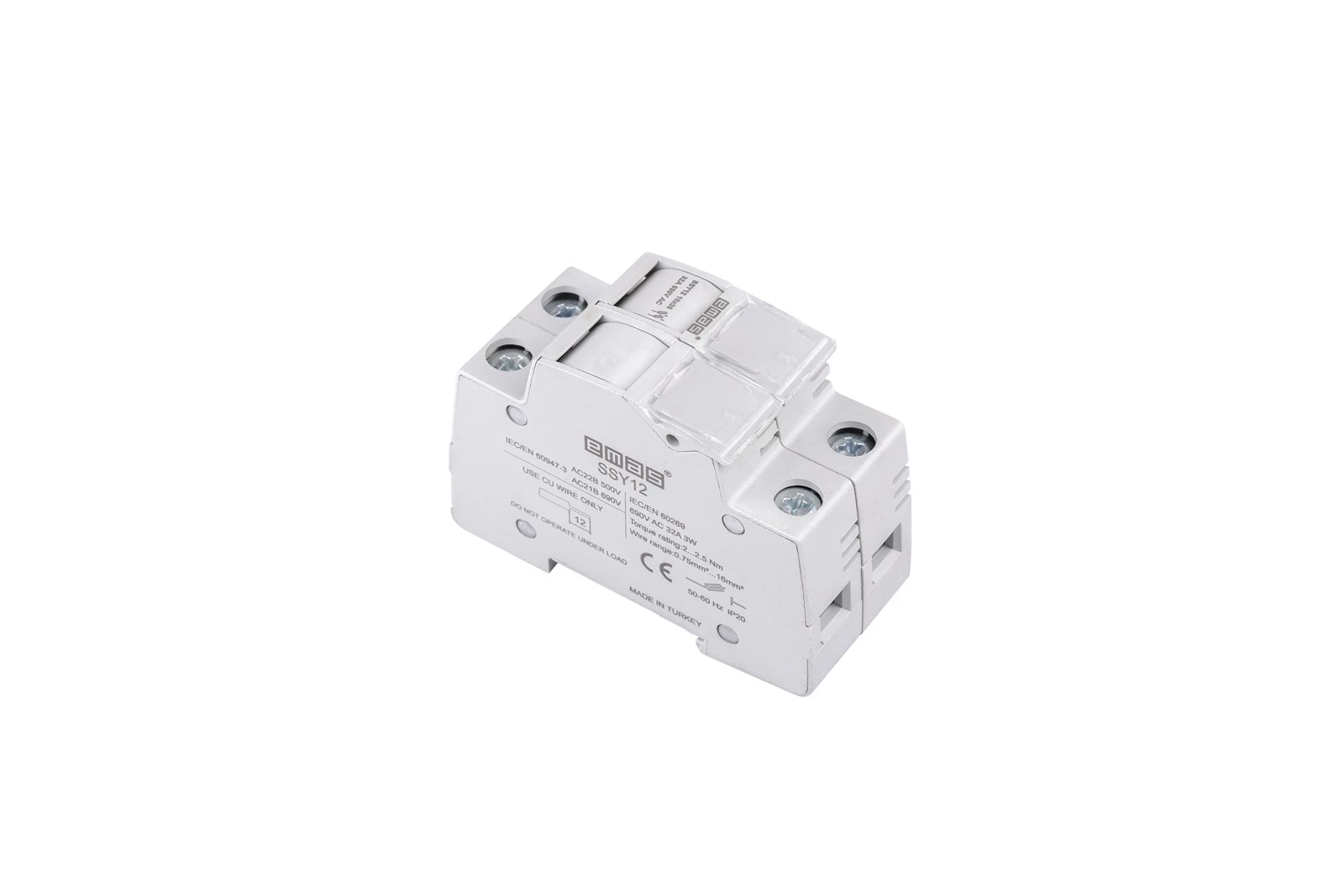

SSY Series 10*38 mm Cylindrical Fuse holders 2P

Product Code
SSY12
Standard
TS EN 60269-1/2
Certificate
CE UKCA
Downloads
    Operational Frequency
    50-60 Hz
    Product
    Cylindrical Fuse holders 2P
    Feature
    10*38 mm
    Current (Ie)
    32A (690 V)
    Usage Category
    AC21B
    Mechanical Life (Min Qty)
    1700
    Electrical Life (Min Qty)
    300
    Insulation Voltage (Ui)
    690V AC
    Impulse Withstand Voltage (Uimp)
    6 kV
    Dielectric Strength (Contact-Contact)
    1890V
    Isolation Resistance
    10 MΩ MİN. (500 V DC)
    Operating Temperature
    -20 / +70 °C
    Pollution Degree
    3
    Protection Degree
    IP20
    Cable Section
    0,75-16 mm²
    Screw Torque
    2,5 Nm
    Short Circuit Breaking Capacity (Ics)
    100 kA
    Production Time
    PA6.6 base non-flammable body; 35 mm rail assembly
    Serial
    SSY Series
