Product Details



SSY Series 10*38 mm Cylindrical Fuse holders 3P + N SSY Series 10*38 mm Cylindrical Fuse holders 3P + N SSY Series 10*38 mm Cylindrical Fuse holders 3P + N SSY Series 10*38 mm Cylindrical Fuse holders 3P + N

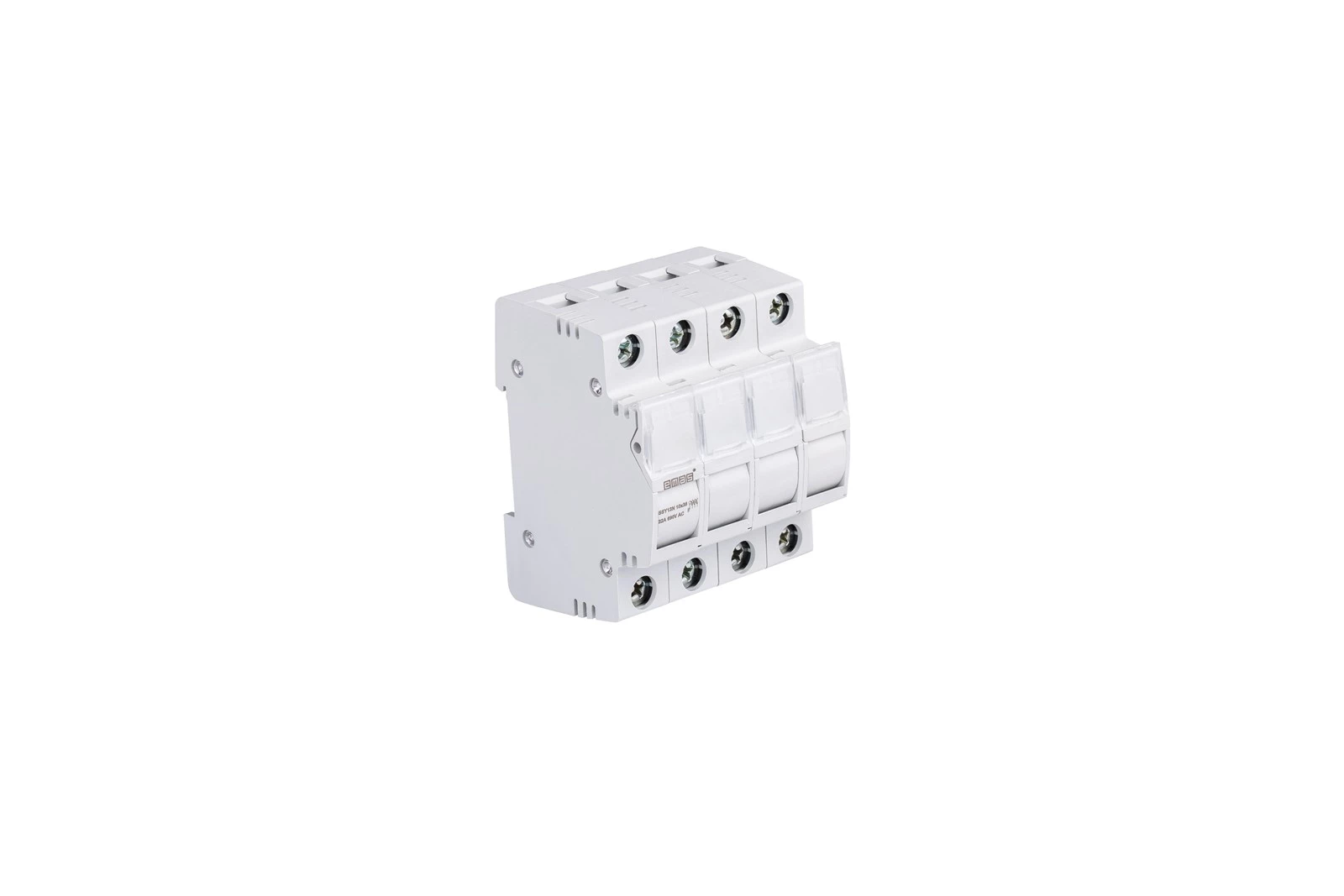

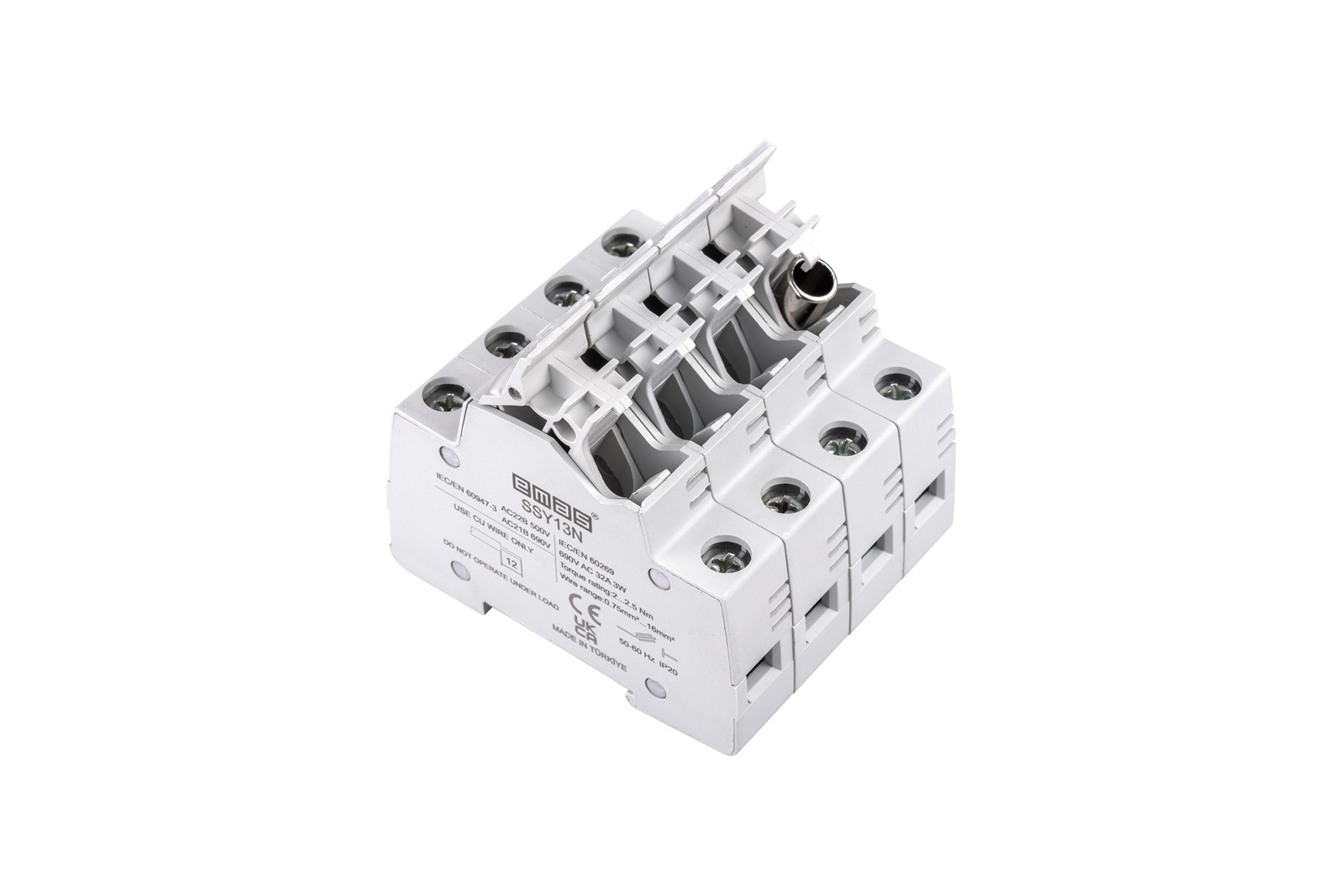

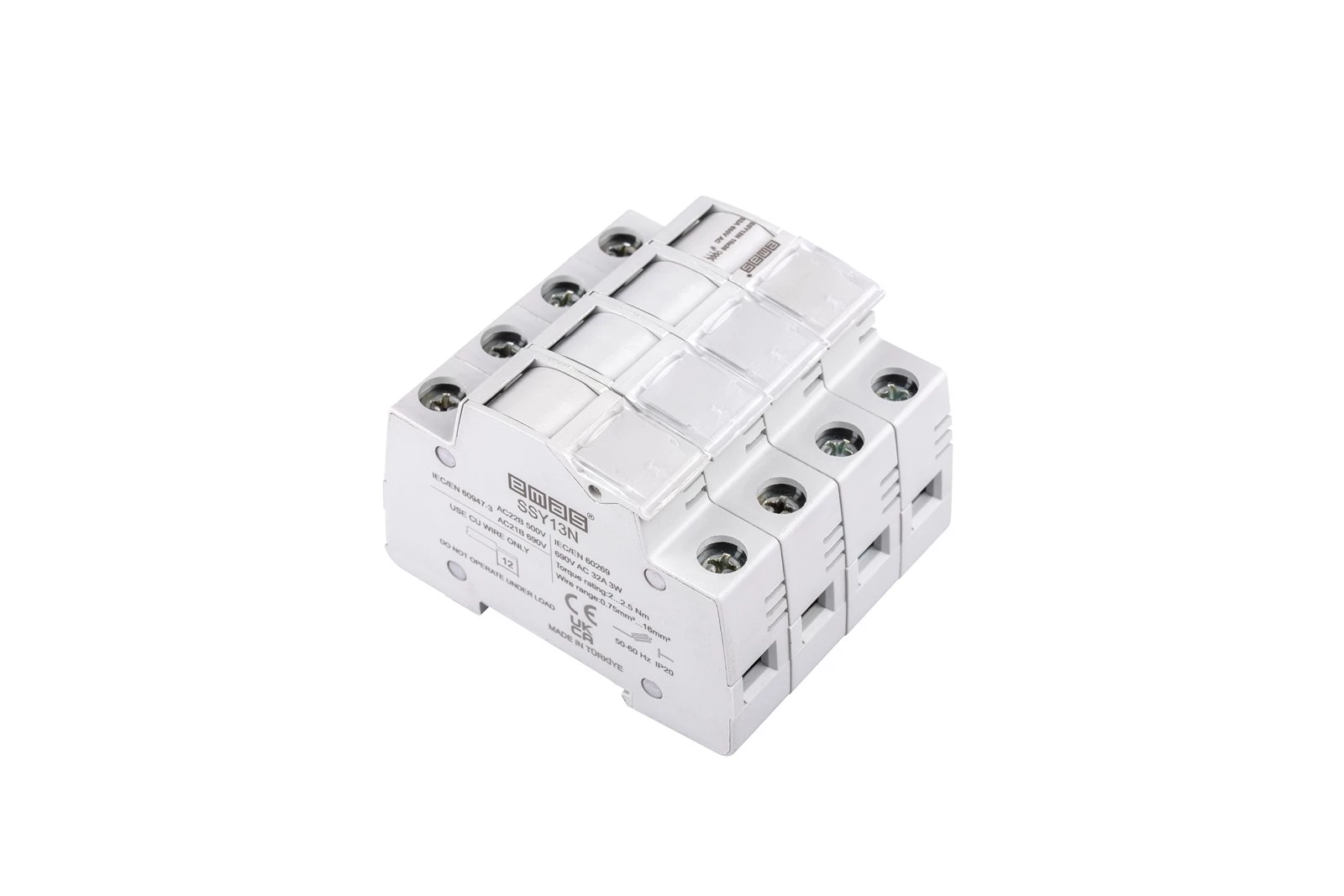

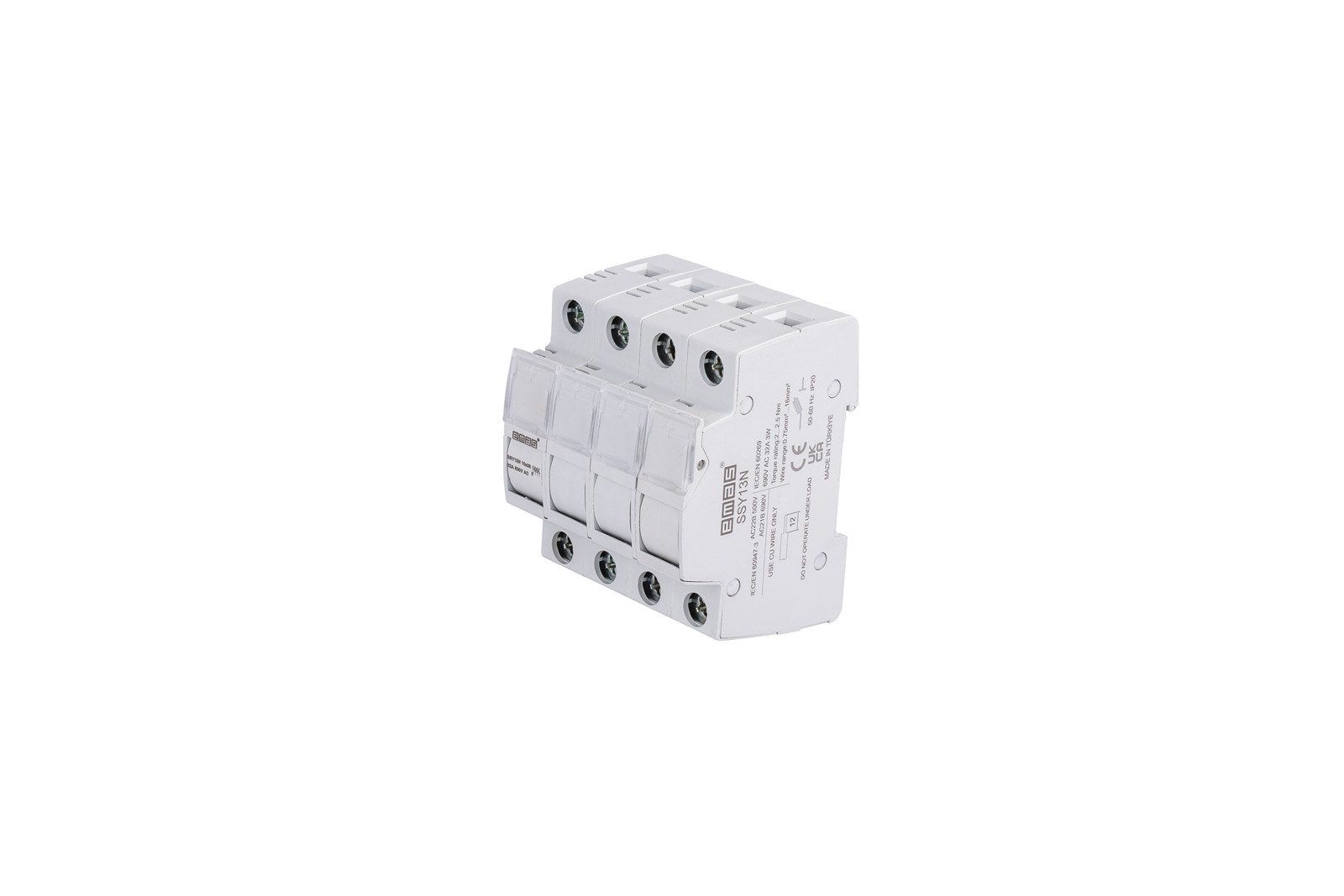

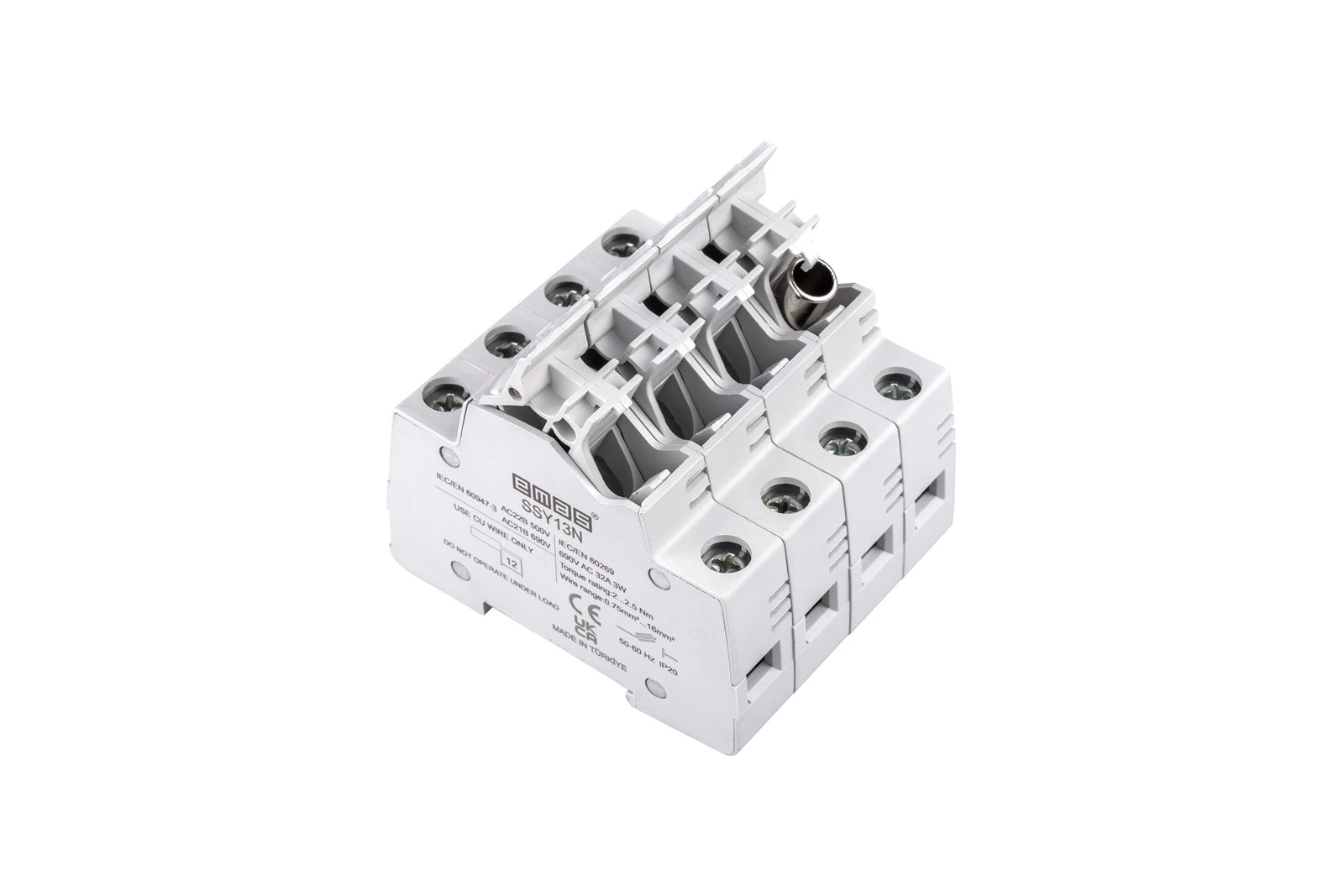

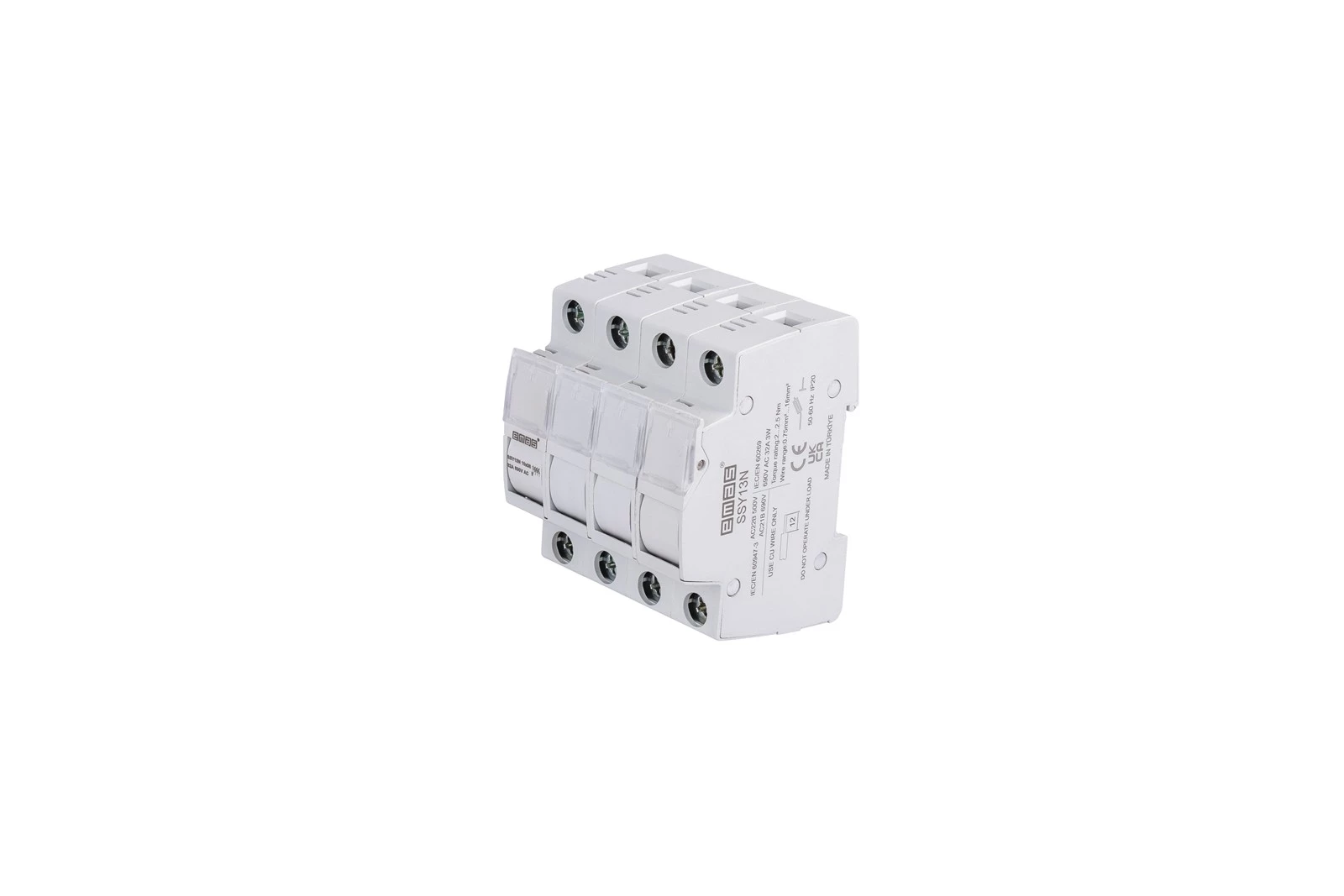

SSY Series 10*38 mm Cylindrical Fuse holders 3P + N

Product Code
SSY13N
Standard
TS EN 60269-1/2
Certificate
CE UKCA
Downloads
  • V0 PA 6.6 material
  • Special labelling area for code writing
  • Can be mounted on DIN 35 mm mounting rail
SSY Series 10*38 mm Cylindrical Fuse holders 3P + N
SSY Series 10*38 mm Cylindrical Fuse holders 3P + N
SSY Series 10*38 mm Cylindrical Fuse holders 3P + N
SSY Series 10*38 mm Cylindrical Fuse holders 3P + N
Product
Cylindrical Fuse holders 3P + N
Serial
SSY Series
Feature
10*38 mm
Operational Frequency
50-60 Hz
Current (Ie)
32A (690 V)
Usage Category
AC21B
Mechanical Life (Min Qty)
1700
Electrical Life (Min Qty)
300
Insulation Voltage (Ui)
690V AC
Impulse Withstand Voltage (Uimp)
6 kV
Dielectric Strength (Contact-Contact)
1890V
Isolation Resistance
10 MΩ MİN. (500 V DC)
Operating Temperature
-20 / +70 °C
Pollution Degree
3
Protection Degree
IP20
Cable Section
0,75-16 mm²
Screw Torque
2,5 Nm
100 kA
Production Time
1.03.2021 00:00:00
