Product Details

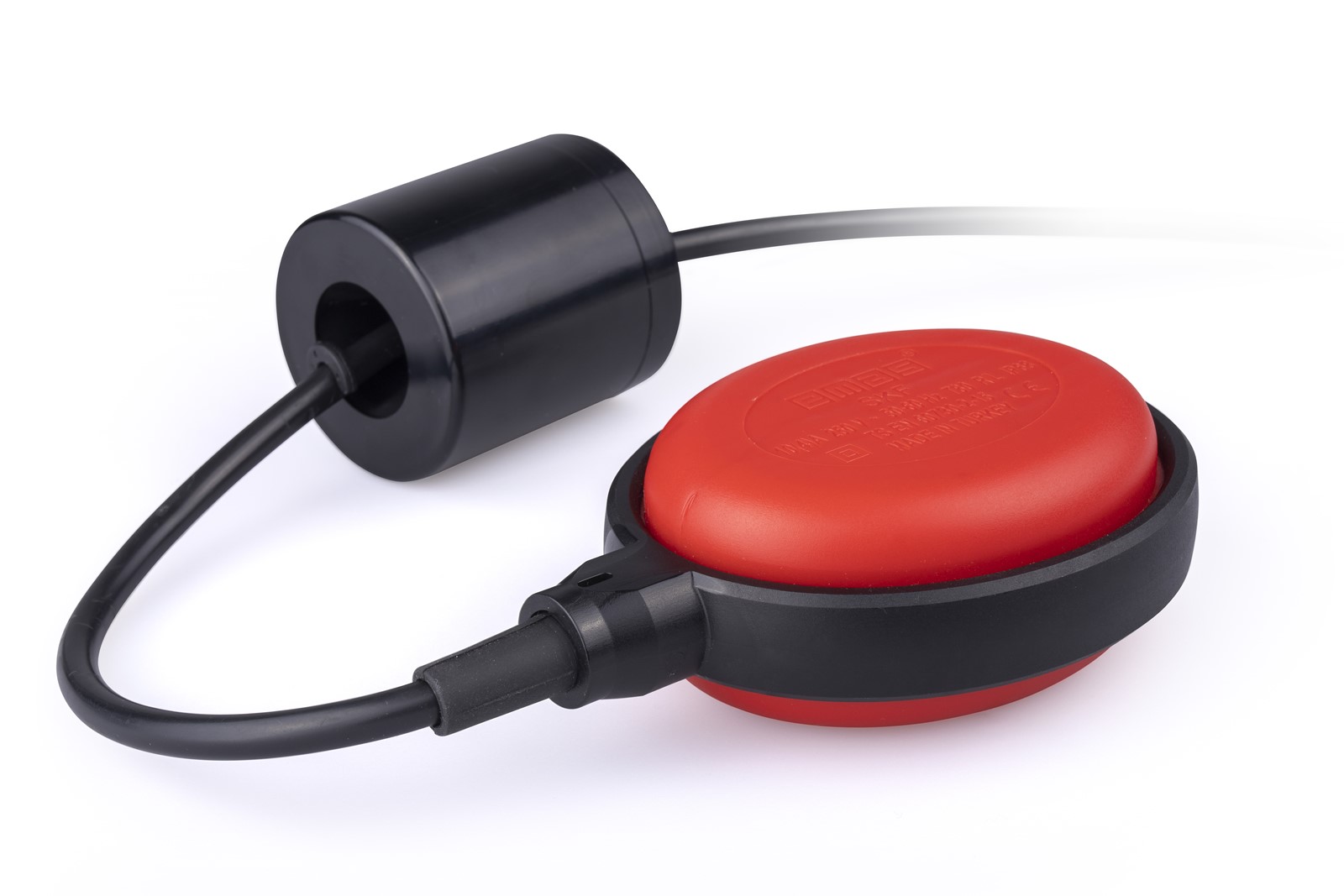

SKF1E Series 1 Phase 0,50m Neoprene Elips With Standard Weight Level Control Float Switch

SKF1E Series 1 Phase 0,50m Neoprene Elips With Standard Weight Level Control Float Switch

Product Code
SKF1E-0.5N
Standard
TS EN 60730-2-15
Certificate
CE SEPRO
Downloads
  • Easy assembly
  • Feature to adjust the requested operation interval with weight
  • Different cable lenghth options
  • Waterproof
SKF1E Series 1 Phase 0,50m Neoprene Elips With Standard Weight Level Control Float Switch
Product
Level Control Float Switch
Type
Elips
Feature
With Standard Weight
Cable
0,50m
Phase Number
1 Phase
Current (Ie)
6 A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
30000
Electrical Life (Min Qty)
10000
Operating Frequency (On-Off/Hour)
Mek.120 Elk.120
Insulation Voltage (Ui)
660V
Impulse Withstand Voltage (Uimp)
2.75 kV
Dielectric Strength (Body-Contact)
2750V AC
Dielectric Strength (Contact-Contact)
1890V AC
Isolation Resistance
10 MΩ MİN. (500 V DC)
Operating Temperature
-15 / + 80 °C
Protection Degree
IP68
Contact Material
AgNi
Cable Section
3*1 mm Kablo
Production Time
1.03.2022 00:00:00
Serial
SKF1E Series
Cable Type
Neoprene
