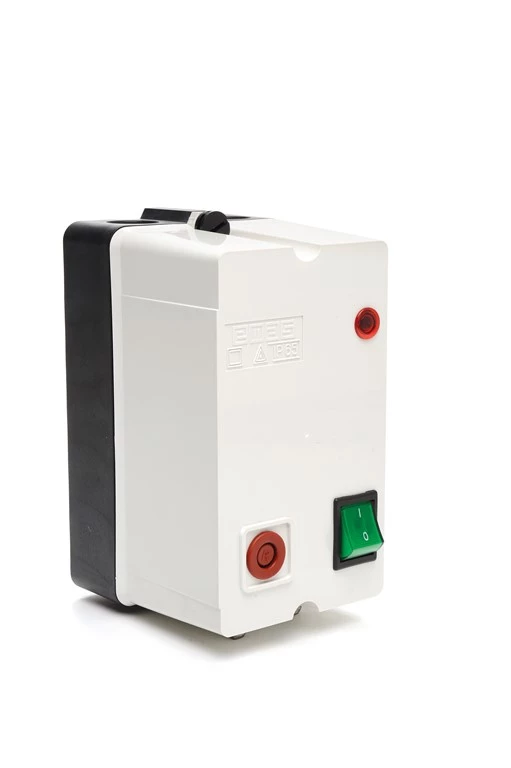

HJ Series 9A 380-400V/50-60HZ with Rocker+Reset Button+Pilot 3,60-5,40A Contactor with Thermic in Box

HJ Series 9A 380-400V/50-60HZ with Rocker+Reset Button+Pilot 3,60-5,40A Contactor with Thermic in Box

Product Code
HJ11A09WL
Certificate
CE SEPRO
Downloads
  • High switching capacity
  • From 9A to 55A with 3 different sizes
  • Temperature compensated
HJ Series 9A 380-400V/50-60HZ with Rocker+Reset Button+Pilot 3,60-5,40A Contactor with Thermic in Box
Operational Frequency
50 - 60Hz
Product
Contactor with Thermic in Box
Current (Ie)
9A
Thermic Current Calibration Interval
3,60-5,40A
Usage Category
AC 3
Mechanical Life (Min Qty)
100000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 600 Elec. 600
Insulation Voltage (Ui)
690V AC
Impulse Withstand Voltage (Uimp)
6 kV
Dielectric Strength (Body-Contact)
1890V AC
Dielectric Strength (Contact-Contact)
1890V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-5 / +40 °C
Pollution Degree
3
Protection Degree
IP30
Cable Section
1,5 mm²
Screw Torque
1,8 Nm
Short Circuit Breaking Capacity (Ics)
50 kA
Serial
HJ Series
Voltage
380-400V/50-60HZ
Enclosure
with Rocker+Reset Button+Pilot
