Product Details

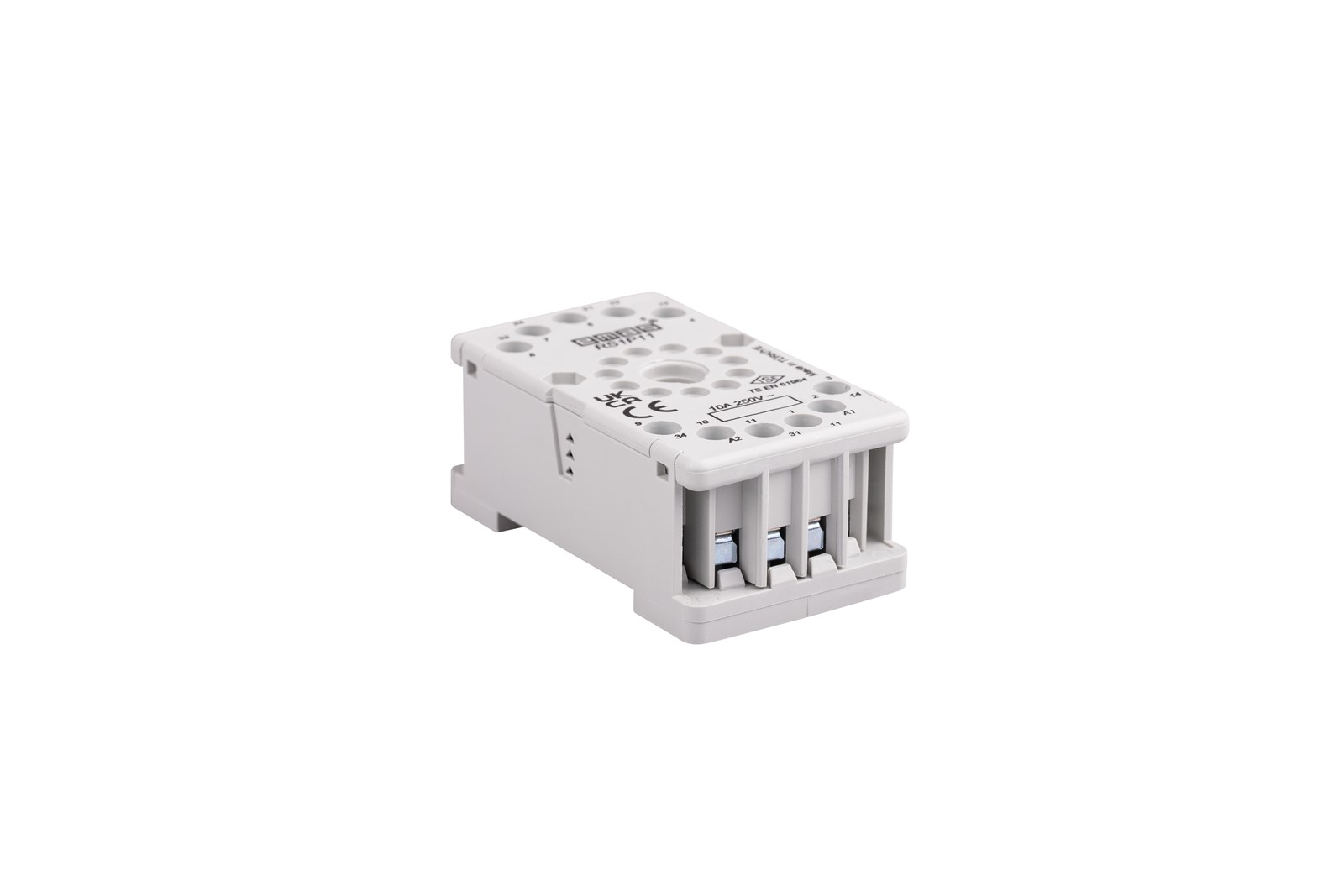

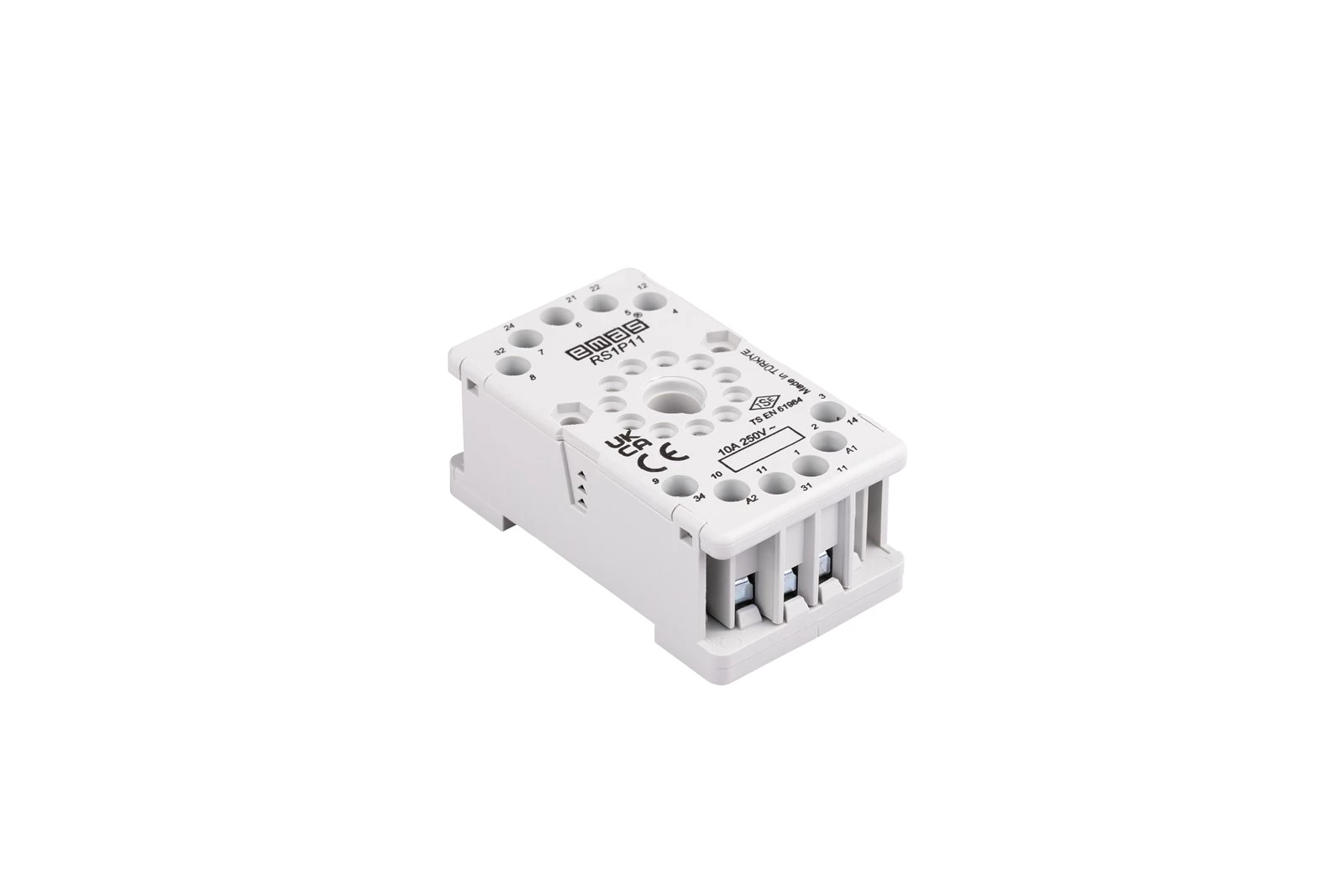

RS1 Series 11 Pin Grey Relay Socket RS1 Series 11 Pin Grey Relay Socket

RS1 Series 11 Pin Grey Relay Socket

Product Code
RS1P11G1
Standard
TS EN 61984
Certificate
CE EAC SEPRO TSE UKCA
Downloads
  • V0 PA 6.6 material
  • Can be mounted on DIN 35 mm mounting rail
  • Perfect compatibility with industrial and electronic relays
  • Different color options
RS1 Series 11 Pin Grey Relay Socket
RS1 Series 11 Pin Grey Relay Socket
Product
Relay Socket
Serial
RS1 Series
Pin
11 Pin
Color
Grey
Current (Ie)
10 A (250V AC)
Usage Category
AC15
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
1,5kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
MIN. 10 MΩ (500 V DC)
Operating Temperature
-15 / +80 °C
Pollution Degree
3
Protection Degree
IP40
Contact Material
MS70
Cable Section
1-2,5 mm2
Screw Torque
1.5Nm
