Product Details

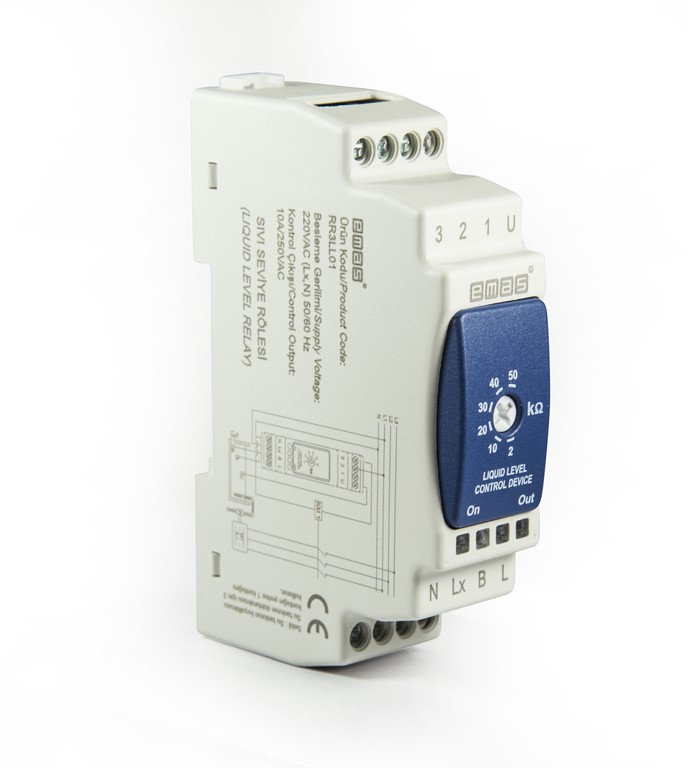

RR3 SeriesRail Mount 230VAC 1CO 10A (rezistif) Analog Liquid Level Electronic Relay

RR3 SeriesRail Mount 230VAC 1CO 10A (rezistif) Analog Liquid Level Electronic Relay

Product Code
RR3LL01
Certificate
CE UKCA
Downloads
  • Compact design
  • Fast and silent switching
  • Long life
  • Fingerproof design
RR3 SeriesRail Mount 230VAC 1CO 10A (rezistif) Analog Liquid Level Electronic Relay
Operational Frequency
50/60Hz
Operational Voltage
230VAC
Product
Electronic Relay
Control
Analog
Type
Liquid Level
Mounting
Rail Mount
Contact
1CO
Current (Ie)
10A (rezistif)
Power Consumption
< 1 VA
Mechanical Life (Min Qty)
10000000
Electrical Life (Min Qty)
100000
Impulse Withstand Voltage (Uimp)
300V
Isolation Resistance
Min. 10 MOhm
Operating Temperature
-5°C...+55°C
Protection Degree
IP20
Output Type
1 pcs relay 10A/250V AC
Sensitivity
2-50 kOhm adjustable
Serial
RR3 Series
