  5. RR3 SeriesRail Mount 230VAC 1CO 10A (rezistif) Phase Sequence %5-%15 Analog Motor Protection Electronic Relay

Product Details

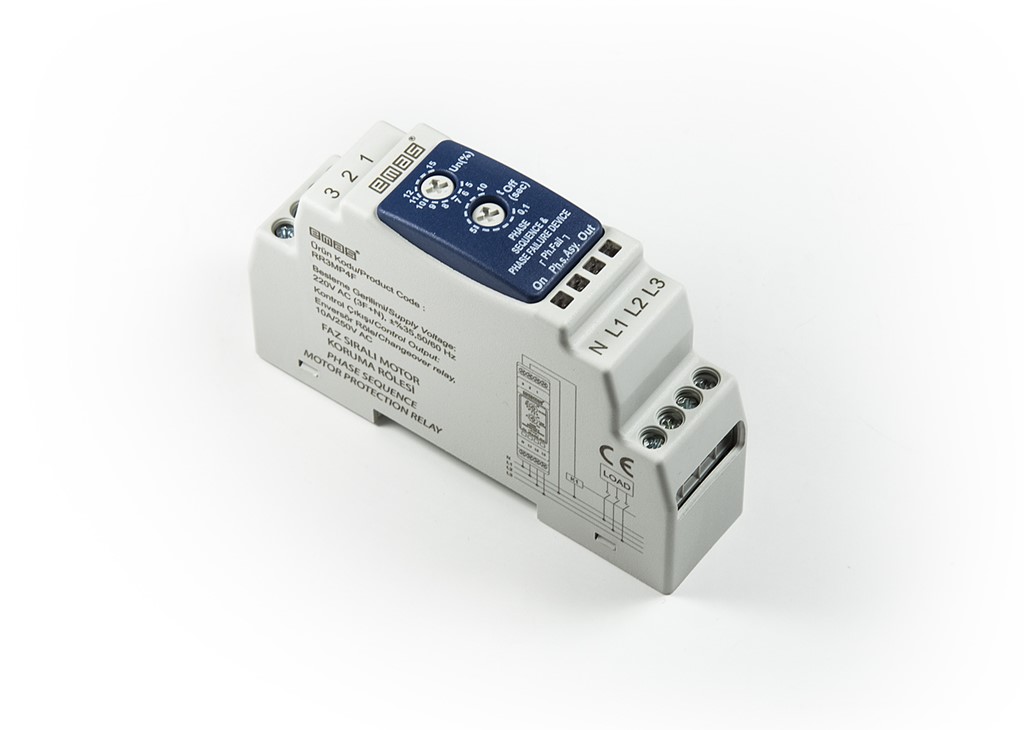

RR3 SeriesRail Mount 230VAC 1CO 10A (rezistif) Phase Sequence %5-%15 Analog Motor Protection Electronic Relay

RR3 SeriesRail Mount 230VAC 1CO 10A (rezistif) Phase Sequence %5-%15 Analog Motor Protection Electronic Relay

Product Code
RR3MP4F
Certificate
CE UKCA
Downloads
  • Compact design
  • Fast and silent switching
  • Long life
  • Fingerproof design
RR3 SeriesRail Mount 230VAC 1CO 10A (rezistif) Phase Sequence %5-%15 Analog Motor Protection Electronic Relay
Assymetry
%5-%15
Operational Frequency
50/60Hz
Operational Voltage
230VAC
Product
Electronic Relay
Control
Analog
Type
Motor Protection
Mounting
Rail Mount
Contact
1CO
Phase Sequence
Phase Sequence
Current (Ie)
10A (rezistif)
Power Consumption
< 7 VA
Mechanical Life (Min Qty)
10000000
Electrical Life (Min Qty)
100000
Impulse Withstand Voltage (Uimp)
300V
Isolation Resistance
Min. 10 MOhm
Operating Temperature
0°C...+60°C
Protection Degree
IP20
Output Type
1 pcs changeover relay 10A/250V AC
Delay Time
0.1-10 sec. Scale
Voltage Assymetry
between %5-%15
Serial
RR3 Series
