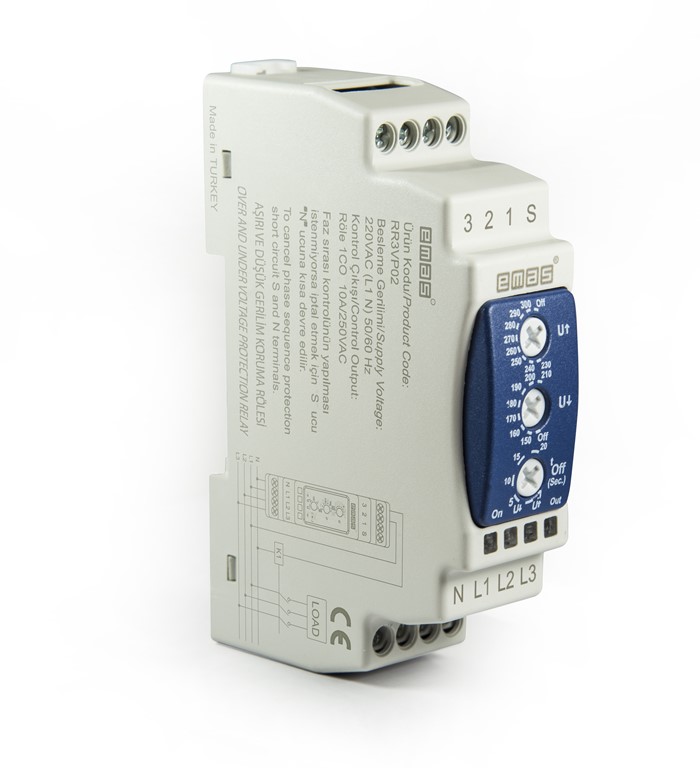

RR3 SeriesRail Mount 230VAC 1CO 10A (rezistif) Three Phase Analog Voltage Protection Electronic Relay
Product Code
RR3VP02
Certificate
Downloads
.jpg?format=webp)
Low Level Voltage Setting
Adjustable between150-210 V
Delay Off
Adjustable between 0.1-20 sec
Operational Frequency
50/60Hz
Operational Voltage
230VAC
Product
Electronic Relay
Control
Analog
Type
Voltage Protection
Mounting
Rail Mount
Contact
1CO
Phase Number
Three Phase
Current (Ie)
10A (rezistif)
Power Consumption
< 7 VA
Mechanical Life (Min Qty)
10000000
Electrical Life (Min Qty)
100000
Impulse Withstand Voltage (Uimp)
300V
Isolation Resistance
Min. 10 MOhm
Operating Temperature
-5°C...+55°C
Protection Degree
IP20
Output Type
1 pcs changeover relay 10A/250V AC
High Level Voltage Setting
Adjustable between 240-300 V
Hysterisis
5V
Serial
RR3 Series
