Product Details



RZ1 Series 8 Pins 230VAC 1CO 5A (rezistif) Digital Counter Electronic Relay RZ1 Series 8 Pins 230VAC 1CO 5A (rezistif) Digital Counter Electronic Relay

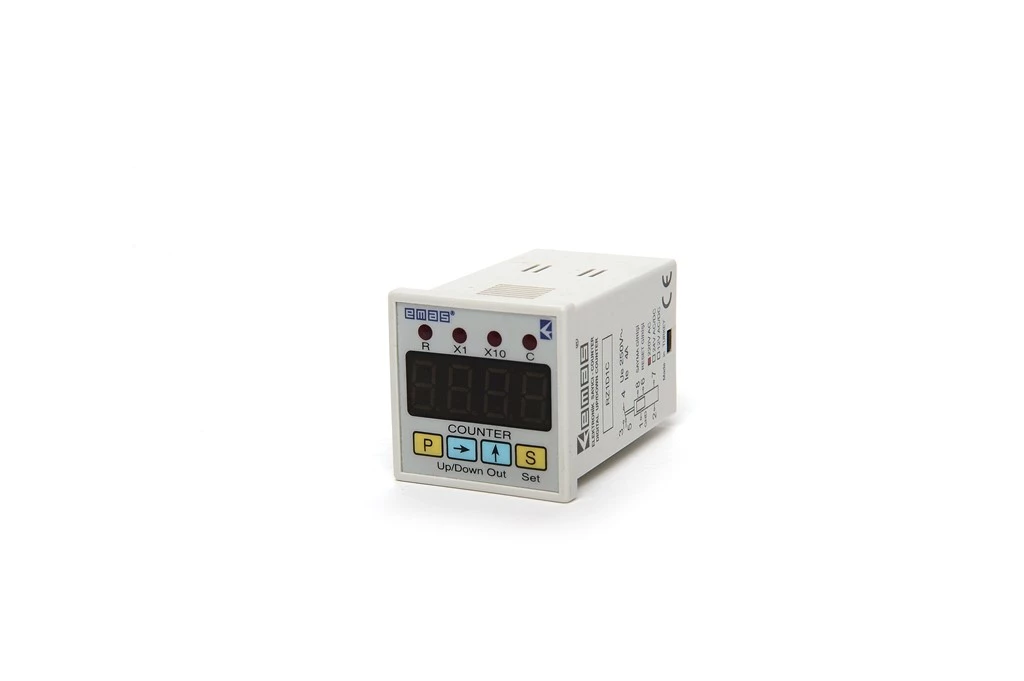

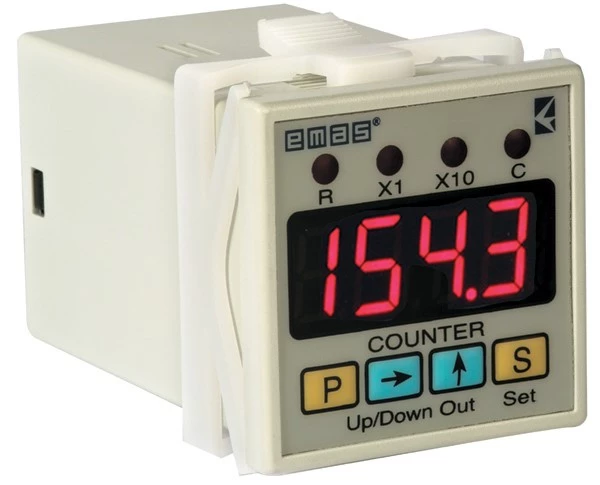

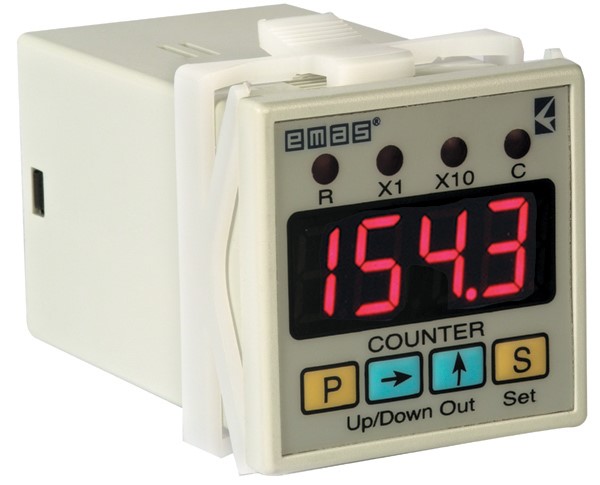

RZ1 Series 8 Pins 230VAC 1CO 5A (rezistif) Digital Counter Electronic Relay

Product Code
RZ1D1C-5
Certificate
CE UKCA
Downloads
  • Compact design
  • Fast and silent switching
  • Long life
  • Fingerproof design
RZ1 Series 8 Pins 230VAC 1CO 5A (rezistif) Digital Counter Electronic Relay
RZ1 Series 8 Pins 230VAC 1CO 5A (rezistif) Digital Counter Electronic Relay
Switching Capacity
6000/saat
Connection Type
8 Pins
Operating Current
0.01A
Operational Frequency
50 Hz
Operational Voltage
230VAC
Product
Electronic Relay
Control
Digital
Type
Counter
Contact
1CO
Current (Ie)
5A (rezistif)
Power Consumption
1.2W
Mechanical Life (Min Qty)
10000000
Electrical Life (Min Qty)
100000
Operating Temperature
-5°C...+55°C
Protection Degree
IP30
Contact Material
AgNi
Maximum Contact Power
1500 VA
Number of Contact
1 changeover
Max. Reset Time
≤100ms
Voltage Interval
(0,85-1.1)*Ue
Indicator
7 Segment Display
Number of Digits
4
Serial
RZ1 Series
